Overview

Enables fast, flexible PC switching for up to 4 connected computers. It features automatic wake-up from standby and can be controlled via the front panel, included IR remote control or keyboard hotkeys. Plug and play support for windows, macOS and linux.

Features

• Supports ultra-wide screen resolution up to 4K @ 60Hz, 2K @ 60Hz/144Hz
• HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
• Video fast switching and keyboard/mouse seamless switching
• Hot pluggable disconnect/connect of devices at any time
• Zero latency design
• Integrated USB 3.0 ports for sharing devices with data transfer up to 5Gbps.

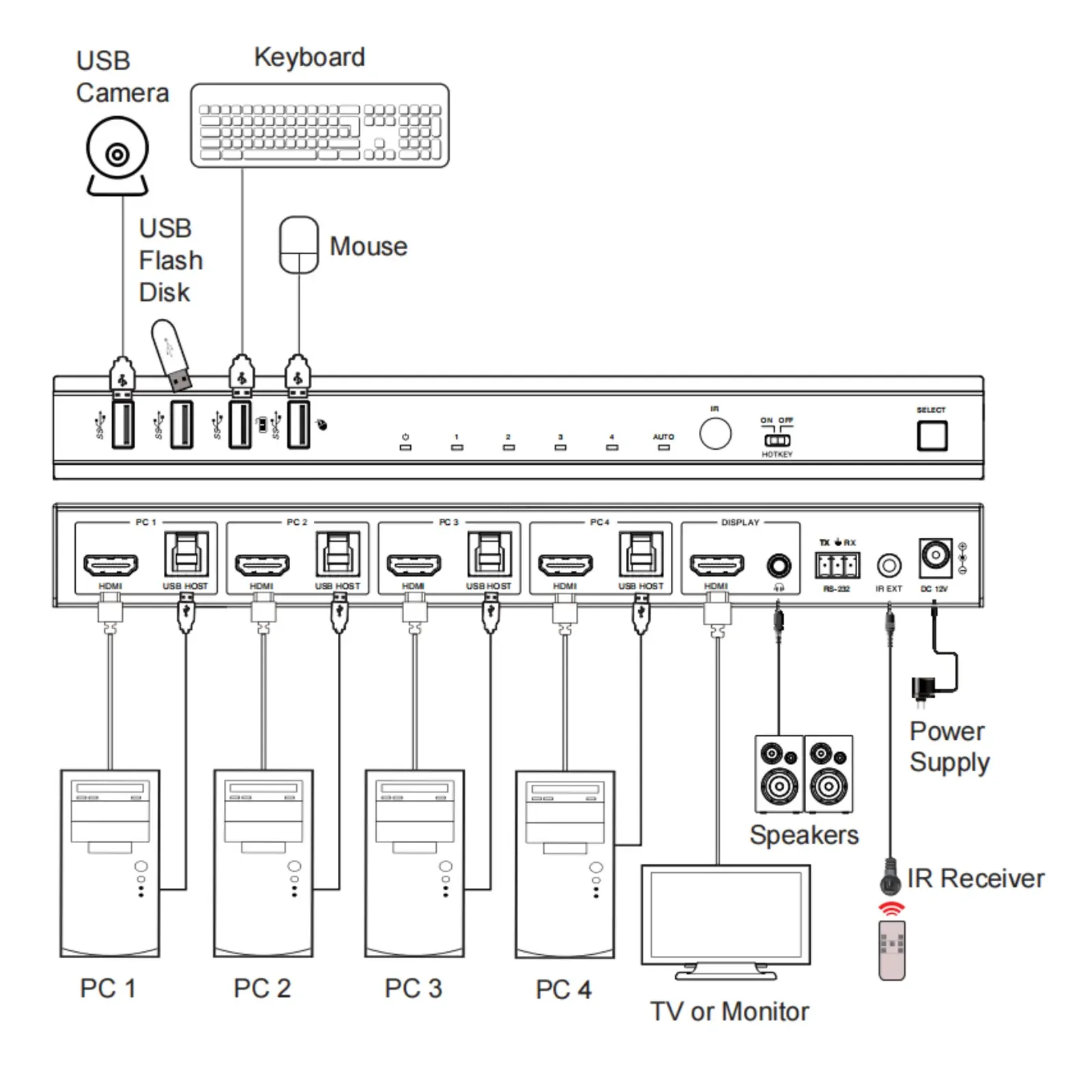

Connection Example:

 Specifications

Technical

• HDMI™ Compliance HDMI™: 2.0
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 18Gbps
• Audio Latency: No Latency
• Video Latency: No Latency
• Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz
• IR Level: 5Vp-p
• IR Frequency: Fixed frequency 38KHz
• Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Colour Depth: 8/10/12bit
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• CEC: Supported
• ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Audio Formats

• HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• L/R OUT: PCM 2.0CH

Connection

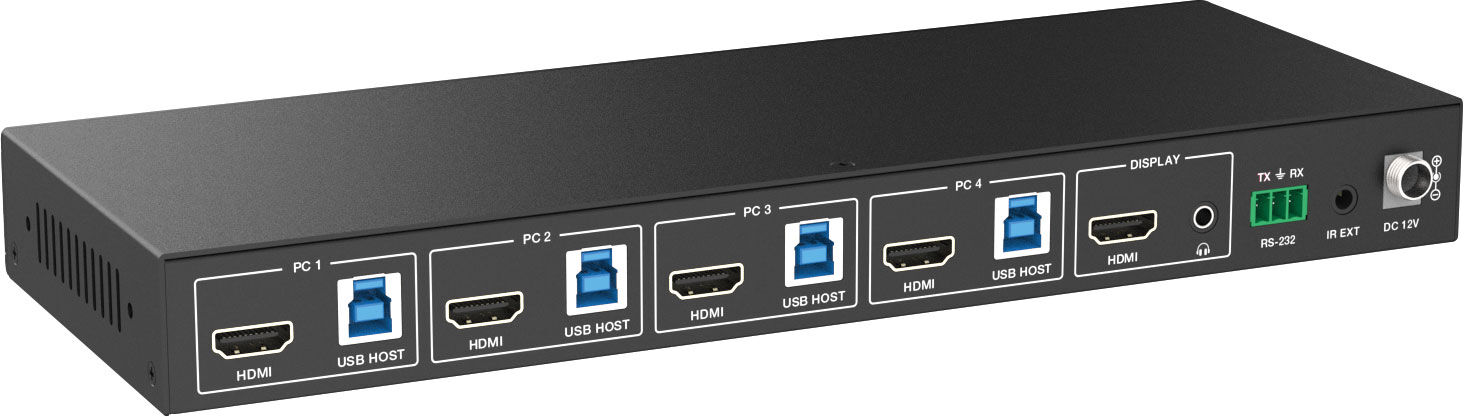

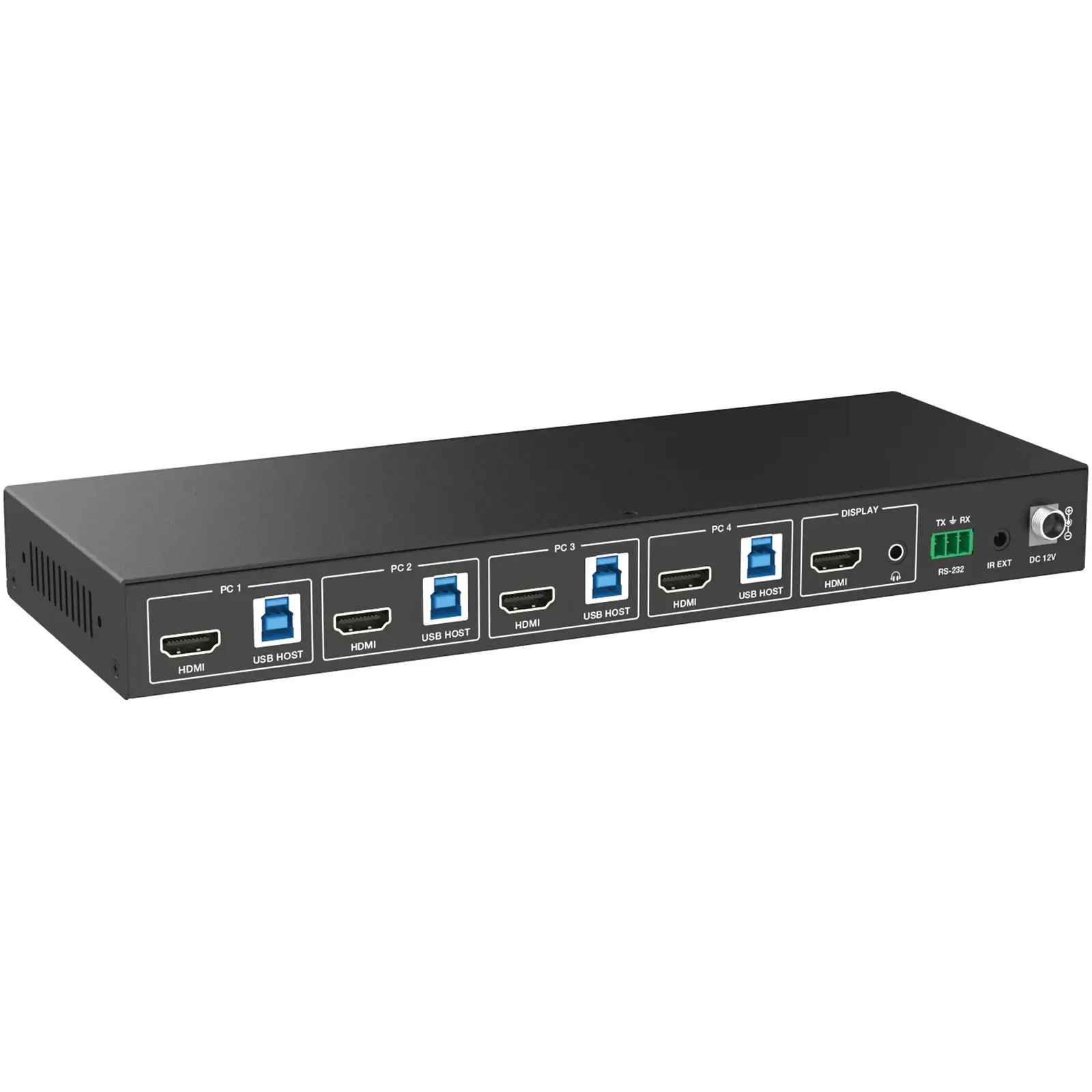

• Input ports 4 x HDMI input [Type A, 19-pin female]
• Output ports 1 x HDMI output [Type A, 19-pin female], 1 x L/R audio output [3.5mm Stereo Jack]

Control Ports

• 1 x RS-232 [3pin-3.81mm phoenix connector]
• 1 x IR EXT [3.5mm Stereo Jack]
• 4 x USB HOST [USB Type B]
• 4 x USB DEVICES [USB Type A]

Mechanical

• Housing: Metal Enclosure
• Colour: Black
• Dimensions: 270W x 100D x 30Hmm
• Weight: 756g
• Power Supply Input: AC 100 - 240V 50/60Hz
• Output: DC 12V/1A
• Power Consumption Typical value: 5.28W
• Standby mode: 0.72W
• Operating Temperature: 0 - 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 10% ~ 90% RH (non-condensing)

Recommended HDMI™ Cable

• Video Resolution: 4K60 4:4:4, HDMI Cable Length (HDMI IN / OUT) 5m
• Video Resolution: 1080P 4:4:4 HDMI Cable Length (HDMI IN / OUT) 10m
• The use of “Premium High Speed HDMI” cable is highly recommended.

  *Specifications are subject to change without notice.
