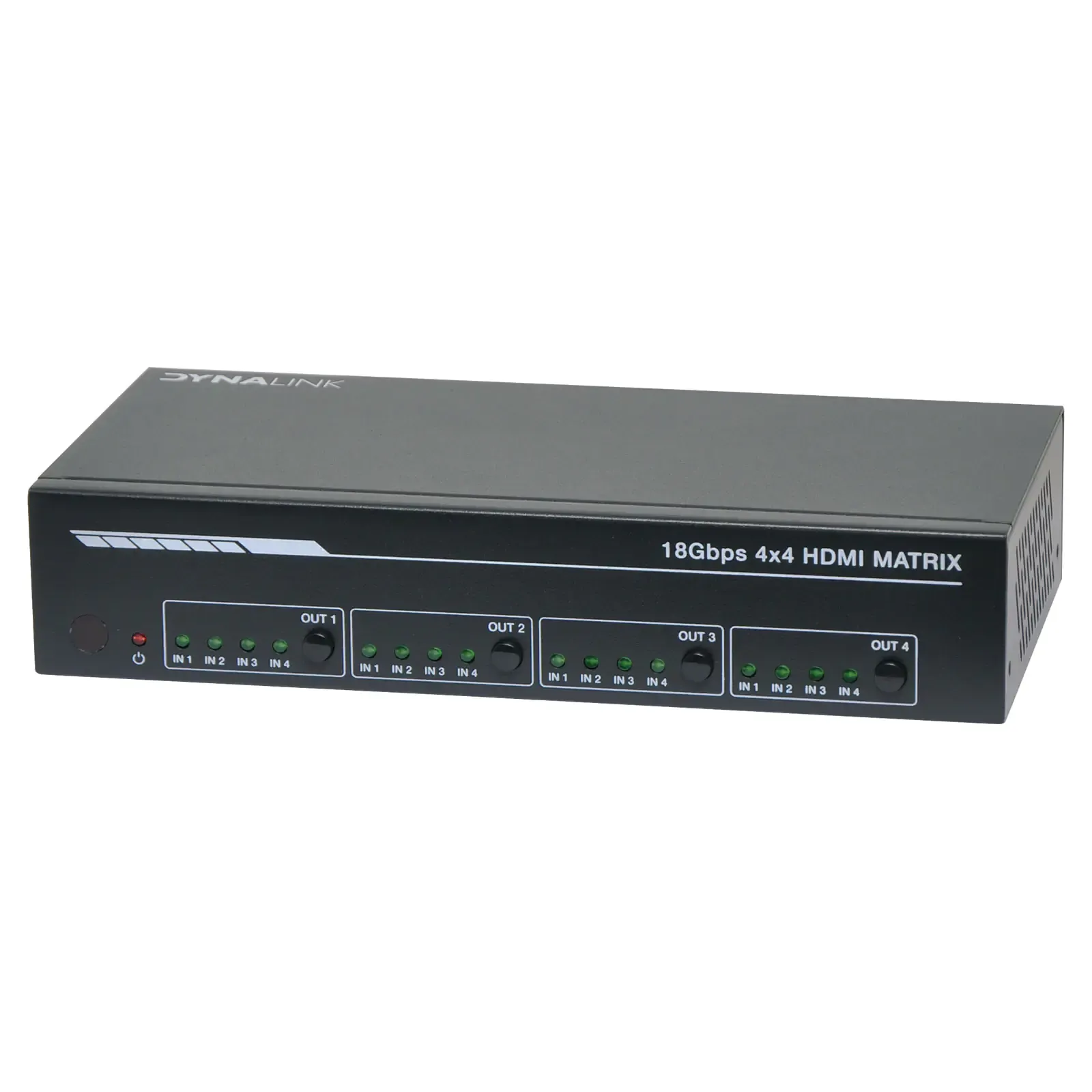

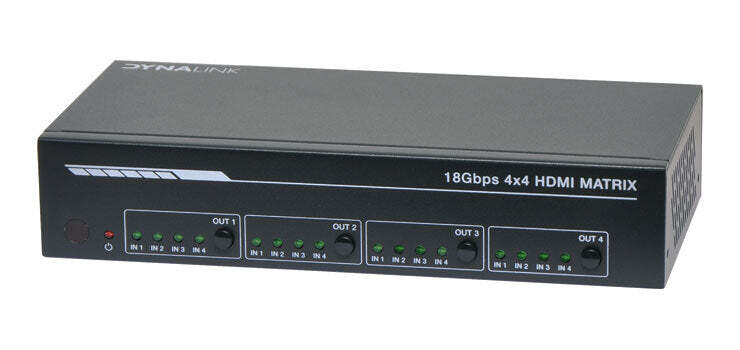

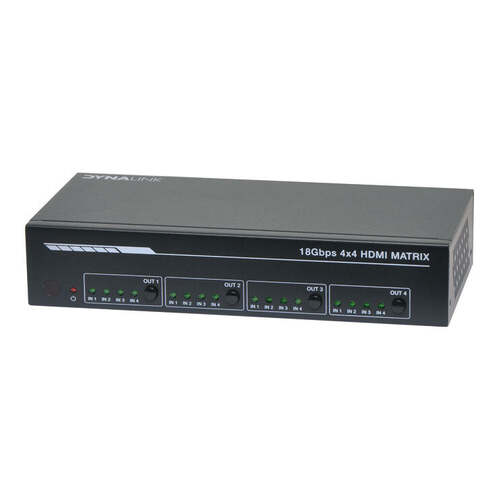

Dynalink 4 x 4 HDMI 2.0 18Gbps Matrix Switcher IR Remote 3Pin Phoenix Connector

This 4×4 HDMI 2.0 Matrix Switcher allows any of four HDMI sources to be independently routed to four HDMI displays. Each input and output supports up to 4K@60Hz 4:4:4 resolution with HDCP 2.2, ensuring compatibility with modern UHD devices. The switcher includes output scaling to 1080p, de‑embedded audio, ARC support and multiple control options including front panel, RS‑232, IR remote and TCP/IP. With an 18Gbps bandwidth and advanced EDID management, it is suitable for home AV setups, commercial installations and multi‑screen environments.

Key Features

• HDMI 2.0 & HDCP 2.2 Support Compatible with HDMI 2.0, HDCP 2.2 / 1.4 and DVI 1.0 devices.

• 4×4 Matrix Switching Route any of four HDMI sources to any of four HDMI displays independently.

• 4K60 4:4:4 Resolution Supports 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:0, 4K30Hz 4:4:4, 1080p and legacy formats.

• Output Scaling Each output can be individually scaled from 4K to 1080p.

• De‑Embedded Audio Provides analog L/R and coaxial audio outputs for each HDMI output.

• ARC Support Audio Return Channel available to coaxial output only.

• Advanced EDID Management Ensures optimal communication between sources and displays.

• Multiple Control Options Control via front panel, RS‑232, IR remote or TCP/IP (Web GUI).

• Compact Metal Housing Durable enclosure suitable for professional or home installations.

Package Contents

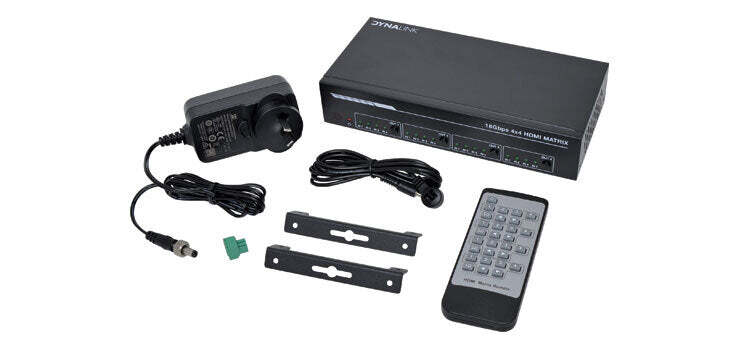

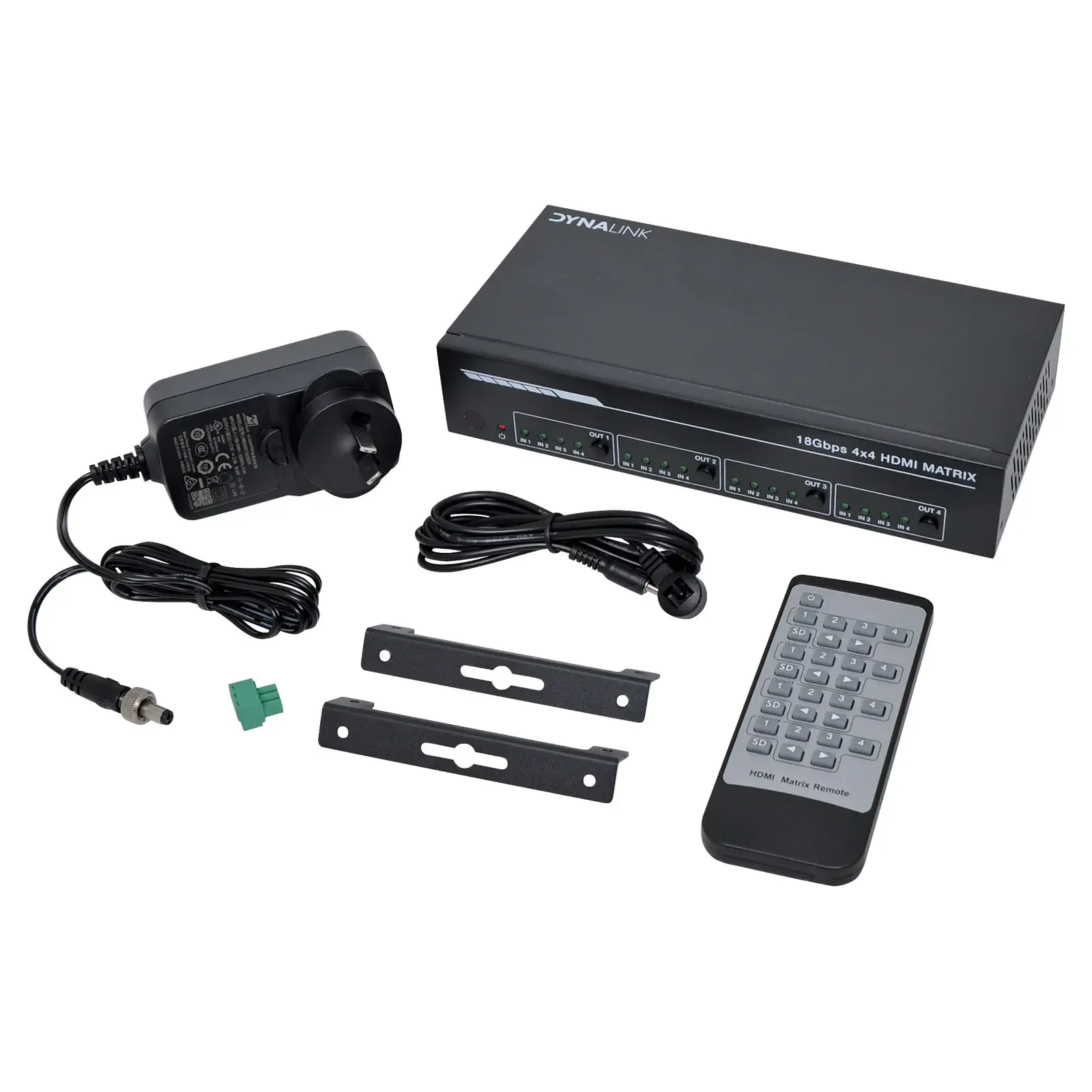

• 1 × 4×4 HDMI 2.0 18Gbps Matrix Switcher

• 1 × 12V/2.5A Locking Power Adapter

• 1 × IR Remote (CR2025 battery included)

• 2 × Mounting Ears

• 1 × 38kHz IR Receiver Cable (1.5m)

• 1 × 3‑Pin Phoenix Connector

• 1 × User Manual

Specifications

Mechanical

• Housing: Metal enclosure

• Colour: Black

• Dimensions: 220 × 105 × 44 mm

• Weight: 792g

• Power Supply: AC100–240V 50/60Hz → DC12V/2.5A (locking connector)

• Power Consumption: 10W max, 1.56W standby

• Operating Temperature: 0°C to 40°C

• Storage Temperature: –20°C to 60°C

• Humidity: 20–90% RH (non‑condensing)

Technical

• HDMI Compliance: HDMI 2.0

• HDCP Compliance: HDCP 2.2 / 1.4

• Bandwidth: 18Gbps

• Supported Resolutions:

  • 4K60 4:4:4

  • 4K60 4:2:0

  • 4K30 4:4:4

  • 1080p, 1080i, 720p, 480p, 480i

  • All HDMI 3D formats

  • PC resolutions including 1920×1200

• Output Scaling: 4K → 1080p

• 3D Support: Yes

• Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0

• Colour Depth:

  • 8/10/12‑bit (1080p, 4K30, 4K60 4:2:0)

  • 8‑bit (4K60 4:4:4)

• HDMI Audio Formats: PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS‑HD MA, DSD

• Coaxial Audio Formats: PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1

• L/R Audio: PCM 2.0

• HDR Support: HDR10, HDR10+, Dolby Vision, HLG

• ESD Protection: ±8kV (air), ±4kV (contact)

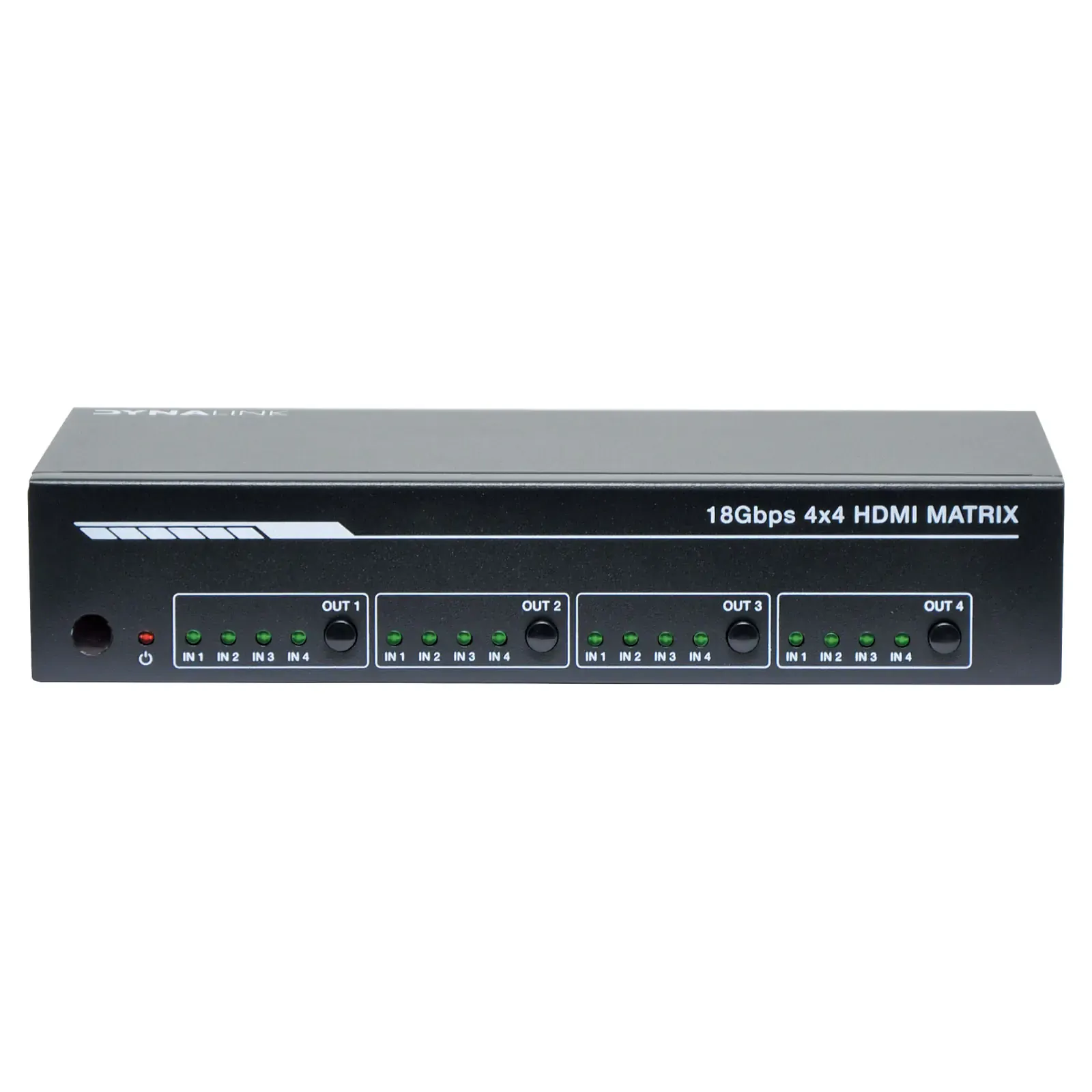

Connections

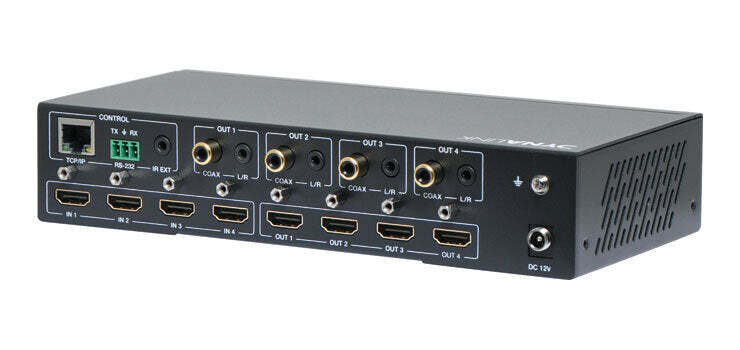

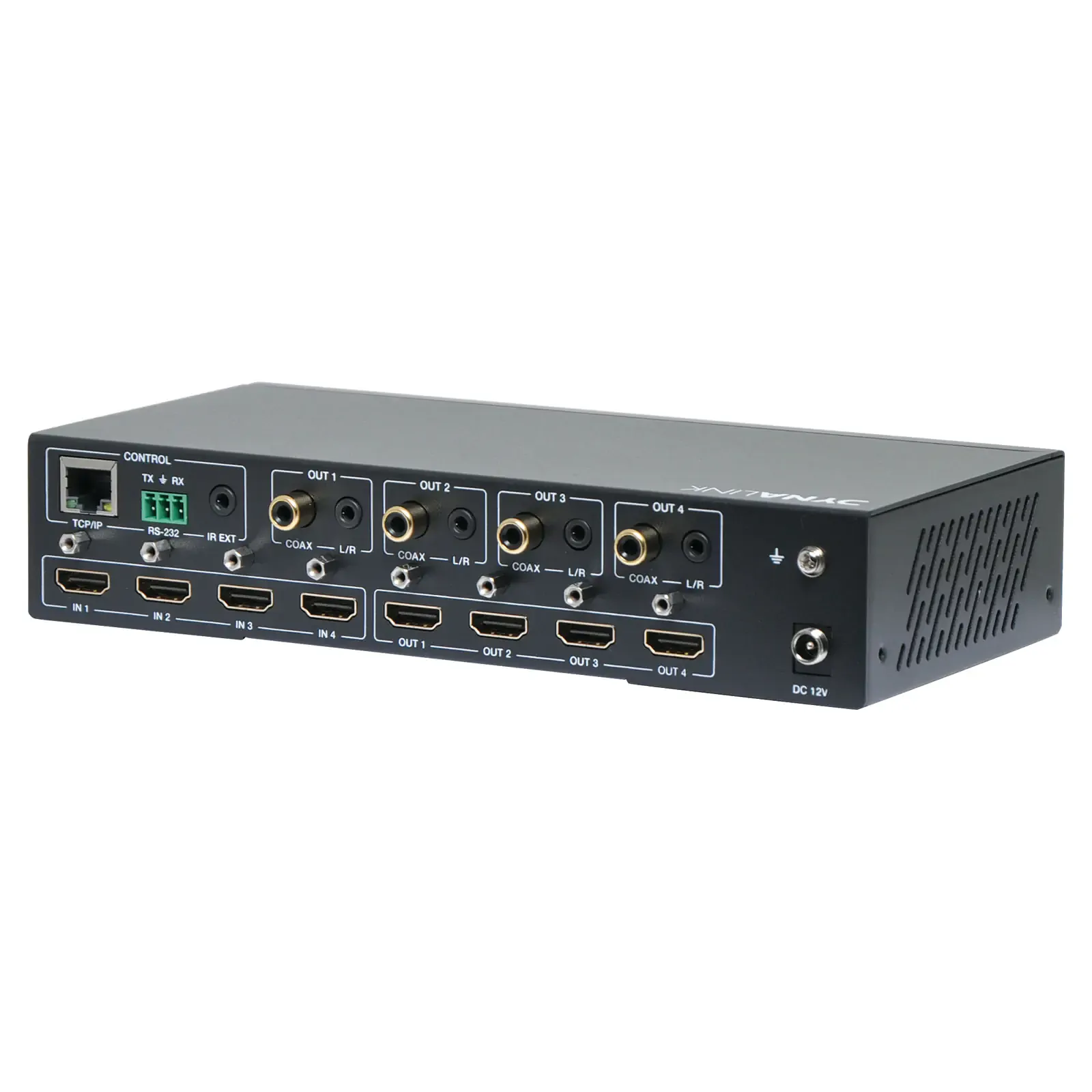

• Inputs: 4 × HDMI Type‑A (19‑pin)

• Outputs:

  • 4 × HDMI Type‑A

  • 4 × L/R audio (3.5mm)

  • 4 × Coaxial audio (RCA)

• Control Ports:

  • 1 × TCP/IP (RJ45)

  • 1 × RS‑232 (3‑pin Phoenix)

  • 1 × IR EXT (3.5mm)

Recommended Cable Lengths

• 4K60: up to 3m

• 4K30: up to 10m

• 1080p60: up to 15m
