Overview

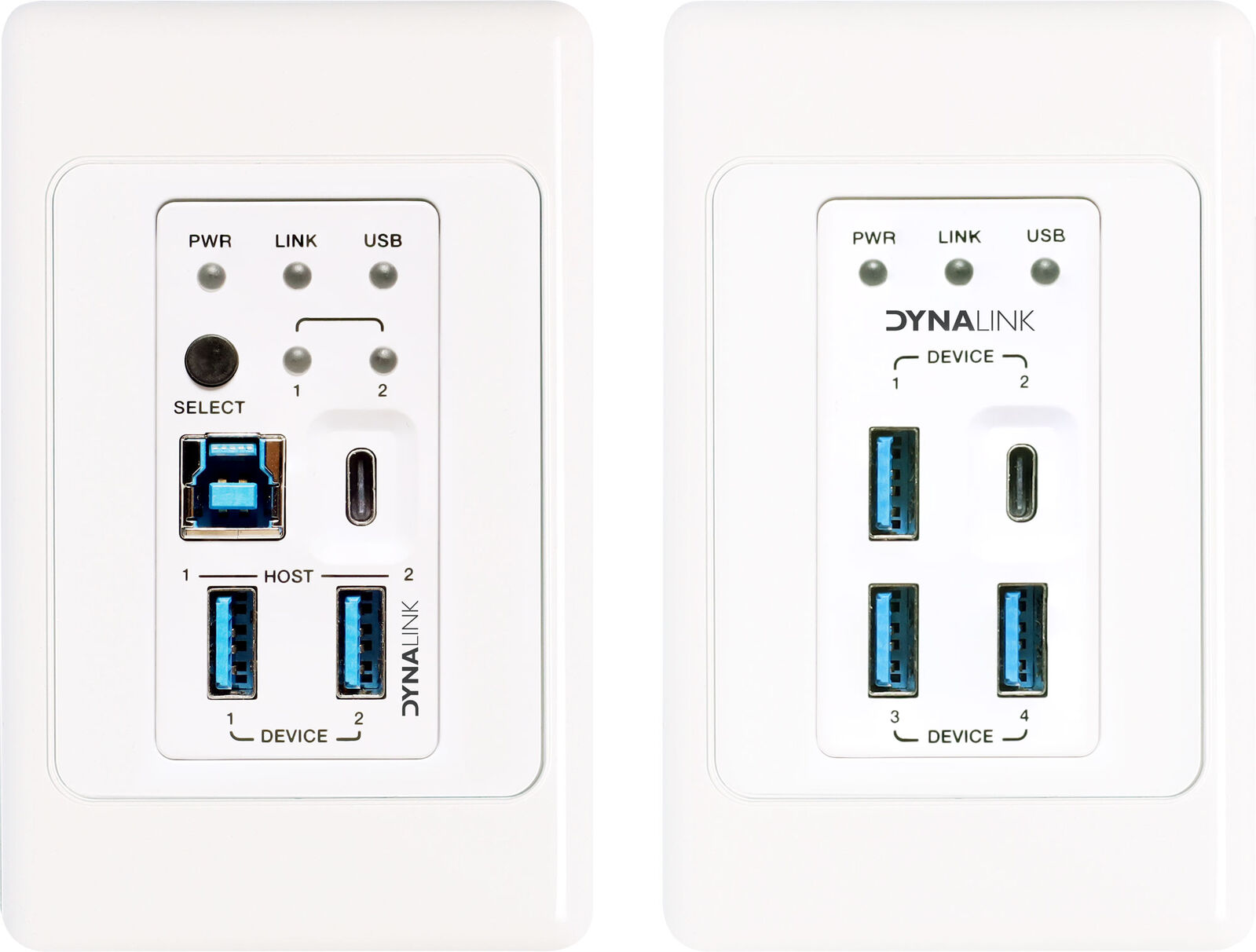

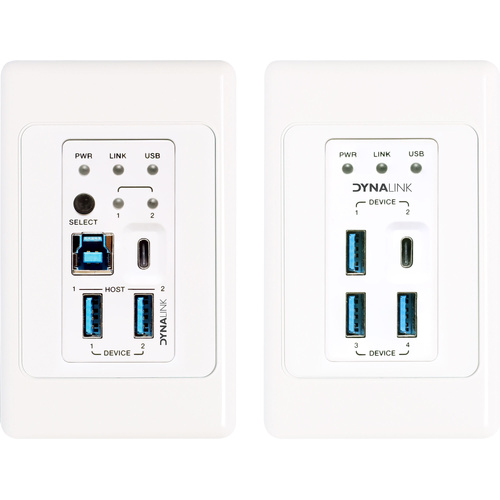

This set of US 1-Gang standard decora wall plates can extend USB 3.2 Gen 1 5Gbps signal to a distance up to 100m/328ft via a single CAT6a cable. The transmitter features one USB-C and one USB-B selectable input ports, two USB-A loop out ports. The receiver features one USB-C and three USB-A device ports. Bi-directional 24V PoC (Power over Cable) function allows users to only supply power to either the transmitter or the receiver. The product can be widely used for long distance USB signal transmission between USB sources and devices like webcams, PTZ cameras, keyboards, mouse devices, USB microphones, flash sticks, printers, scanners, touch panel displays and other USB devices.

Features

• US 1-Gang standard decora wall plate
• Extension of USB 3.2 Gen 1 up to 100m over CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer
• TX features 1x USB-B and 1x USB-C selectable input ports
• Support auto switching and manual switching modes
• Support RS-232 pass-through and API control
• Support firmware upgrade via USB-C service port
• Support FSYNC GPIO pass-through for industry camera use
• RX features 1x USB-C and 3x USB-A output ports (2x 5V@1A and 2x 5V@1.5A)
• Plug-and-play with no drivers or software download required
• Support bi-directional 24V PoC (Power over Cable). When TX or RX gets power, the other side does not need an external power supply

 Specifications

Technical:

• USB Protocol: USB 3.2 Gen 1
• Transmission Rate: Up to 5Gbps
• Transmission Distance: 100m via CAT6a (F/FTP) cable, 1.5m via USB cable
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connections (Transmitter):

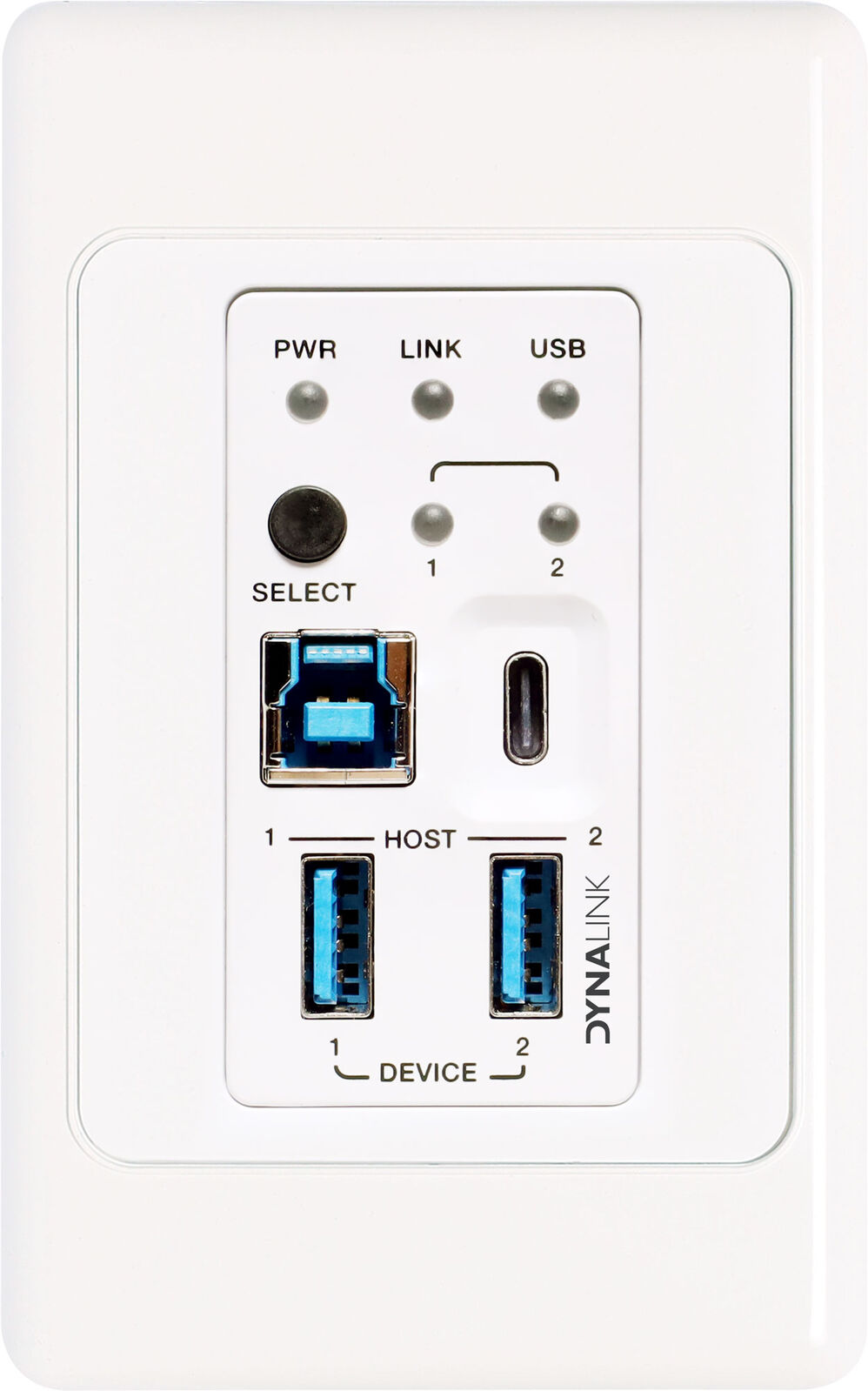

• Input: 1 x HOST 1 [USB Type C, 24-pin female], 1 x HOST 2 [USB Type B, 9-pin female]

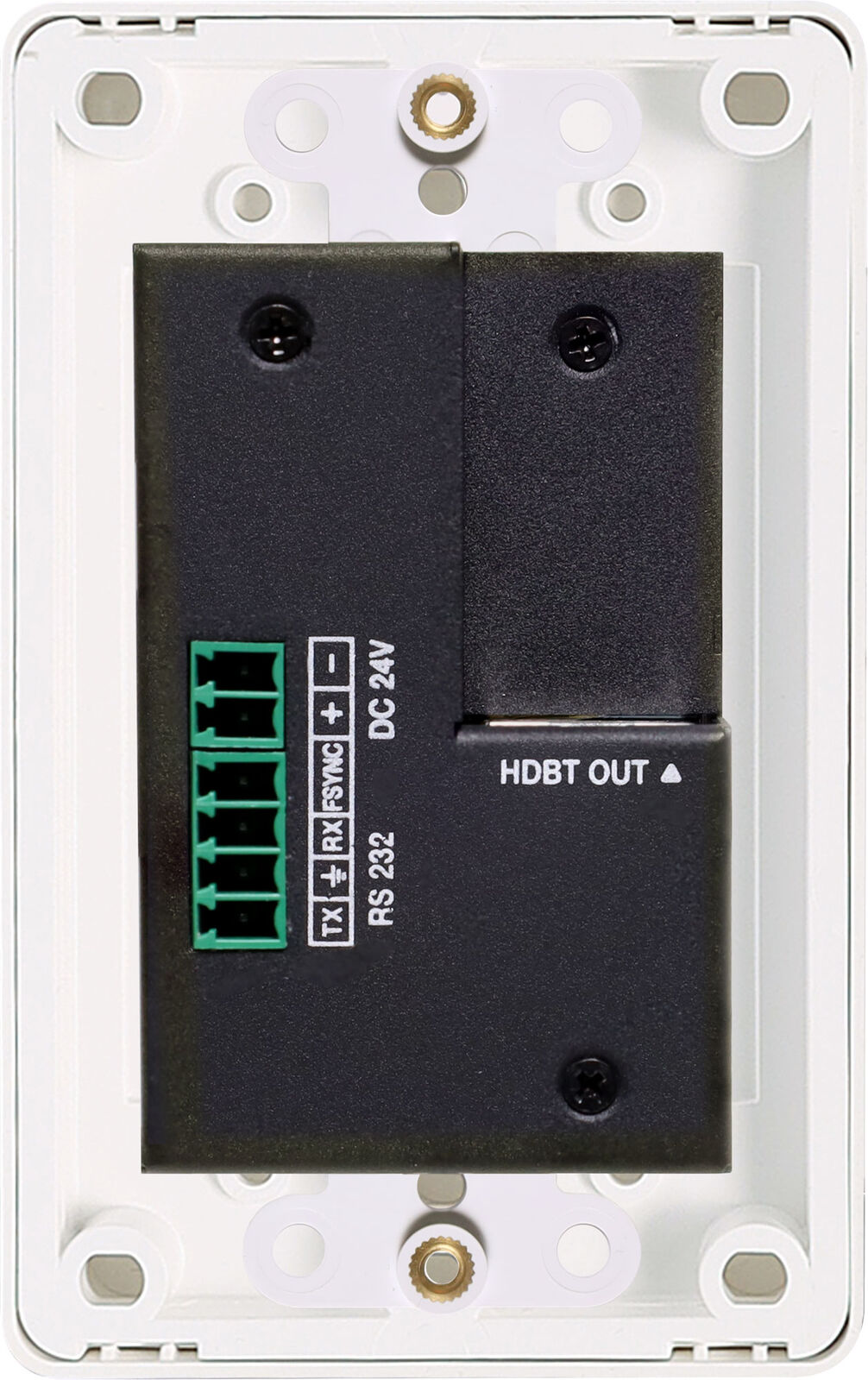

• Output: 2 x USB-A DEVICE [USB Type A, 9-pin female], 1 x HDBT-USB3 [RJ45 connector, 24V PoC]
• Control: 1 x RS-232 [3pin-3.5mm phoenix connector], 1 x FSYNC [1pin-3.5mm phoenix connector], 1 x SERVICE [USB Type C, firmware update port]

Connections (Receiver):

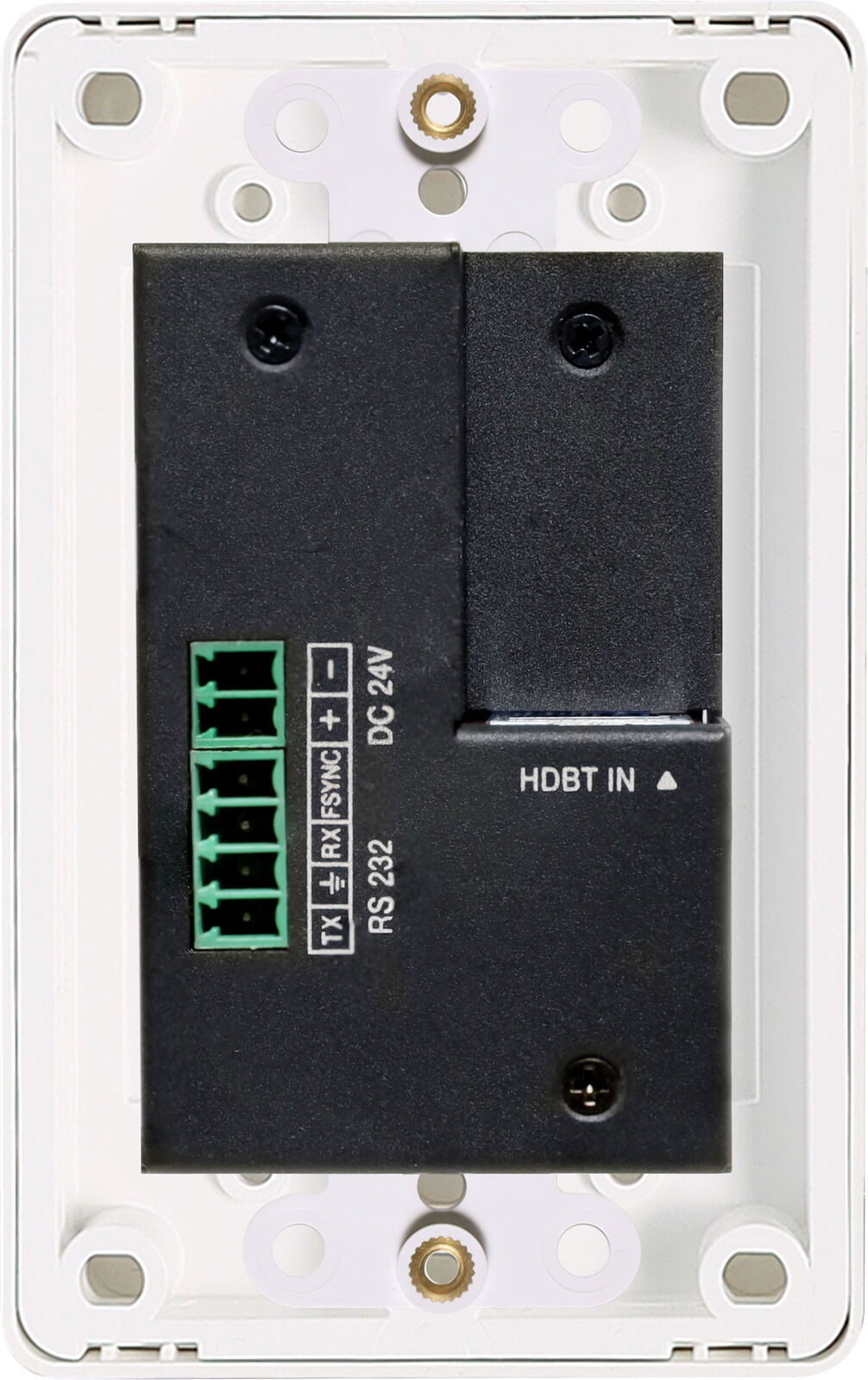

• Input: 1 x HDBT-USB3 [RJ45 connector, 24V PoC]

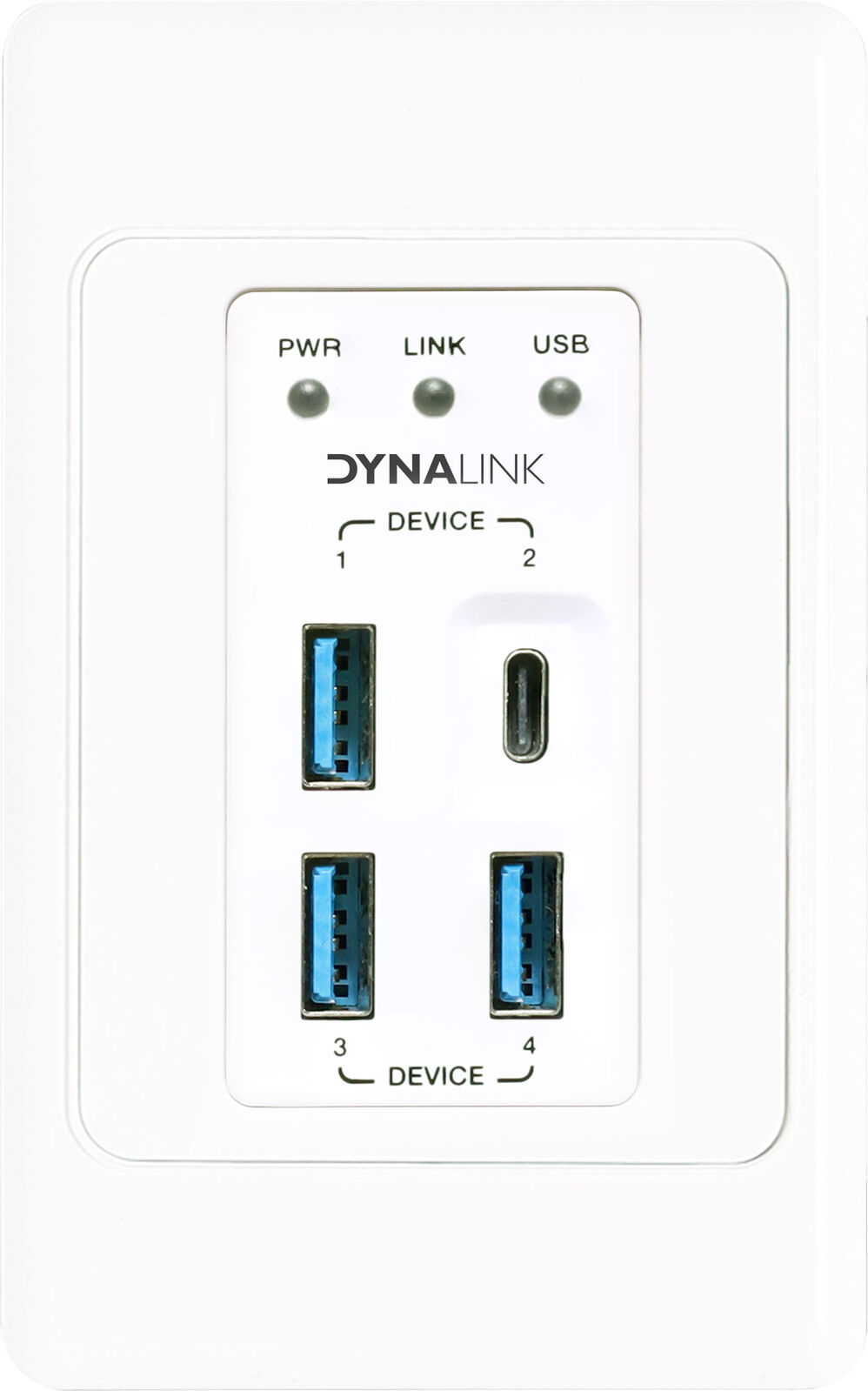

• Output: 3 x USB-A DEVICE [USB Type A, 9-pin female], 1 x USB-C DEVICE [USB Type C, 24-pin female]
• Control: 1 x RS-232 [3pin-3.5mm phoenix connector], 1 x FSYNC [1pin-3.5mm phoenix connector], 1 x SERVICE [USB Type C, firmware update port]

Mechanical:

• Housing: Plastic Front Panel + Metal Enclosure
• Colour: White + Black
• Dimensions: 45mm [W] x 42mm [D] x 103.5mm [H]
• Weight: Transmitter: 115g; Receiver: 115g
• Power Supply: Input: AC 100~240V 50/60Hz, Output: DC 24V/3.75A
• Power Consumption: 62W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)
