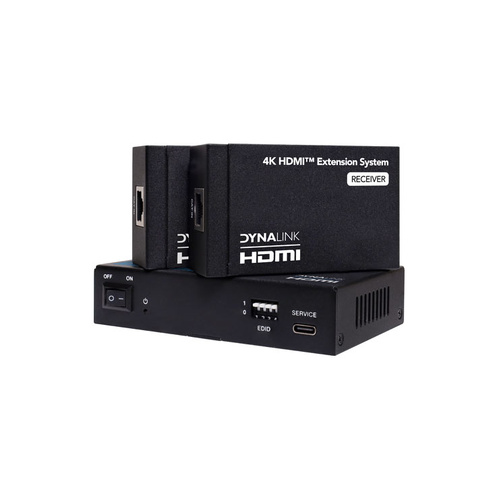

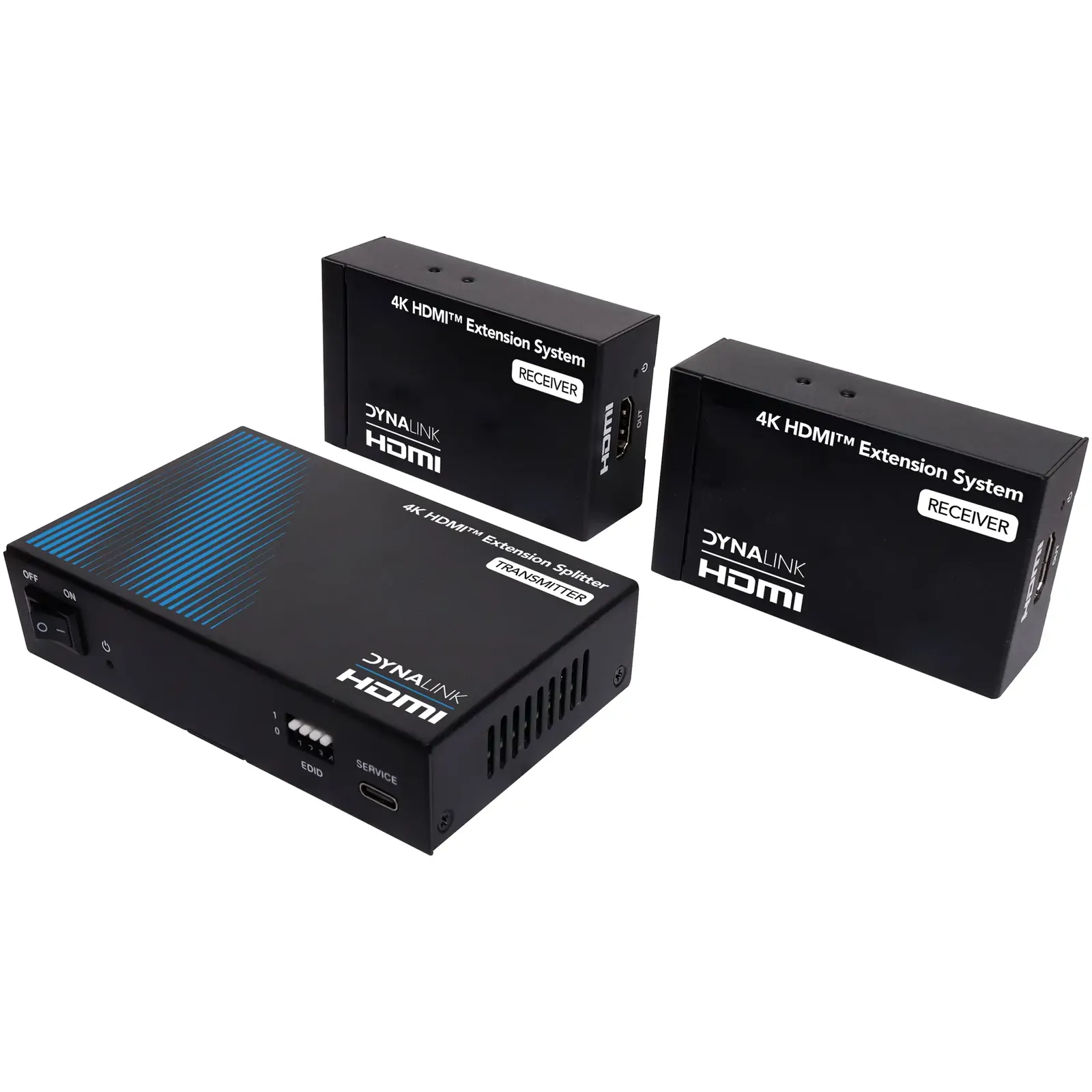

Overview

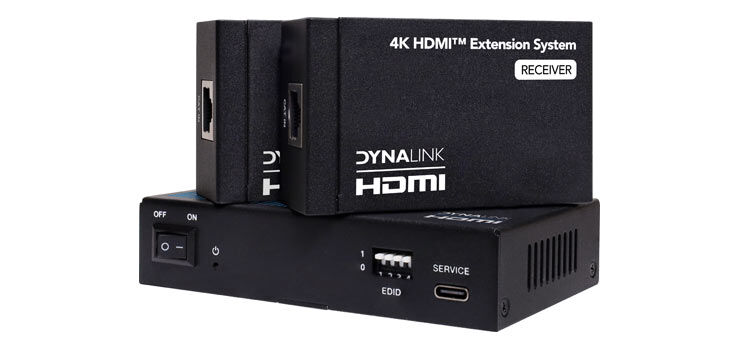

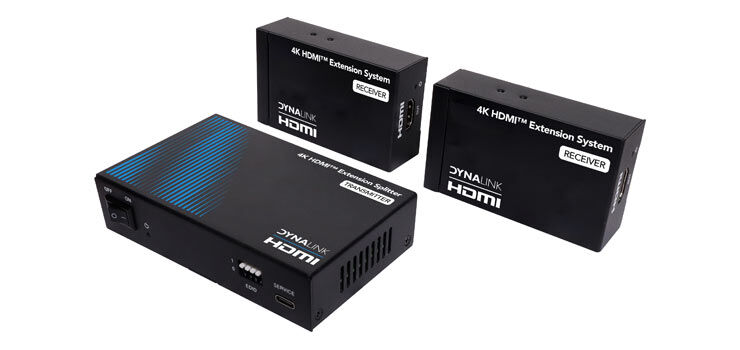

This HDMI 1x2 Splitter can distribute 1 HDMI source signal to any 2 display devices, supporting video resolution up to 4K@60Hz. It is designed with 1 HDMI input, 1 HDMI loop output and 2 CAT outputs. The HDMI signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, 60m for 4K@60Hz via a single CAT6 cable. It also supports advanced EDID management.

Features

• HDCP 2.2 compliant
• Video resolution is up to 4K@60Hz
• The transmission distance is up to 70m for 4K@30Hz, 60m for 4K@60Hz via a single CAT6 cable
• Support 1 HDMI input, 1 HDMI loop output and 2 CAT outputs.
• Support HDMI audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
• Support PoC function
• Advanced EDID management
• Compact design for easy and flexible installation

 Specifications

Technical:

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 18Gbps
• Video Resolution (Input & Output): 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60; 640x480@60, 1024x768@60, 1280x768@60, 1280x800@60, 1280x1024@60, 1360x768@60, 1440x900@60, 1680x1050@60, 1920x1200@60RB; 3840x2160@24/25/30/50/60; 4096x2160@24/25/30/50/60;
• Colour Depth: 8-bit,10-bit,12-bit(1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
• Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 YUV 4:2:0
• Audio Formats: HDMI Loop Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, Remote End: LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1
• HDR: HDR10, HDR10+, Dolby Vision, HLG
• Transmission Distance: 70m for 4K@30Hz via a single CAT6 cable, 60m for 4K@60Hz via a single CAT6 cable
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection (Transmitter):

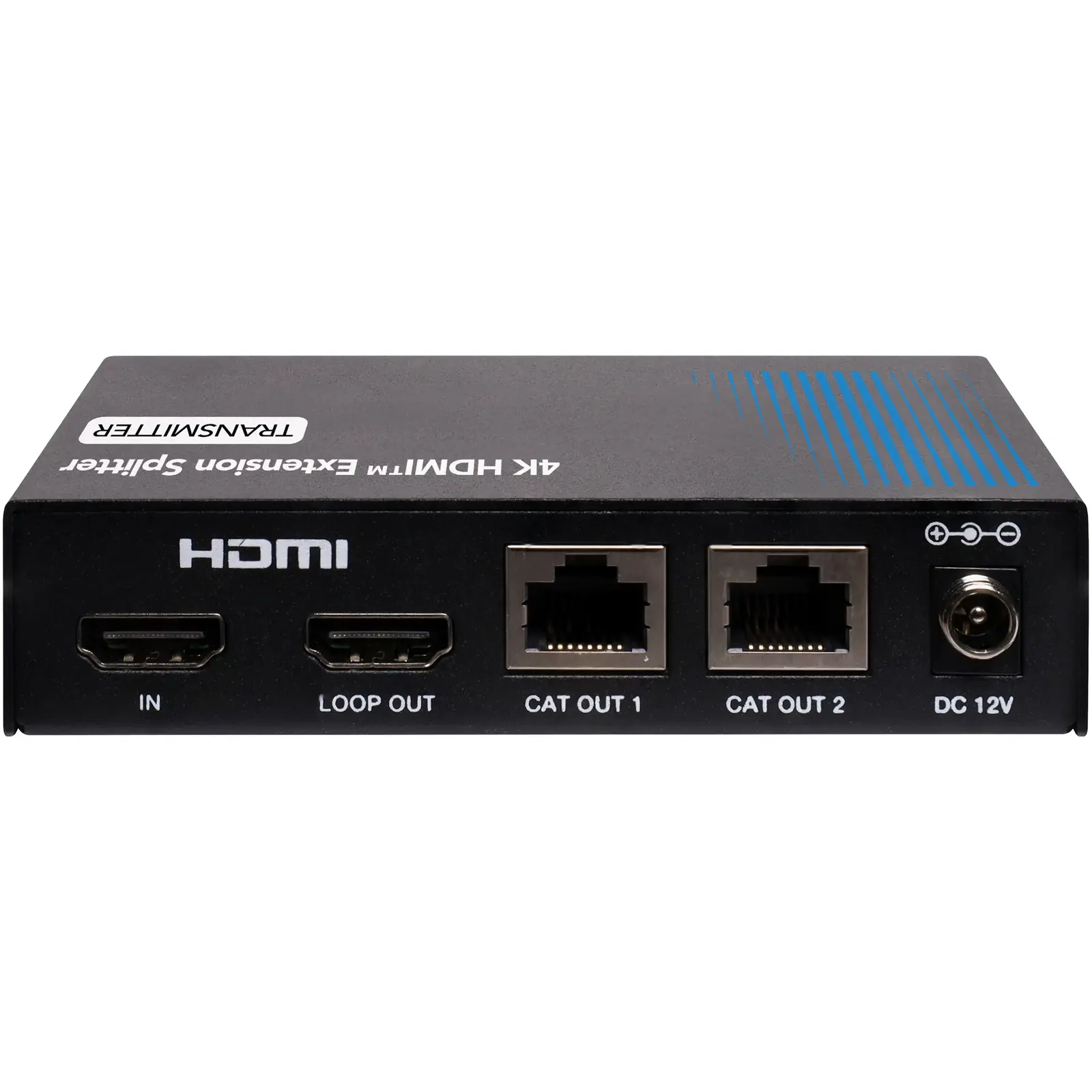

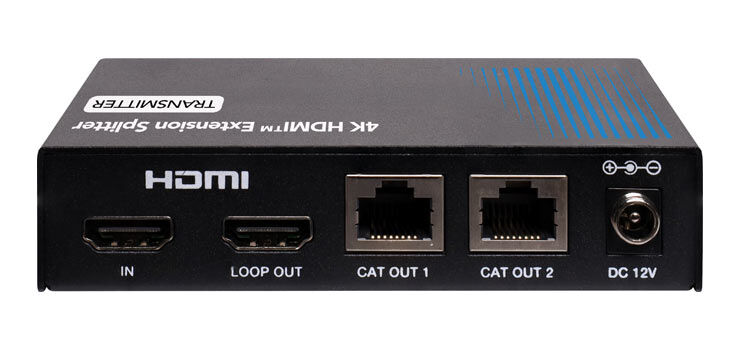

• Input: 1 x HDMI IN [HDMI type A, 19-pin female]
• Output: 1 x HDMI LOOP OUT [HDMI type A, 19-pin female], 2 x CAT OUT [RJ45]

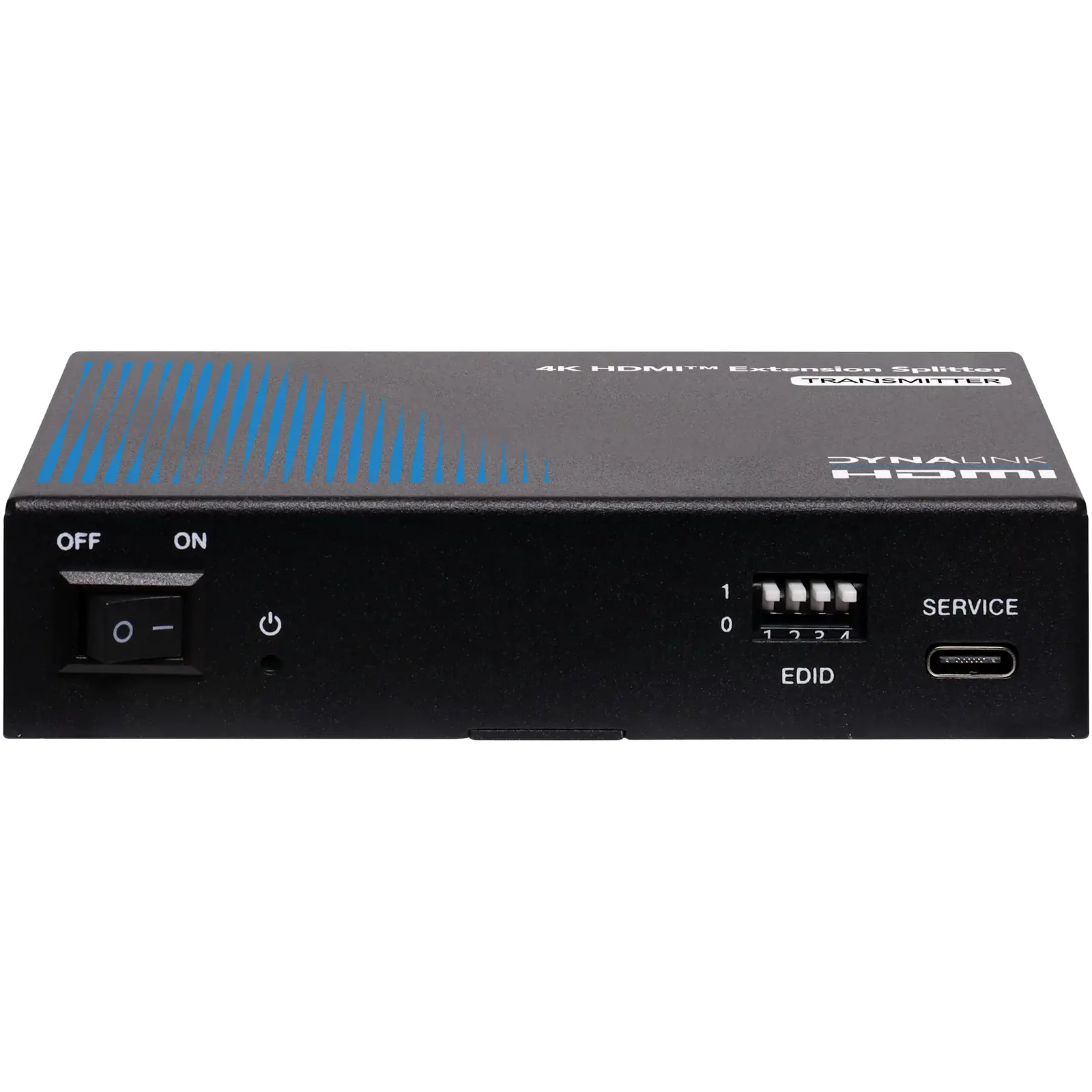

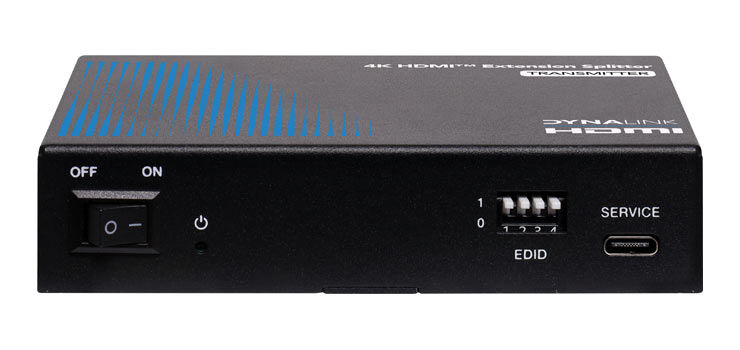

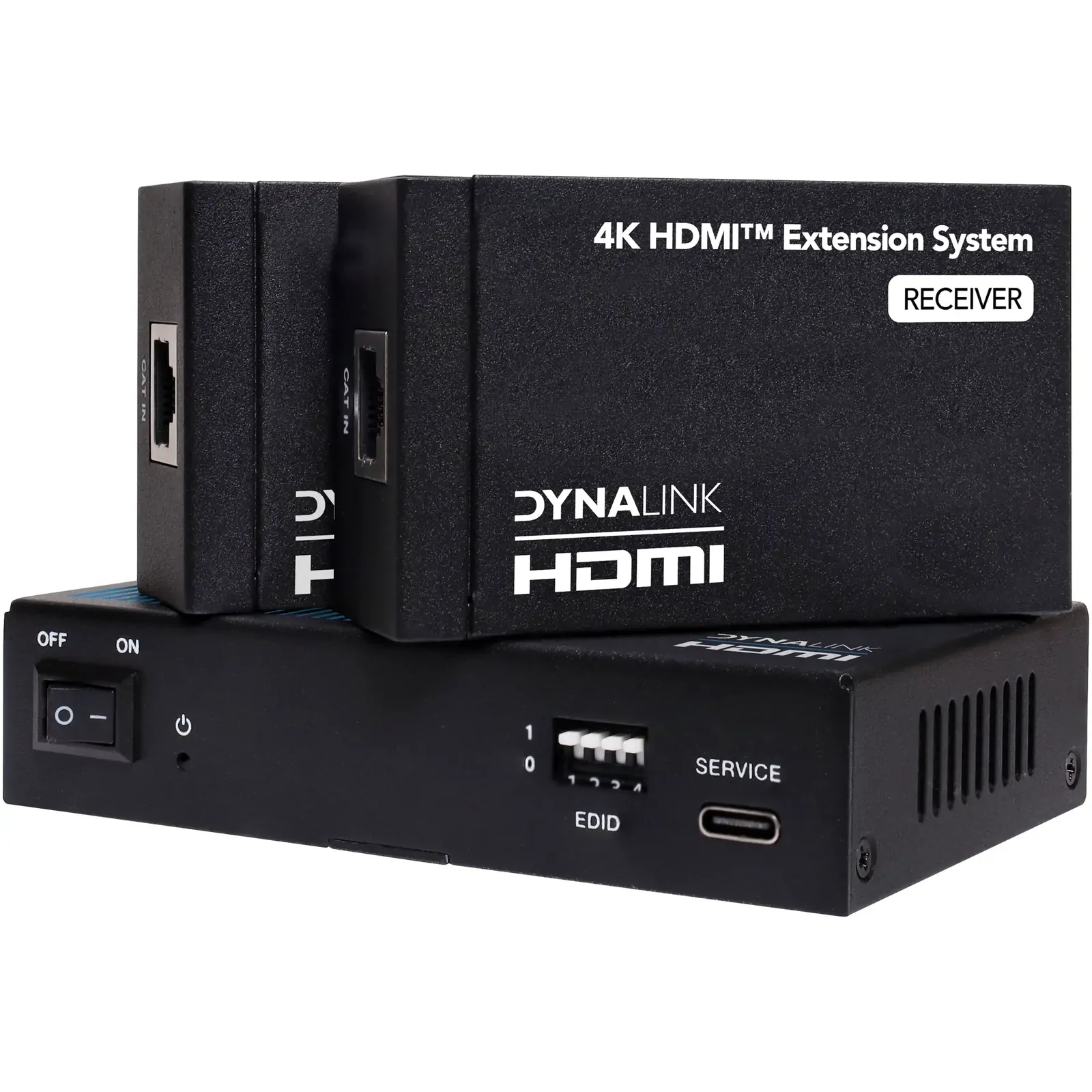

• Control: 1 x SERVICE [USB type C, update port]

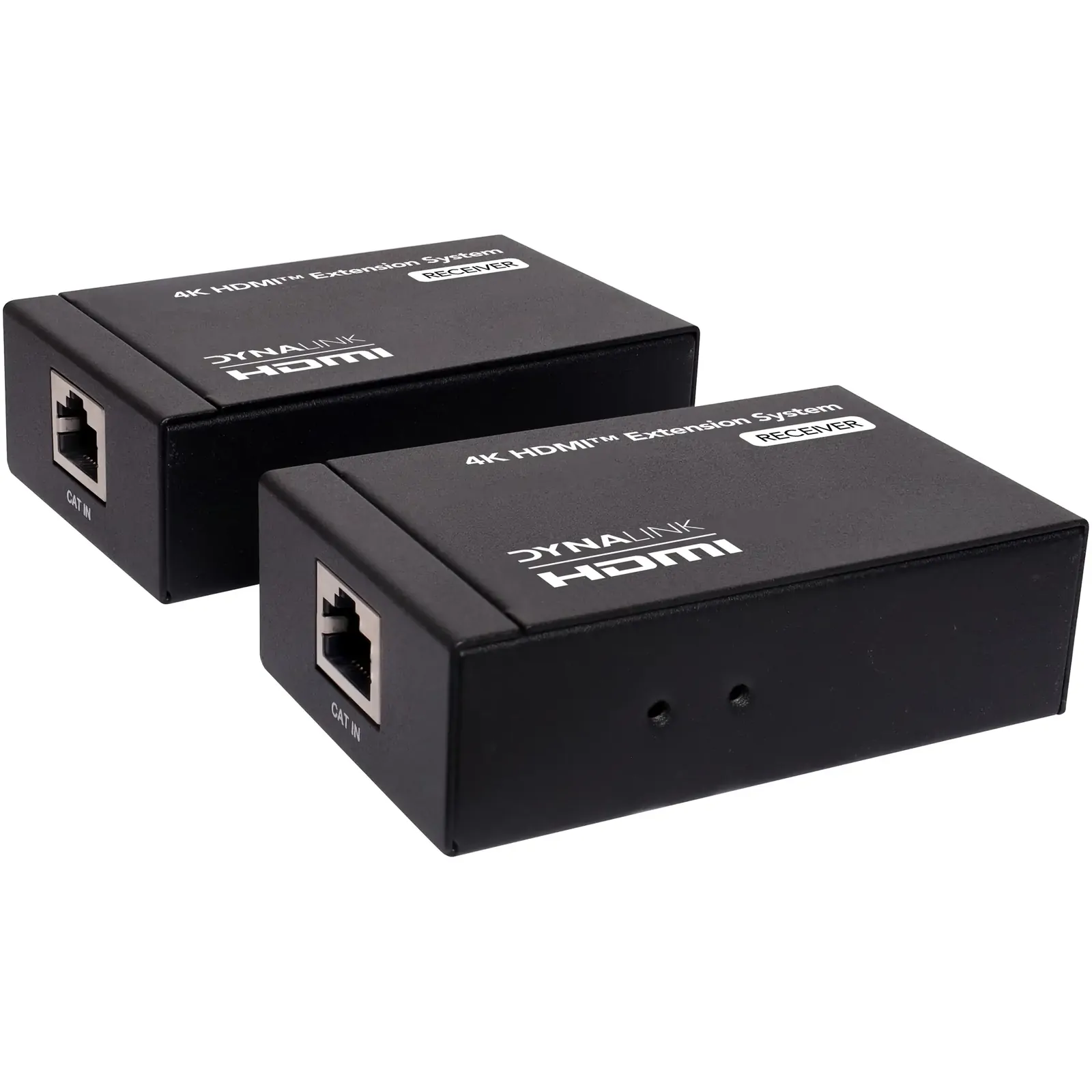

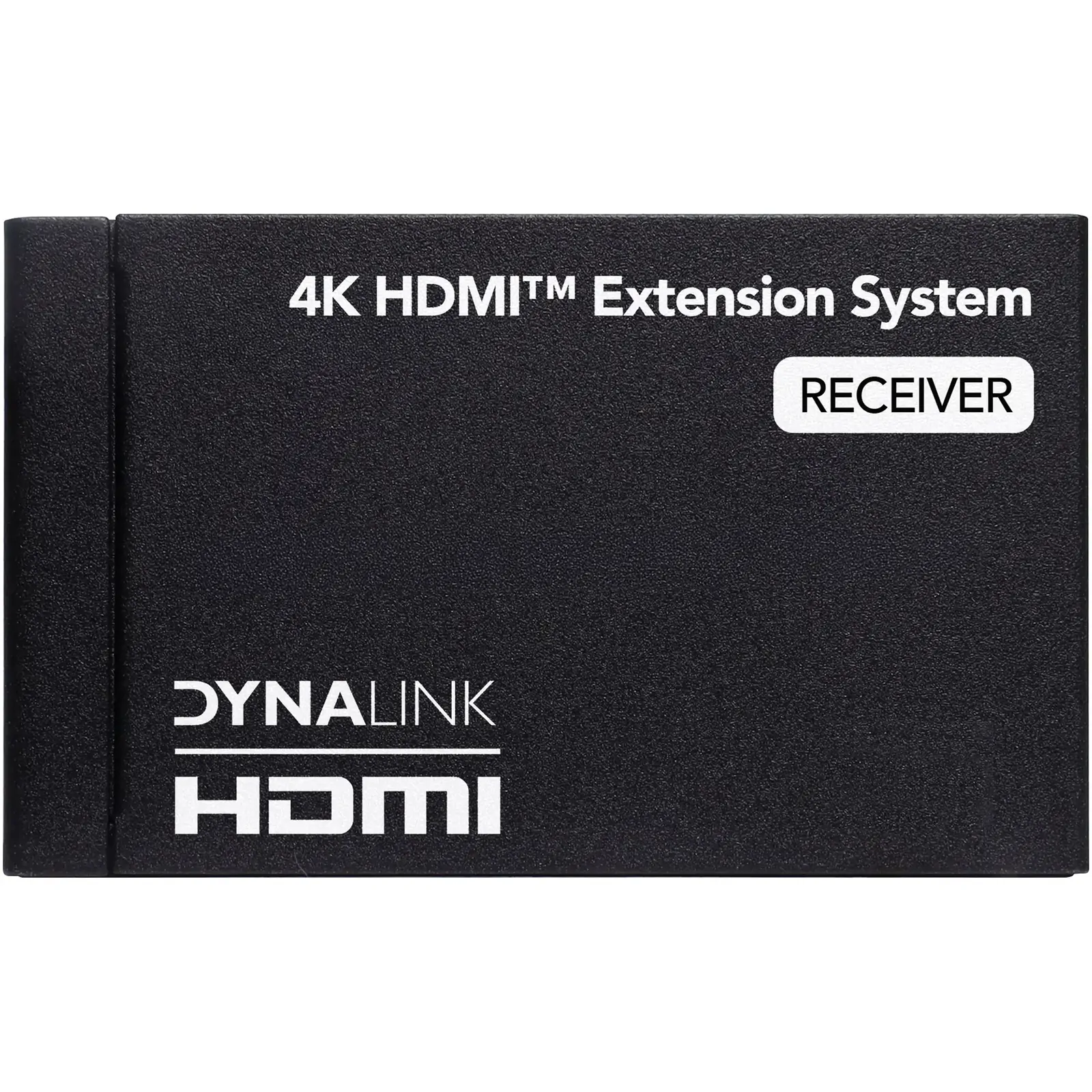

Connection (Receiver):

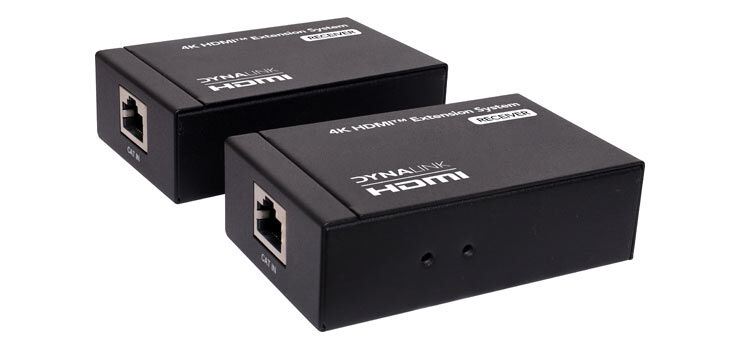

• Input: 1 x CAT IN [RJ45]
• Output: 1 x HDMI OUT [HDMI type A, 19-pin female]

Mechanical:

• Housing: Metal Enclosure
• Colour: Black
• Dimensions: Transmitter: 110W x 70D x 24.5Hmm, Receiver: 81W x 49D x 25Hmm
• Weight: Transmitter: 241g; Receiver: 116g
• Power Supply: DC 12V/1A
• Power Consumption: 7.4W (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)

  *Specifications are subject to change without notice.
