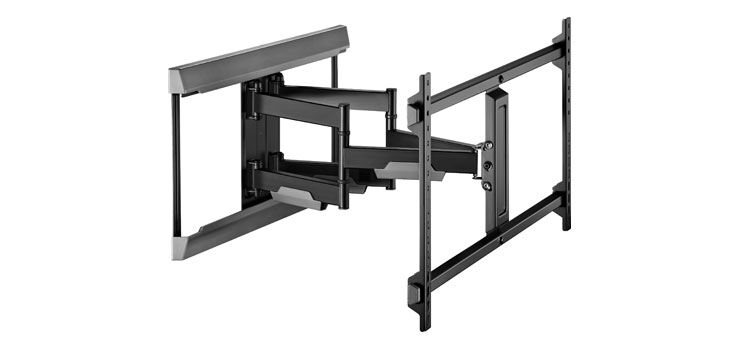

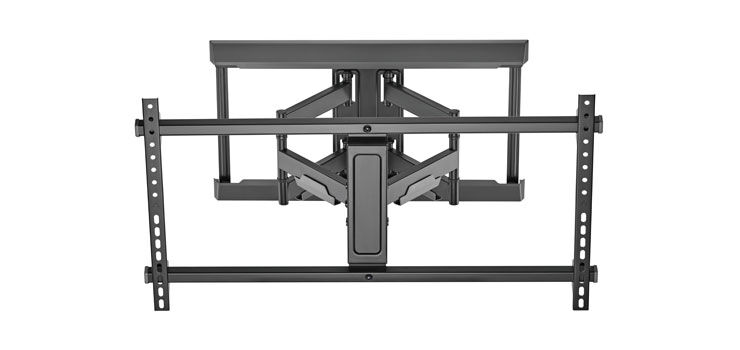

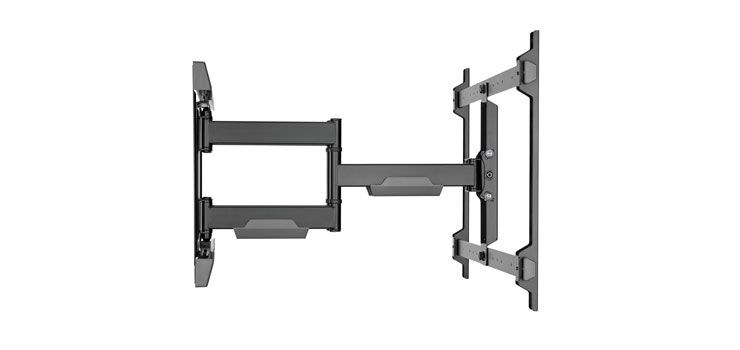

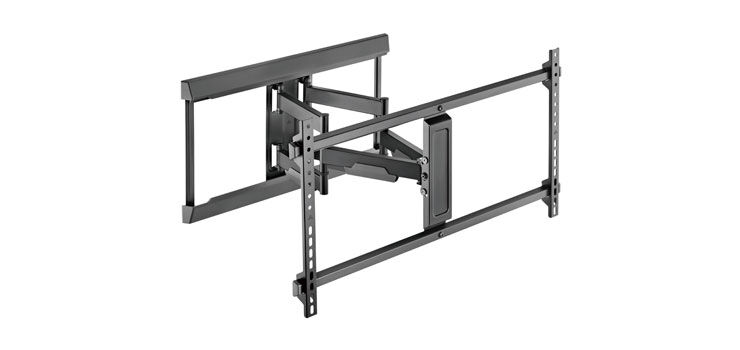

This cantilever wall bracket is designed to mount flat or curved screens up to 60kg where quick screen adjustment is required. VESA compliant mounting dimensions from 300x300 to 800x400. +3° to -15° tilt adjustment is provided, plus swivel up to 60° in either horizontal direction to find an optimal viewing angle, avoiding glare and reducing eyestrain when viewing. Suits both 450mm and 600mm spaced stud walls. It also has a sliding feature where the mounting plate can be fitted to the wall studs and then the screen shifted left or right to suit the room.

Features

• Low profile design
• +5 to 10° tilt adjustment.
• 60° swivel adjustment.
• Plastic mount covers provide a neat & tidy finish.

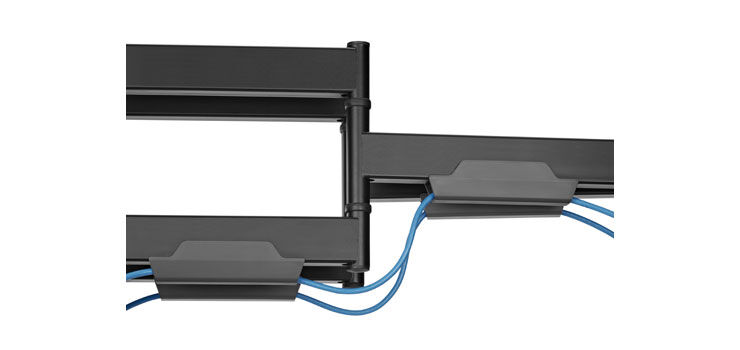

• Cable management guides.
• Built in levelling adjustment.
• Makes easy forward or backward viewing angle adjustments for reduced glare and eye strain.
• Sturdy and durable steel construction.

 Specifications

• Panel Type: Detachable
• Wall Plate Type: Lateral Shift
• Material: Steel/Plastic/ABS
• Surface Finish: Power Coating
• Finish Colour: Black
• Fit Screen Size: 43"-90", fits curved or flat TVs.
• Mounting Hole Pattern: VESA & Universal
• Mounting Hole (max): 800x400
• VESA Compatible: 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400
• Profile Depth: 63 ~ 536mm
• Tilt Range: +5° to -10°
• Swivel Range: +60° to -60°
• Screen Level: +3° to -3°
• Installation: Solid brick wall, suits both 450mm and 600mm spaced stud walls
• Weight Capacity: 60kgs
• Dimensions: 665 x 862 x 430mm

  *Specifications are subject to change without notice.
