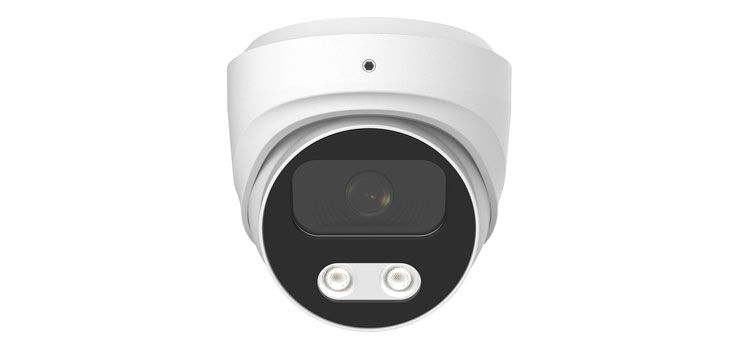

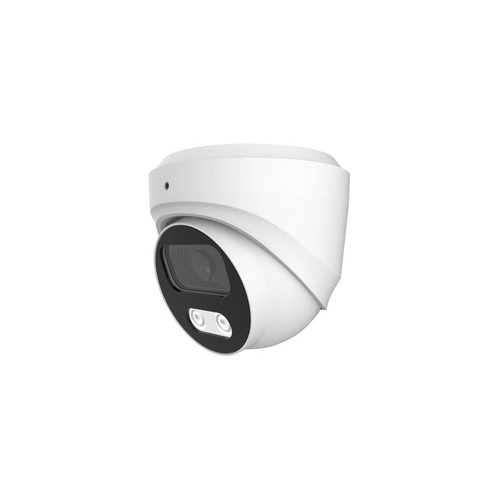

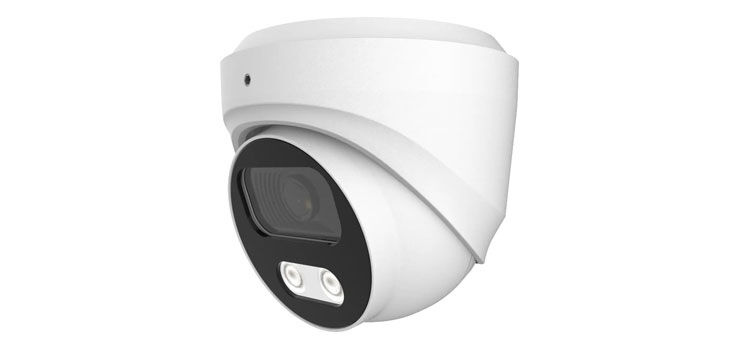

A camera designed to provide full colour video day and night. The camera has a security light in-built which allows the high sensitivity sensor to reproduce colour night time imaging compared with traditional day/night cameras which only display B&W when IR is activated. Light can also flash upon detection to deter intruders.
Features
- H.264, H.265+, JPEG, MJPEG compression
- Offers night time colour video
- Ideal for domestic installations
- In-built LED security light
- Motion detect flashing mode
- Metal housing
- Simultaneous multiple streams
- Supports ONVIF
- SD card slot
- PoE receiver
Specifications
Camera
- Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
- Resolution: 5MP
- Effective Pixels: 2616 (H)*1964 (V)
- Compression: H.264/H.265/H.264+/H.265+
- Audio Compression: G711A/U,AAC,MP2L2
- TV System: PAL/NTSC
- Electronic Shutter Time: Auto: 1/3-1/100000Sec
- Minimum Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux white light, B/W: 0 Lux with IR
- S/N Ratio: 60dB
- Scanning System: Progressive
- Video Output: Network
- Reset Button: Optional
Lens
- Focus Length: Board Lens 2.8mm
- Focus Control: Fixed
- Lens Type: Fixed
- Pixels: 5MP
Night Vision
- Supplement Light: 38? x 2PCS(Warm light LED 4000K),38? x 2PCS IR LED
- Supplement Light Distance IR: 40m, Warm light: 30m
- Supplement Light Status: Auto Control
- Supplement Light Power On: Smart, Manual & Timed mode
Network
- Ethernet: RJ-45 (10/100Base-T)
- Wireless: N/A
- Protocol: TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x
- ONVIF: Support ONVIF 19.12(Profile S/T)
- P2P: YES
- POE: Internal, Support IEEE 802.3af
- Video Delay: 0.3S (Within the Lan)
- Main Stream 1: 2592*1944@30fps
- Main Stream 2: 2560*1440@30fps
- Main Stream 3: 1920*1080@30fps, 1280*720@30fps
- Sub Stream 1: 1280*720@30fps
- Sub Stream 2: 720*480@30fps
- Sub Stream 3: N/A
- Tri Stream: N/A
- IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari
- Smart Phone: iPhone, Android
- AI Function
- Intelligent Analysis: Intrusion Detection(based on human and Vehicle Detection), Line Cross Detection(based on human and Vehicle Detection), Loiter Detection(based on human detection), People Gather Detection(based on human detection), Motion detection based on human detection, Enter Area(based on human and Vehicle Detection), Leave Area(based on human and vehicle Detection)
Camera Features
- Day/Night: Color/ B&W (IR-CUT)
- Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering,HLC
- Full Colour: Support
- Corridor Pattern: Support
- Defog Mode: N/A
- ROI: Support
- BLC: Support
- WDR: Support
- Motion Detection: Support (support enable the detection based on human movement only)
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/CMS/Web
- Language: Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian
Interface
- Audio: Built-in MIC, Optional Audio In, Audio In&Out
- Alarm: N/A or Optional 1 Channel Input/Ouput
- SD Card Slot: External, Support Max 256GB
- RS485: N/A
General
- Housing: Metal , IP67
- Anti-cut Bracket: NO
- IR Cut Filter: YES
- Operation Temperature: -20? ~ +60? RH95% Max
- Storage Temperature: -20? ~ +60? RH95% Max
- Power Source: DC12V±10%, 1000mA
- Dimension: ?96 x 91(H) mm
- Weight: 430g
*Specifications are subject to change without notice.
(S9810B)
SKU | S9810B |
Model # | S9810B |
Barcode # | 9321758259436 |
Brand | efocus |
