Overview

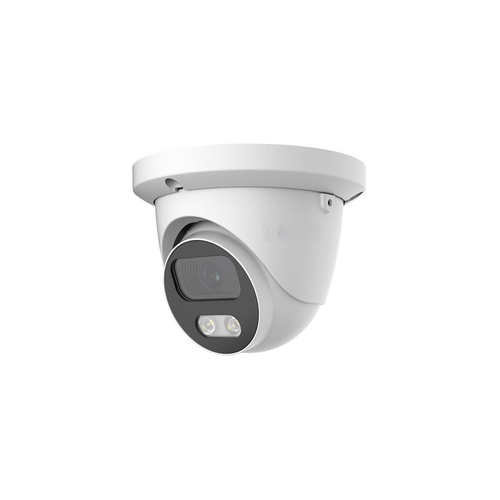

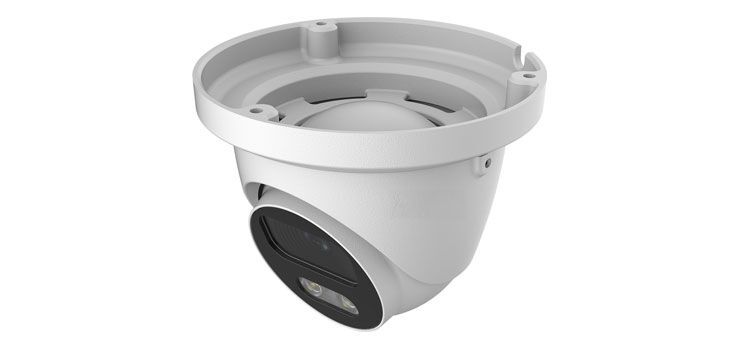

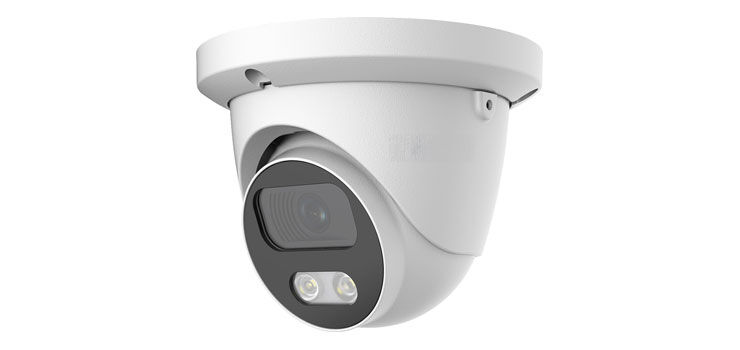

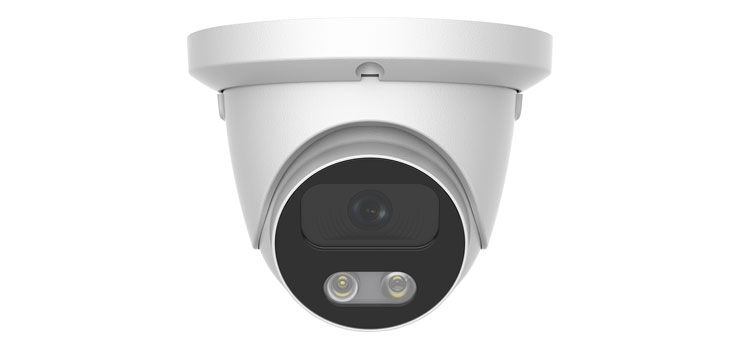

A day/night high resolution IP dome camera with multi-codec support. Offering a clear 2592x1944 image at 30fps for integration with HD?network video recorders. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders.

Features

• Pro IP Dome
• 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
• H.265+/H.265/H.264+/H.264 Compression Method
• 2.8mm Fixed Lens
• IR Distance 25M Max.
• Internal POE and SD Card Slot

Specifications

Camera

• Image Sensor: 1/2.8" SONY Starvis Back-Illuminated CMOS Sensor
• Resolution: 5MP
• Effective Pixels: 2616 (H) x 1964 (V)
• Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
• TV System: PAL/NTSC
• Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
• Minimum Illumination: 0.01Lux
• S/N Ratio: ?52dB
• Scanning System: Progressive
• Video Output: Network

Lens

• Focus Length: 2.8mm
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 5MP

Night Vision

• Infrared LED: 42? x 2PCS
• Infrared Distance: 25M
• IR Status: Auto Control
• IR Power On: Smart, Manual & Timed Mode

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, UPnP, SMTP, UDP
• ONVIF: Support ONVIF 2.4(Profile S/T/G)
• P2P: YES, Support QR Code
• POE: Internal, Support IEEE 802.3af
• Video Delay: 0.3S (Within the Lan)
• Main Stream 1: 2592*1944@30fp
• Main Stream 2: 2560*1440@30fp
• Main Stream 3: 1920*1080@30fps, 1280*720@30fps
• Sub Stream 1: 1280*720@30fps, 720*480@30fps
• Sub Stream 2: 352*288@30fps
• Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps
• IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari
• Smart Phone: iPhone, iPad, Android, Android Pad

AI Function

• Intelligent Analysis Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection

Camera Features

• Day/Night: Color/ B&W (IR-CUT)
• Image Config: Saturation, Brightness, Contrast, Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Video Tampering, HLC, Distortion
• Corridor Pattern: Support
• Defog Mode: Support
• ROI: Support
• BLC: Support
• WDR: HDR: 120dB
• Motion Detection: Support
• Privacy Masking: 3 Rectangular Zone
• Recording Mode: NVR/CMS/Web
• Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese,
• Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese.

Interface

• Audio: 1 Built-in MIC (Optional Audio LINE IN/OUT)
• SD Card Slot: Internal, Support Max 512GB,Built in 4G Storage

General

• Housing: Metal , IP67
• Anti-Cut Bracket: NO
• IR Cut Filter: YES
• Operation Temperature: -20? ~ +60? RH95% Max
• Storage Temperature: -20? ~ +60? RH95% Max
• Power Source: DC 12V±10%, 700mA
• Dimension:?109 x 93(H) mm
• Weight: 600g

  *Specifications are subject to change without notice
