Features:

- Operating temperature: -20 to 80 degrees

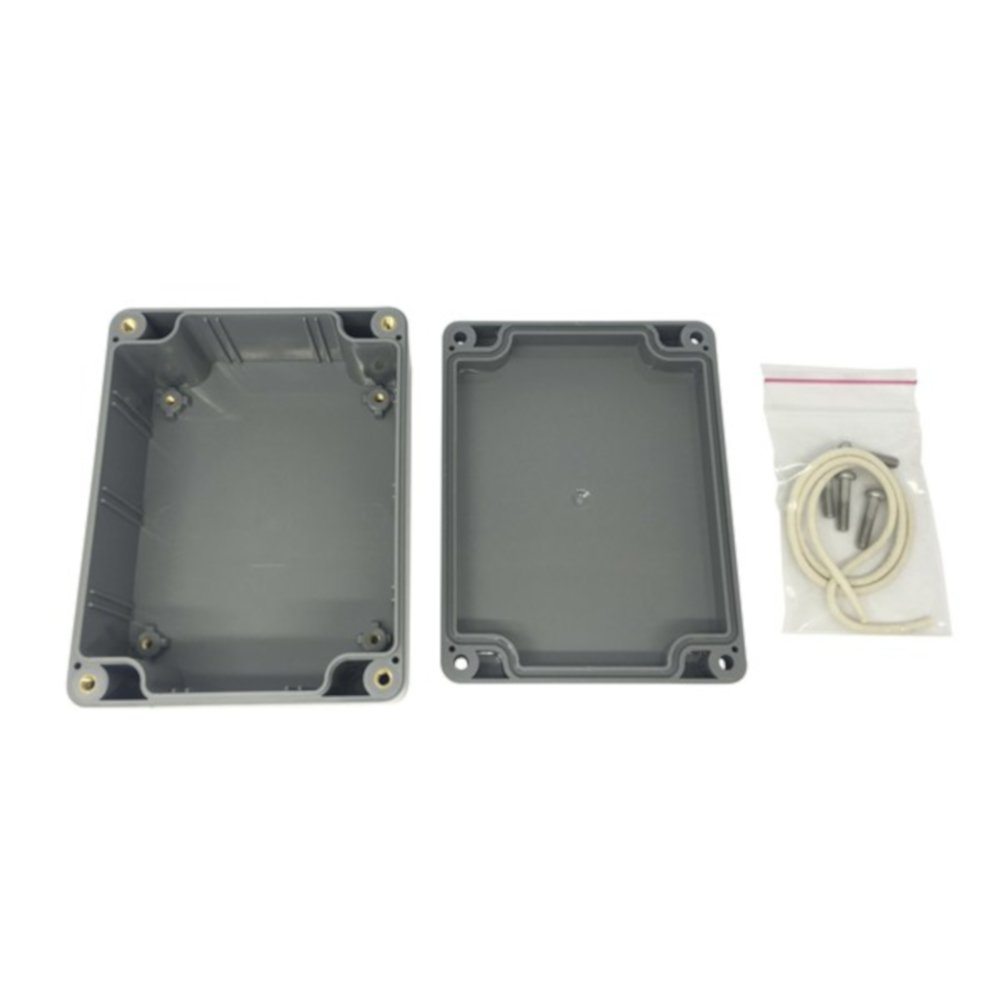

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust

Specifications

Colour : Grey-Dark
IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Width : 115.0mm
Height : 55.0mm
Depth : 90.0mm
Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots : true
Internal Mounting Posts : true
Gasket sealing system : true
Gasket Material : Neoprene
Lid Screws : 4.0pc
Ventilation Holes : false

(HB6126)

12 Months

SKU HB6126
Model # HB6126
Barcode # 9319236034163
Brand BOURNE
Unit Of Measure Each
Assembled Length 0.090m
Assembled Height 0.550m
Assembled Width 0.115m
