Features:

  • Operating temperature: minus 20oC to 100oC

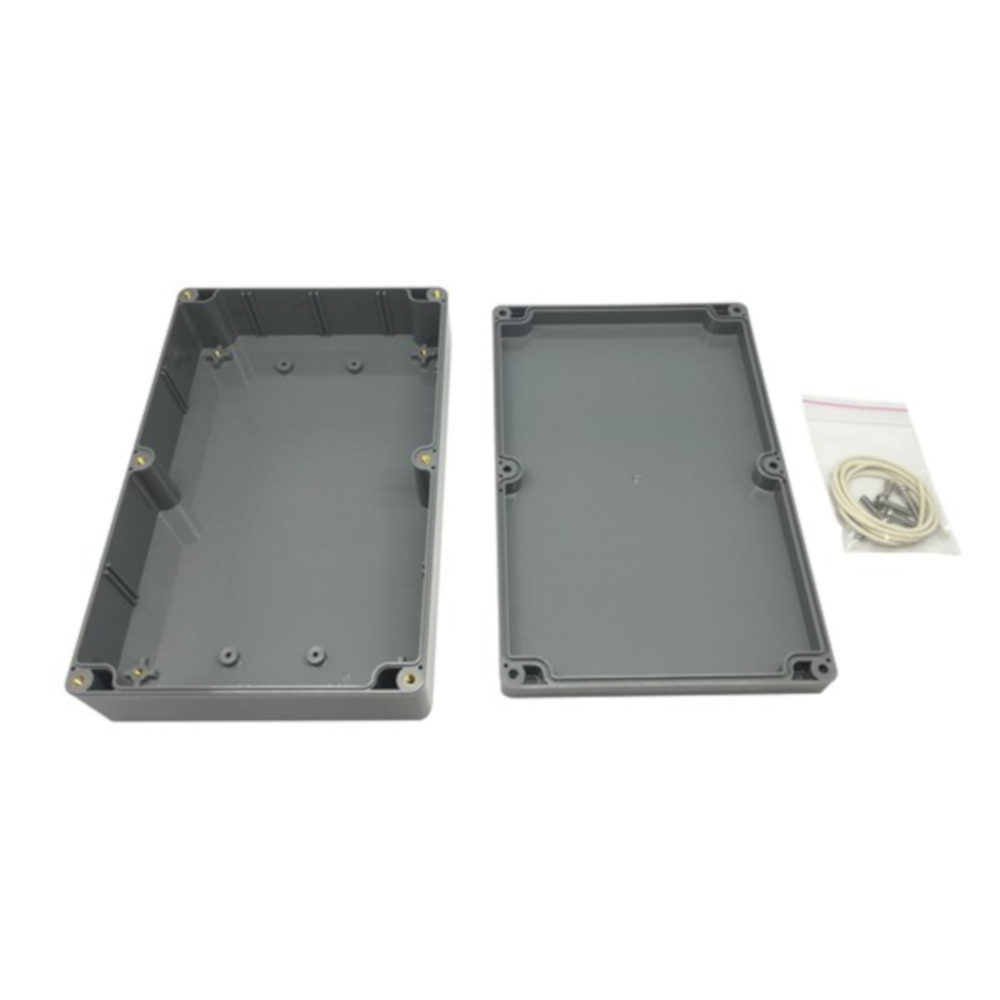

  • Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
  • The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
  • Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
  • Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust

Specifications

IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Width : 222.0mm
Height : 55.0mm
Depth : 146.0mm
Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots : true
Internal Mounting Posts : true
Gasket sealing system : true
Lid Screws : 6.0pc
Ventilation Holes : false

(HB6130)

12 Months

SKU HB6130
Model # HB6130
Barcode # 9319236034187
Brand BOURNE
Unit Of Measure Each
Assembled Length 0.146m
Assembled Height 0.055m
Assembled Width 0.222m
