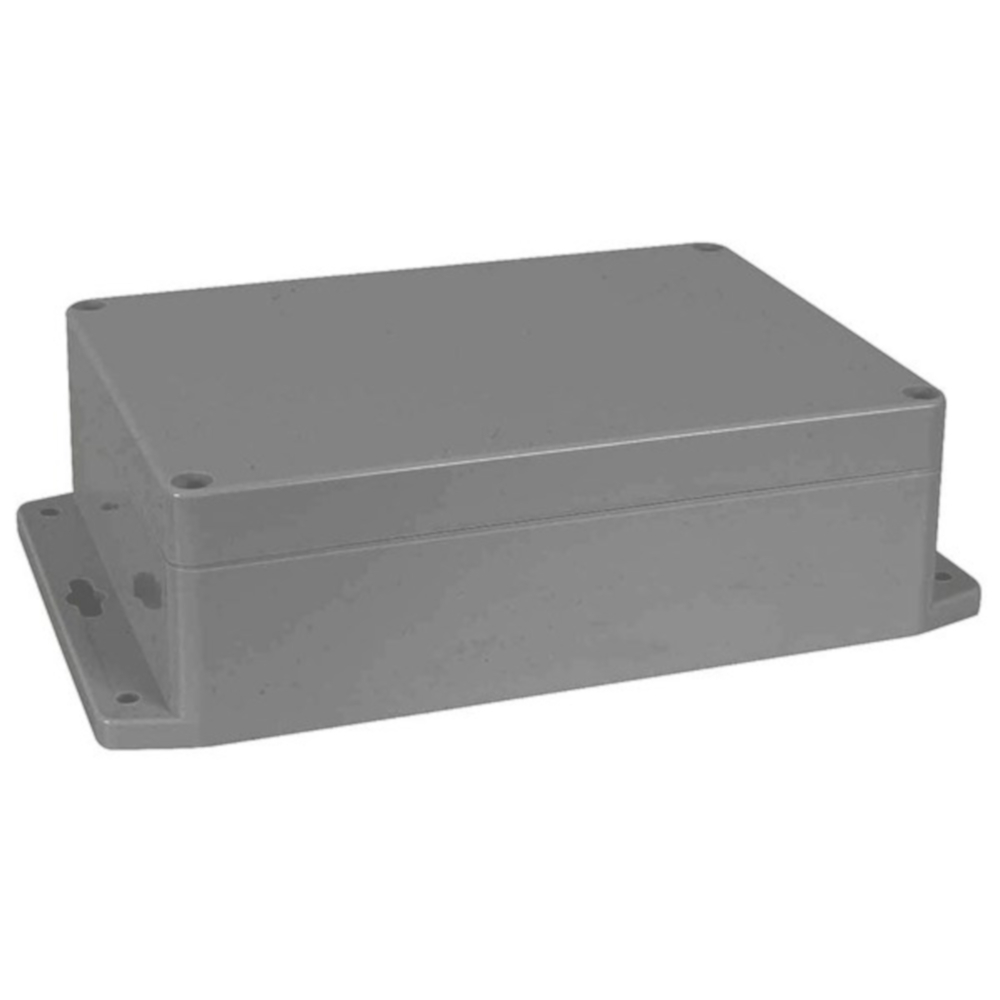

Features:

• Operating temperature: -20 to 80 degrees
• Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust

Specifications

Colour : Grey-Dark
IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Width : 171.0mm
Height : 55.0mm
Depth : 121.0mm
Material : ABS Plastic (Acrylonitrile Butadiene Styrene)
PCB Internal Guide Slots : true
Internal Mounting Posts : true
Gasket sealing system : true
Gasket Material : Neoprene
Ventilation Holes : false
Additional Part Details : Base Dimensions
Width : 201.0mm
Depth : 121.0mm

(HB6125)

12 Months

SKU HB6125
Model # HB6125
Barcode # 9319236970119
Brand BOURNE
Unit Of Measure Each
Assembled Length 0.121m
Assembled Height 0.055m
Assembled Width 0.171m
