Plastic Molded Enclosures Dark Grey ABS - 150 x 80
$17.95
or 4 payments of $4.49 with Learn more
Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
Light Grey:
HB6230 82(W) x 80(D) x 55(H)mm
HB6212 115(W) x 65(D) x 40(H)mm
HB6216 115(W) x 90(D) x 55(H)mm
HB6218 171(W) x 121(D) x 55(H)mm
HB6224 171(W) x 121(D) x 80(H)mm
HB6220 222(W) x 146(D) x 55(H)mm
Light Grey with Clear Lid:
HB6246 115(W) x 90(D) x 55(H)mm
HB6248 171(W) x 121(D) x 55(H)mm
HB6254 171(W) x 121(D) x 80(H)mm
HB6258 222(W) x 146(D) x 55(H)mm

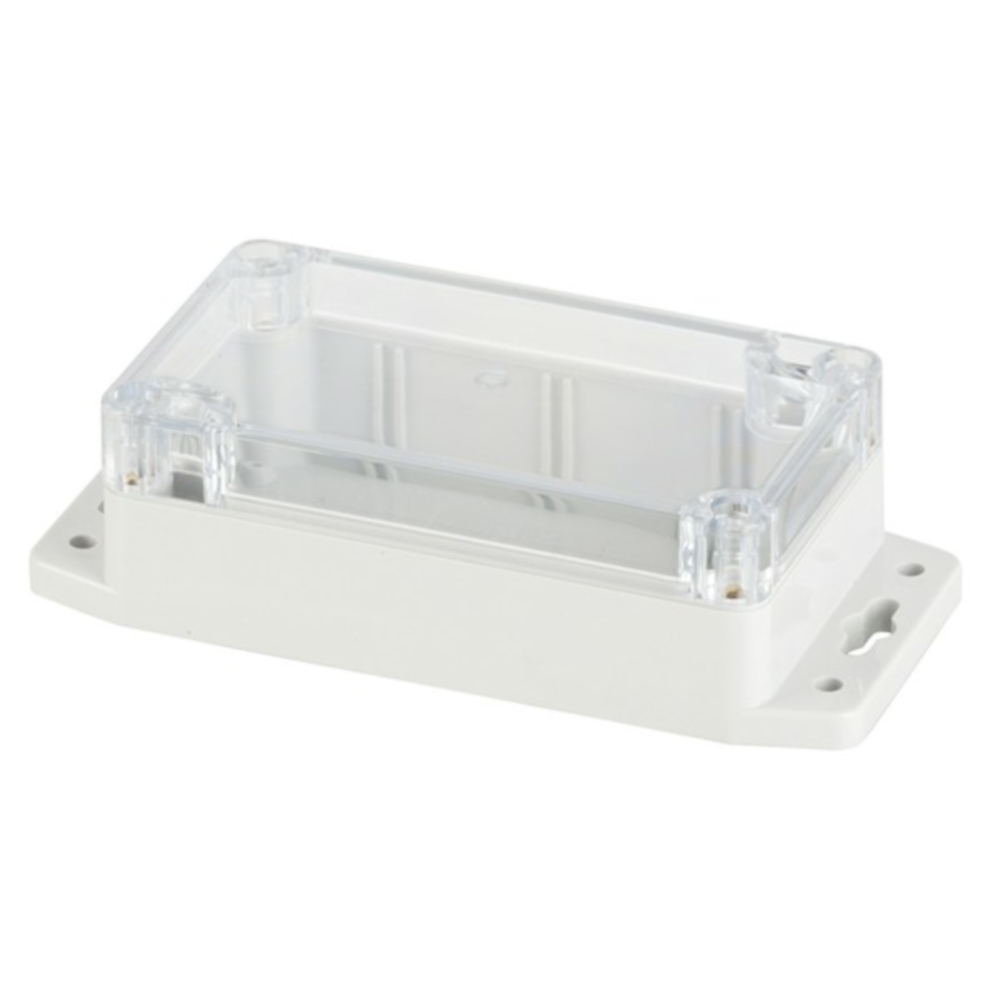

Light Grey with Mounting Flange:
HB6217 Box: 115(W) x 90 (D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6219 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm
HB6221 Box: 171(W) x 121(D) x 80(H)mm
Base: 201(W) x 121(D)mm
Colour : Grey-Light |
IP Rating : IP65 |
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust |
Liquid/Moisture Ingress Protection : 5 - Water jets |
Width : 115.0mm |
Height : 65.0mm |
Depth : 40.0mm |
Material : Polycarbonate |
PCB Internal Guide Slots : true |
Gasket sealing system : true |
Gasket Material : Neoprene |
Lid Screws : 4.0pc |
(HB6249)
12 Months
SKU | HB6249 |
Model # | HB6249 |
Barcode # | 9319236987544 |
Brand | BOURNE |
Unit Of Measure | Each |
Assembled Length | 0.040m |
Assembled Height | 0.065m |
Assembled Width | 0.115m |
