Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB6230)

Light Grey:
HB6230 82(W) x 80(D) x 55(H)mm
HB6212 115(W) x 65(D) x 40(H)mm
HB6216 115(W) x 90(D) x 55(H)mm
HB6218 171(W) x 121(D) x 55(H)mm
HB6224 171(W) x 121(D) x 80(H)mm
HB6220 222(W) x 146(D) x 55(H)mm

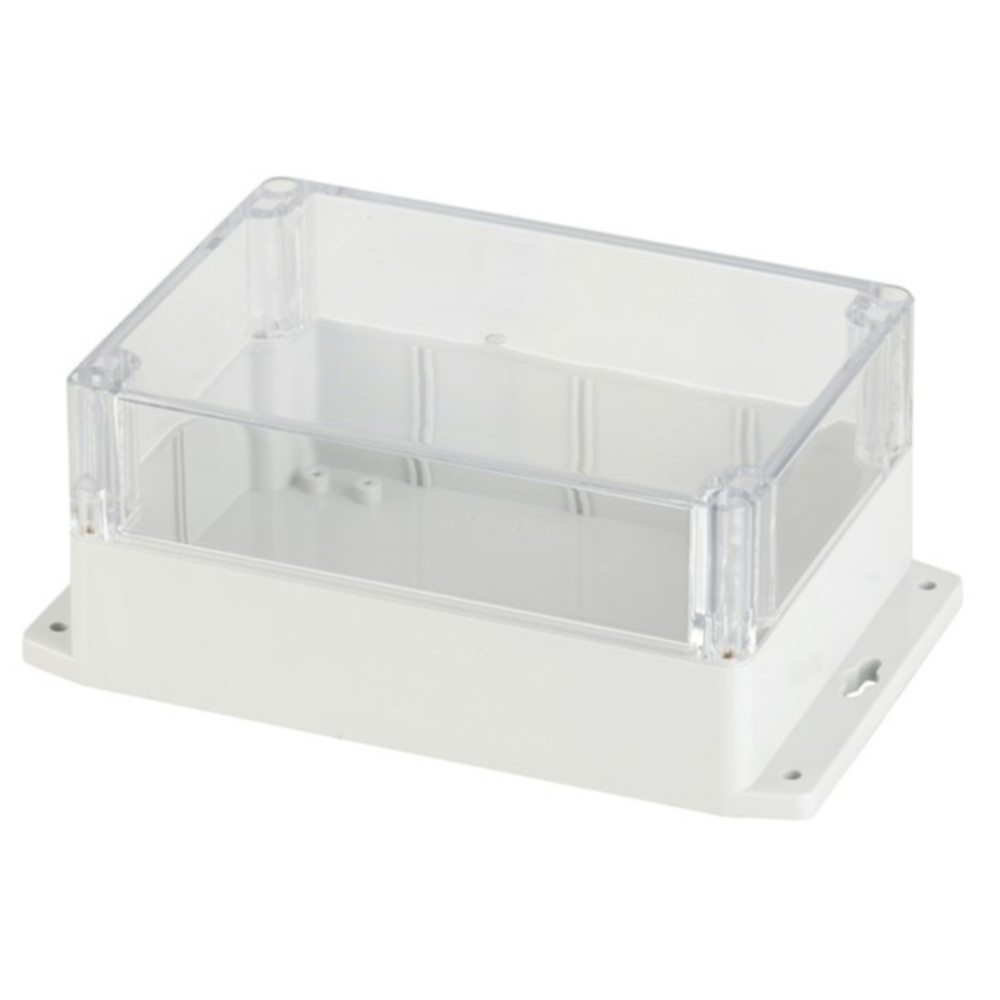

Light Grey with Clear Lid:
HB6246 115(W) x 90(D) x 55(H)mm
HB6248 171(W) x 121(D) x 55(H)mm
HB6254 171(W) x 121(D) x 80(H)mm
HB6258 222(W) x 146(D) x 55(H)mm

Light Grey with Mounting Flange:
HB6217 Box: 115(W) x 90 (D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6219 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm
HB6221 Box: 171(W) x 121(D) x 80(H)mm
Base: 201(W) x 121(D)mm

Specifications
