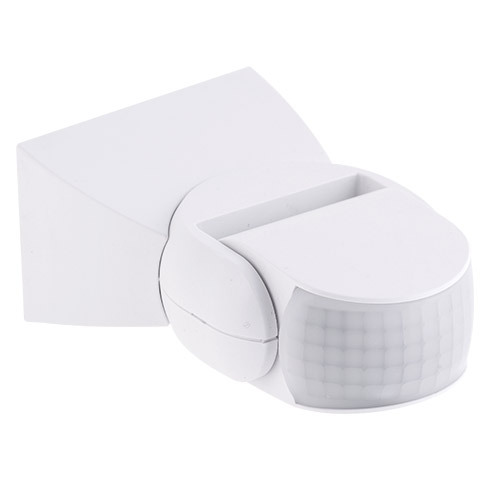

The ENSA-PS1 is an intelligent sensor switch, designed for wall mounting. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:

• Daylight sensor: Activates motion sensor when lux levels fall below limit
• Motion sensor: Detects movement, turns light on only when necessary
• On-timer: Light-on duration is set only as long as is required

Features

• Automatically activate and deactivate lighting for energy efficiency

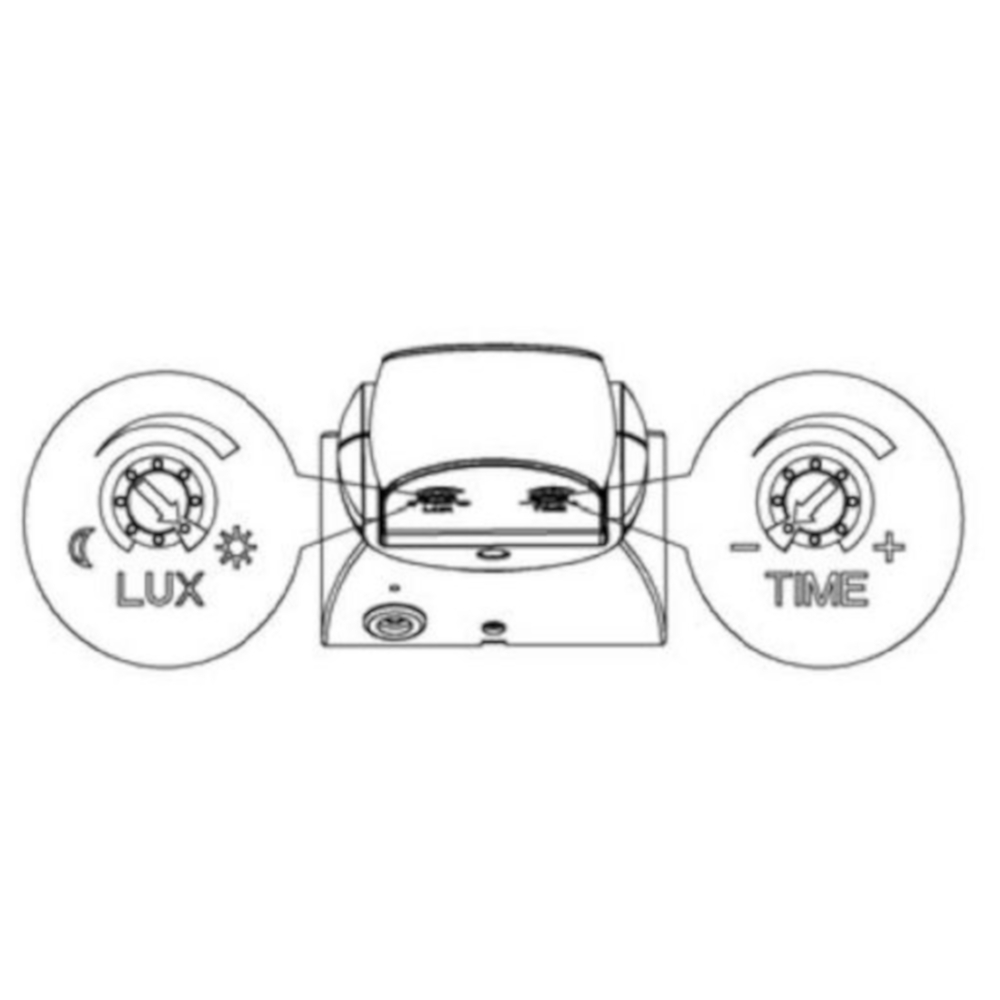

• Adjustable sensors: Daylight (3~2000lx) / Motion (12m) / On-timer (10s~7min)
• 180° arc / 12m radius passive infrared detection
• Wall mount angle adjustable, IP65 rated for outdoor use
• 3 year warranty

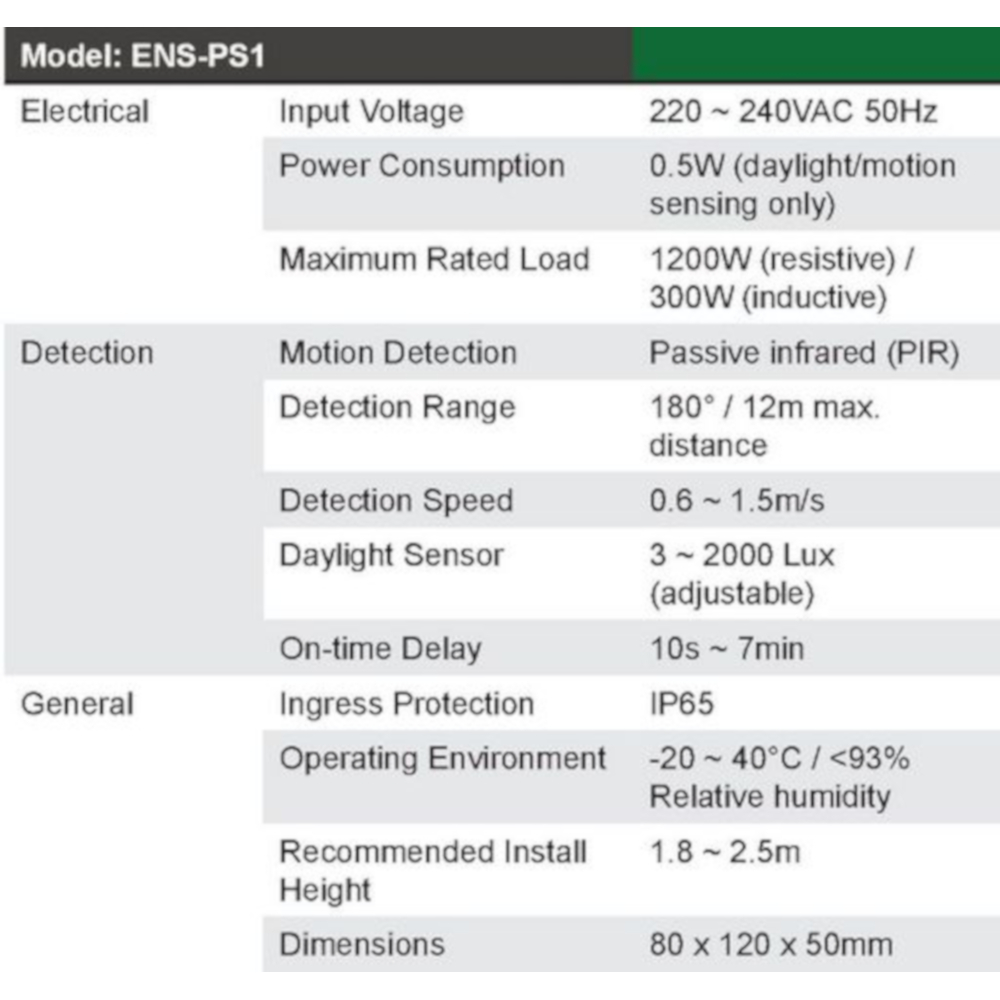

Specifications

• Daylight Sensor - Yes
• Motion Sensor Type - Passive Infrared
• Electrical
• Input Voltage - 220 ~ 240VAC 50Hz
• Power Consumption (Sensing Mode) - 0.5W
• Max. Rated Load (Resistive/Inductive) - 1200W / 300W

Detection

• Daylight Sensing - 3 ~ 2000 Lux
• Motion Detection Area - 180° arc (12m radius)
• Motion Detection Adjustment - N/A
• Recommended Installation Height - 1.8 ~ 2.5m
• Motion Detection Speed - 0.6 ~ 1.5m/s
• On-timer Delay - 10s ~ 7min
• Stand-by Period - N/A
• Stand-by Dimming - N/A

General

• Ingress Protection - IP65
• Operating Environment - -20 ~ 40°C / <93% Relative humidity
• Mounting Type - Wall
• Dimensions - 80 x 120 x 50mm
