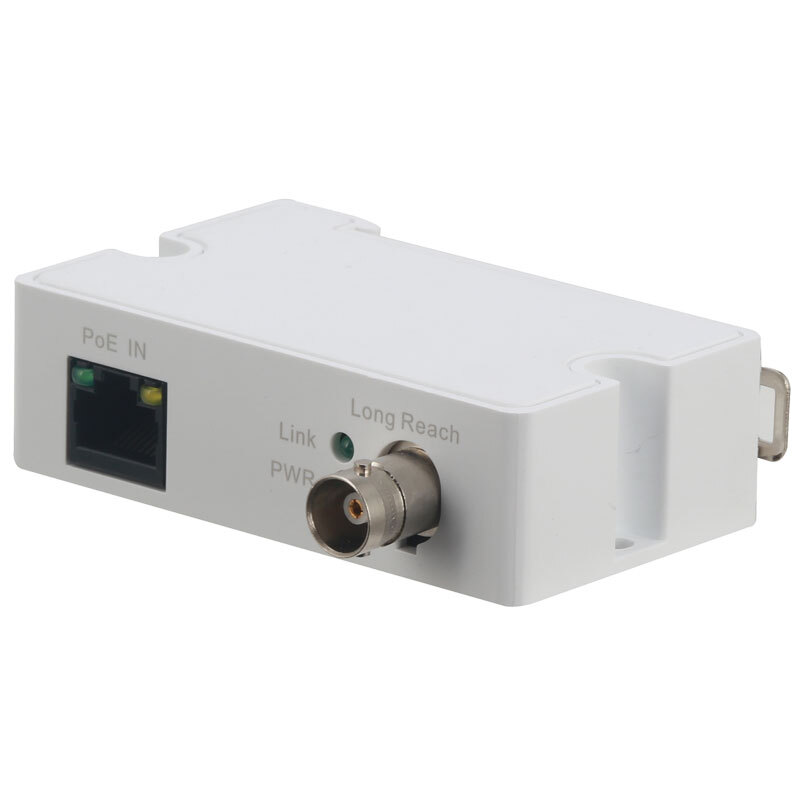

Ethernet over Coax Receiver

Convert network connections running over coaxial cable back to RJ45 with the VSEOC-ARX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.

Features

  • 1 x RJ45 10/100Mbps port, 1 x BNC port
  • Supports IEEE802.3 & IEEE802.3u standards
  • Supports IEEE802.3af and IEEE802.3at PoE standards
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable
  • DIN rail mountable

Specifications

  • Dimensions: 79mm x 52mm x 23mm
  • Installation: DIN rail mountable
  • Network Protocol: IEEE802.3, IEEE802.3u, IEEE802.3x
  • Operating Environment: -30°C-65°C / <95% RH
  • PoE Protocol: IEEE802.3af, IEEE802.3at
  • Ports: 1 x 10/100 Mbps Base-TX, 1 x BNC
  • Power Consumption: <2W
  • Surge Protection:Common Mode: 4KV / Differential Mode: 2KV
  • Transmission Bandwidth: RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
  • Weight: 61g

(VSEOC-ARX)

SKU VSEOC-ARX
Model # VSEOC-ARX
Brand Securview
