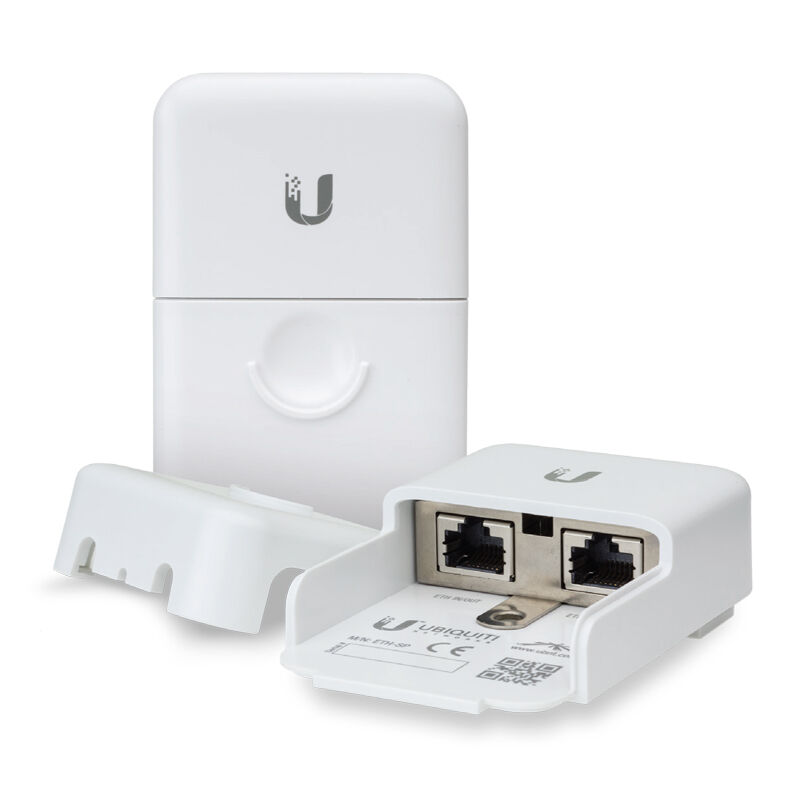

Ethernet Surge Protector VSETHSP

The VSETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps. This is a great protection for outdoor POE devices, when damaging electrostatic discharge attacks and surges are diverted to the VSETH-SP and safely discharged into the ground, so network devices are protected.

Specifications

  • Data Line Protection - RJ45 10/100/1000 Ethernet
  • DC Spark-Over Voltage - 90V @ 100V/s
  • Dimensions - 91 x 61 x 32.5 mm
  • Discharge Current - 10kA (Maximum), 0.5kA (Normal)
  • ESD/EMP Protection - Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/μs
  • IEEE 802.3af PoE Support - Yes
  • Interface Connections - (2) RJ45 Female Connectors
  • Maximum Capacitance - 1.0 pF @ 1 MHz
  • Maximum Impulse Spark-over Voltage - 700V @ 1kV/μs
  • Maximum Insulation Resistance - 1G ohm @ 50V
  • Operating Humidity - 10 to 90% Noncondensing
  • Operating Temperature - -30 to 65° C
  • Shock and Vibration Certification - ETSI300-019-1.4 Standard

(VSETHSP)

SKU VSETHSP
Model # VSETHSP
Brand Ubiquiti Networks
