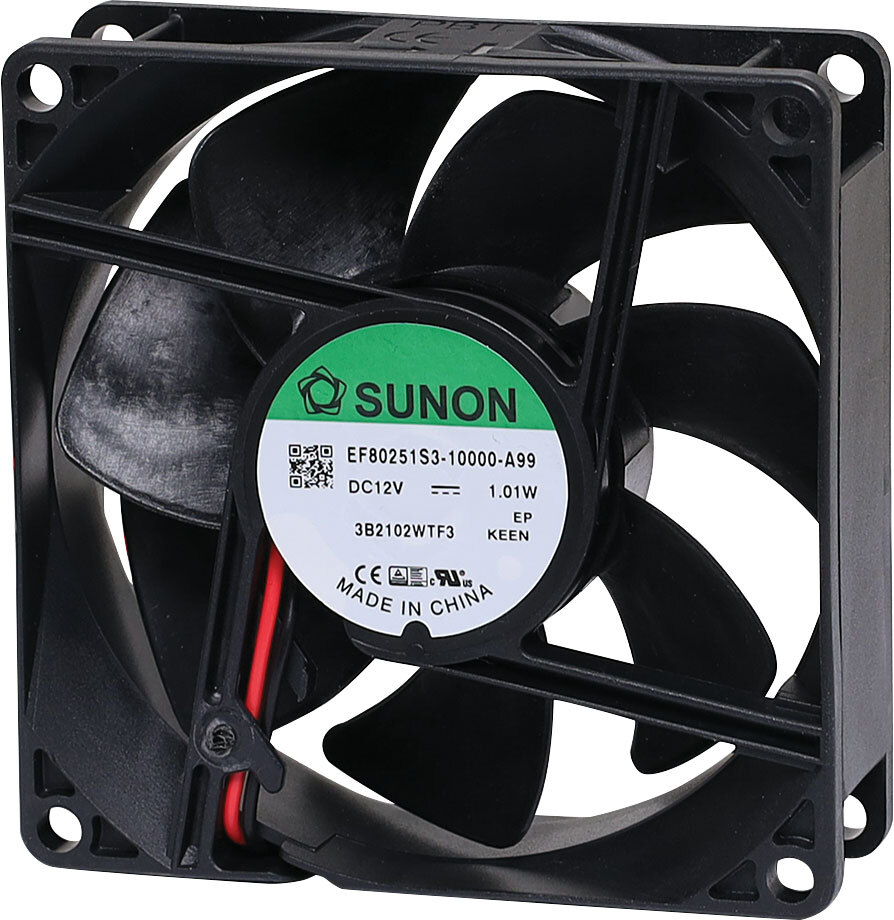

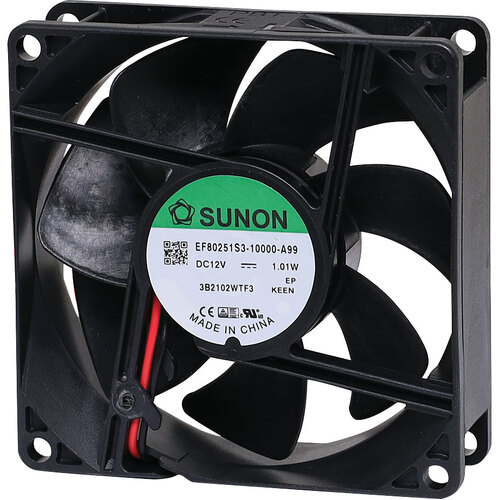

A 12V DC 80mm Sunon Sleeve Bearing Cooling Fan (#EE80251S3-10000-A99) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Mechanical Characteristics

  • Motor Design: Brushless DC motor
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 75g
  • Dimensions: 80 x 80 x 25mm

Electrical Characteristics

  • Rated Voltage: 12V DC
  • Rated Current: 70mA (84mA max)
  • Rated Power Consumption: 0.84W (1.01W max)
  • Safety Power Consumption: 1.01W
  • Operating Voltage Range: 4.5~13.8V DC
  • Starting Voltage: 4.5V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C

Performance Characteristics

  • Rated Speed: 2600 RPM ±10% at rated voltage
  • Air Flow: 33 CFM
  • Static Pressure: 0.11 Inch-H2O
  • Noise Level: 28dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart

(F1050)

12 Months

SKU F1050
Model # EE80251S3-0000-999
Barcode # 9321758027516
Brand SUNON
Unit Of Measure each
