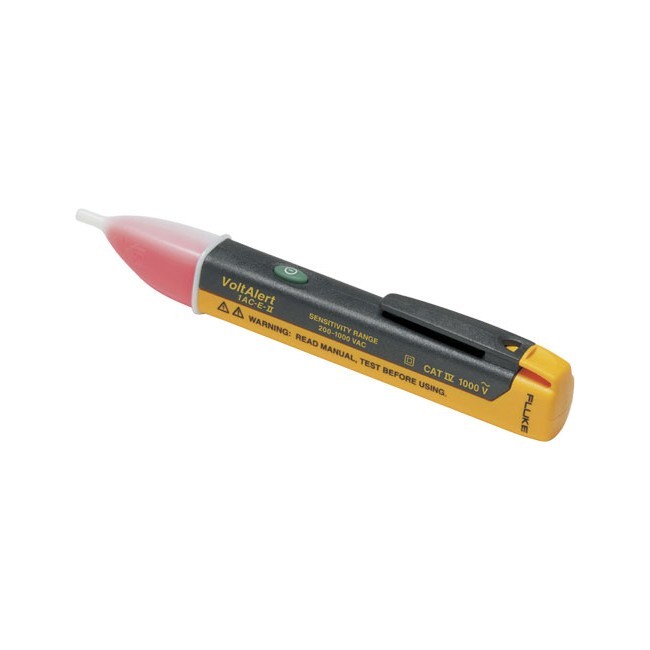

Fluke CAT IV 1000V Pocket-sized Voltage Alert Detector Volt Finder Stick

VOLTAGE ALERT / DETECTOR - FLUKE

The pocket-sized voltage detector

The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

FEATURES:

Voltbeat™ technology and continuous self-test — so you always know it’s working
Upon detection, tip glows and beeper sounds
CAT IV 1000 V for added protection
Expanded range: 90 V to 1000 V AC or 200 V to 1000 VAC depending on model
20 V to 90 V AC control circuit model also available
Two-year warranty

SPECIFICATIONS:

Operating principle

Senses the steady state electrostatic ?eld produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.

Voltage sensing ranges

Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model

Detector tip style

Blade or round, depending on model

Light source

One high intensity red LED

Agency Approvals

c CSA us, CE, TUV, C-Tick

Safety Rating

1000 V, CAT IV

IP Rating

IP 40
