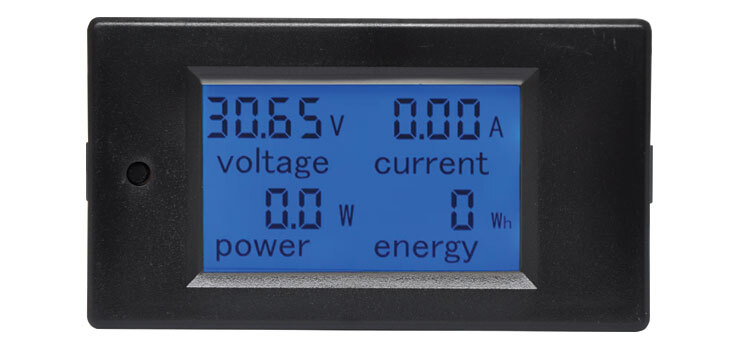

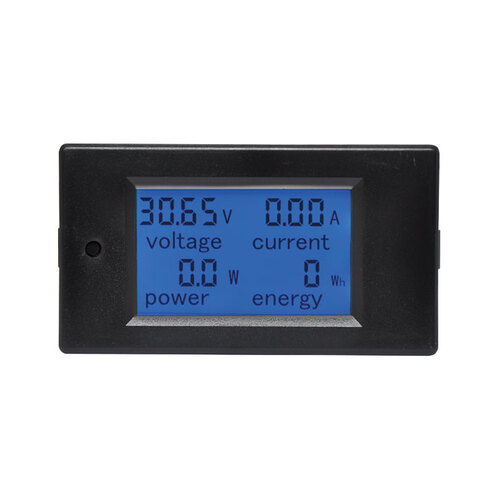

Flush Mount Power Monitor Panel With 100A Shunt Voltage alarm function
A complete power monitoring panel with voltage, current, power and energy consumption (Wh) displayed simultaneously. Easy press fit mount with voltage alarm function. 2000W max. 6.5-100V DC. Cut out dimensions 84.5W x 44.5Hmm. Features a 100A external shunt.
Features
- Electrical parameter measurement function (voltage, current, active power, energy)
- Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).
- The reset function of energy key.
- Store data when power off.
- Large-screen LCD (display voltage, current, active power, energy at the same time)
- Backlight function.
- Working Voltage: 6.5V~100V DC
- Test Voltage: 6.5V~100V DC
- Rated Power: 100A/2000W
- Measurement accuracy:1.0 grade
(Q0591)
| SKU | Q0591 |
| Model # | Q0591 |
| Barcode # | 9321758240700 |
| Brand | Powerhouse |
| Artist / Author | jiji |
| Shipping Weight | 0.2100kg |
