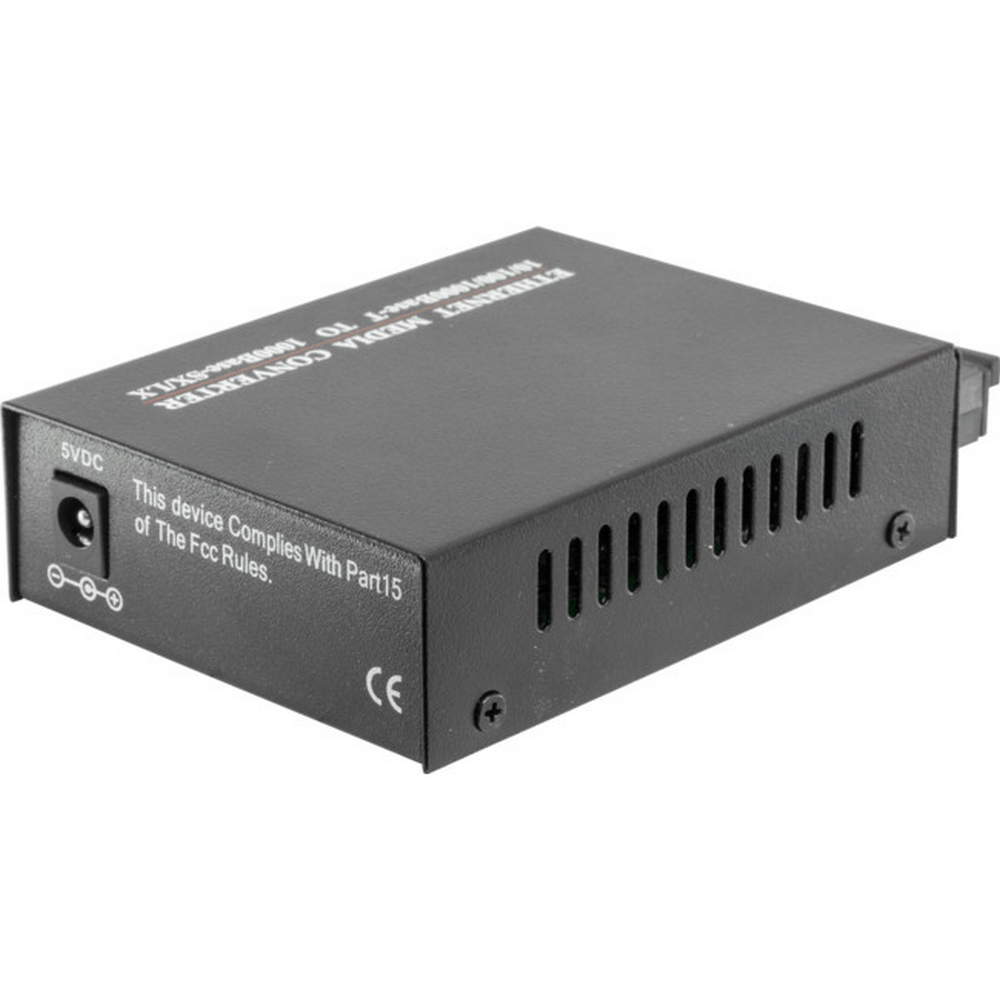

10/100/1000M Fiber Media Converter translates the signal from a twist-pair 10/100/1000Base-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 100km by fiber optic cable,which supports LFP(Link Fault Pass-through) function & US Powered

  • 10/100/1000Mbps auto-sensed, easily upgrade
  • Full-duplex and half-duplex auto-sensed
  • MDI/MDI-X Auto Negotiation
  • 10/100/1000Mbps store-and-forward
  • 1000Mbps cut-through transmission
  • Packet size up to1518bytes
  • Support 9K Jumbo Frame
  • Supporting VLAN / VoIP /QoS packets
  • Support flow control and reduce broadcast packets
  • Supporting STP to form a redundant network
  • Extremely low power consumption, low heat, stable performance
  • Providing Desktop, Wall-mounted, Chassis, DIN-rail installation

{tab Specification}

Standard IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.3z
Data Rate Copper: 10/100/1000M;
Fiber: 1.25G
Flow control Full duplex: flow control;
Half duplex: back pressure
Copper Port No.s of Copper Port:1
Connector: RJ45 Connector
Distance:100m
Fiber Port No.s of Fiber Port:1
Connector: SC as default, FC/ST optional
Wavelength: MMF 850nm
Distance: MMF 550Km
LED indicators PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),
TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs),
1000 (100M transmission rate of twisted pairs)
Power supply Working power: DC5V 1A
AC Power Supply: 100V~ AC240V to 5V1A
Or DC Power Supply: -36~-72V to 5V1A
External / Internal Power Supply Optional
Power consumption <3W
Environment Operating temperature : -10~55°C
Storage Temperature: -40~85°C
Relative Humidity: 5% to 95% non-condensing
Dimensions External: 94mmx70mm*26mm
Internal: 140mmx110mmx30mm
Gross Weight External : 0.4kg
Internal: 0.5kg

{/tabs}



(FMC1GBMM550MSC)

SKU FMC1GBMM550MSC
Barcode # 9328202001788
Brand BOURNE
Artist / Author Shibin SP
Shipping Weight 0.3330kg
Unit Of Measure Each

12 Months
