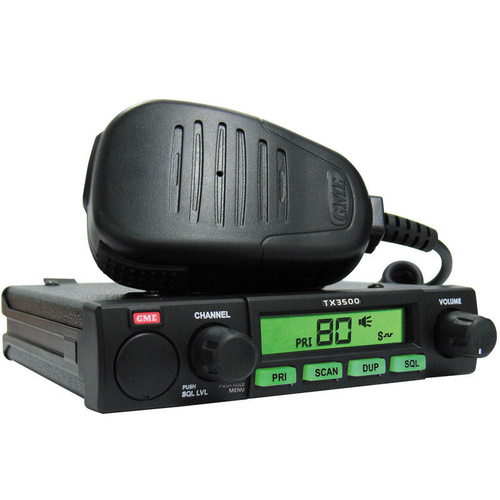

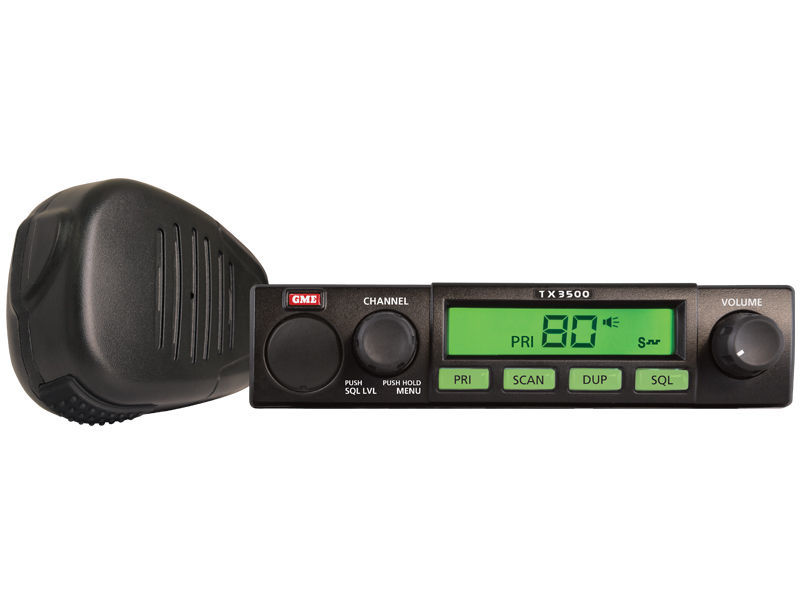

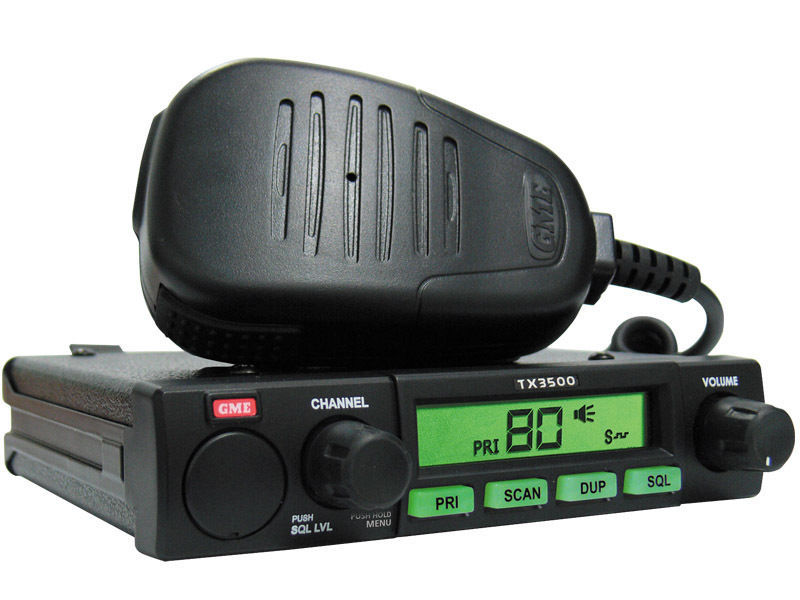

GME TX3500S 5 Watt 477MHz 80 Channel Compact UHF Radio w ScanSuite

Brand New

UHF radio powered by digital signal processing for Pure Sound

Synonymous with quality and reliability, the GME TX3500S is one of the most advanced 5 Watt UHF CB radios of its kind. Equipped with GME's newest digital scanning technology - ScanSuite™ and an impressive feature list that includes Digital Signal Processing, Advanced Signal Management, Dynamic Volume Control and 19 extra receive channels. With CTCSS and DCS this radio ensures more privacy and less interruption.

The compact size and unique slide-in mounting cradle makes installation simple and our intuitive user interface and controls ensure all of our technology is easy to use and optimises performance across the 80 channels.
Genuine GME 5 year warranty.

Features

ScanSuite
Advanced signal management
Digital signal processing
Dynamic Volume Control
Wide/narrowband receive filters
CTCSS & DCS
Full spectrum backlighting
Open and group scan mode
Selectable priority channel
Active channel transmit in scan
Graphic signal strength meter
Adjustable squelch control
External speaker socket
Die-cast chassis
5 year warranty

Specifications

GENERAL
Compliant Specification	Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX	476.425-477.4125 MHz
Number of Channels	80 UHF CB
Channel Spacing	12.5 kHz
Operation Mode	Simplex or half Duplex with repeater talk around..
Scanning Speed	50 ms per channel (20 channels per second).
Antenna Impedance	50 Ohms nominal
Nominal Battery Voltage	12 volts DC
Operating Voltage Range	10-16 volts DC
Battery Polarity	Negative Earth
Overvoltage Protection	30 volts DC maximum. At 18 volts DC the channel display flashes ‘Hi DC’ for 5 seconds on receive. The RF power is reduced and TX flashes on transmit.
Overcurrent Protection	In-line 2A Fuse
Standard Test Voltage	13.8 volts DC
Reverse Voltage Protection	Diode Crowbar
Frequency stability	±2.5 PPM
Modulation	FM
TRANSMITTER
RF Output	5.0 watts max.
Maximum Deviation	<± 2.5 kHz at + 20 dB limiting
Spurious Emission	< - 70 dBc
Transmit Frequency Response	+6 dB per octave 300 Hz to 3 kHz + 1-3 dB.
Frequency Error	< ± 1.5 kHz
Modulation	FM
Demodulated Audio Signal to Noise	> 45 dB unweighted
Current Consumption	1.7 Amps with 50 Ohm termination
RECEIVER
Intermediate Frequencies	38.85 MHz, 450 kHz
Sensitivity	-123 dBm for 12 dB SINAD unweighted
Selectivity	-6 dB at + 3.5 kHz ?60 dB at ± 12.5 kHz
Intermodulation Immunity	-72 dB
Blocking Immunity	-98 dB
Spurious Response Immunity	70 dB
Audio Signal to Noise	>45 dB
Audio Output Power	3 watts average into 4 Ohms
Current consumption	< 175 mA muted 750 mA Full volume.
Conducted Spurious Emission	< - 70 dBm

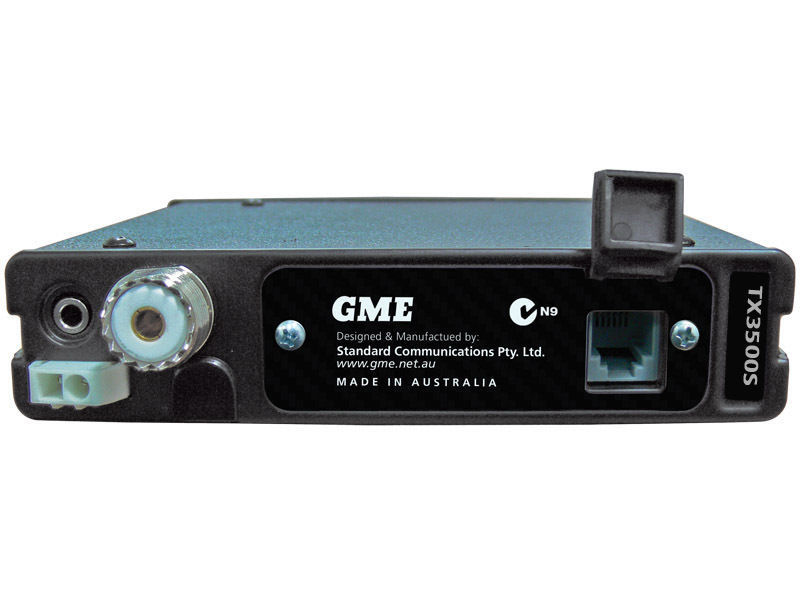

MECHANICAL SPECIFICATIONS
Dimensions	29 (H) x 128 (L) x 117 (D) mm
Weight	450 grams
Antenna	SO239 panel socket
External Speaker	3.5 mm mono jack
Microphone Port	6 Way telephone style with rubber strain relief
