HANDHELD WIRELESS SYSTEM 520-556MHZ

Overview

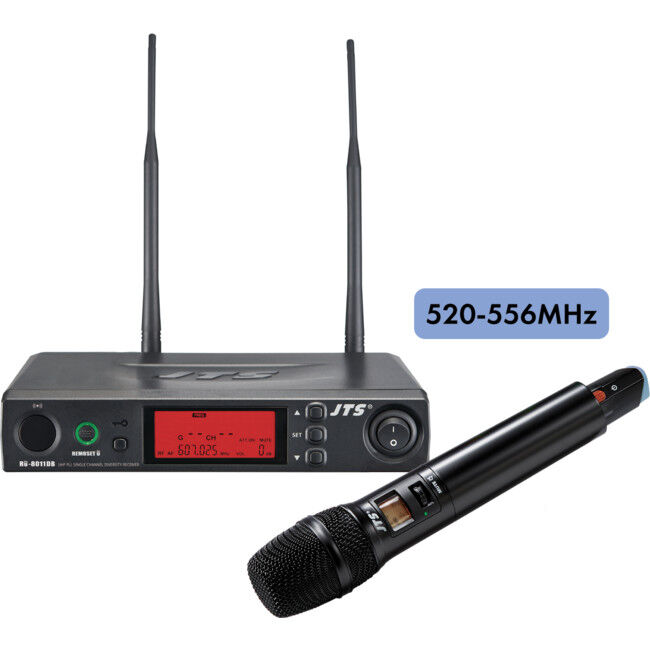

JTS 8011DBKITHB1 single channel handheld mic system

Includes

RU-8011DB Receiver
RU-850LTH Handheld Transmitter

RU-8011DB

RU-8011DB Receiver

This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

SPECIFICATIONS

Frequency Preparation	PLL Synthesised Control
Frequency Setting	JTS patented obstacles-free RF REMOSET
Carrier Frequency Range	UHF 520-556MHz
Channel	Single
Bandwidth	36MHz
S/N Ratio	>105dB(A)
T.H.D	<0.6% @ 1KHz
Rejection Ratio	>80 dB
Antenna Type	BNC Socket
Display	LCD
Display Contents	Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls	Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton (XLR), Frequency Scan (ON/OFF)
Receiving Mode	Antenna Diversity
Audio Output Level	Ref/ ±22.5KHz Dev @ 1KHz Tone ψ6.3 Phone Jack/ −10dBV XLR Jack/ −4dBV (Line) / −24dBV (MIC)
AF Output Impedance	600Ω
Frequency Response	50Hz~16KHz ±2dB
Squelch	Pilot Tone & Noise Mute
Power Supply	DC 12~15V / 300mA
Output Connector	1 independent balanced XLR and one Ø6.3mm unbalanced.
Sensitivity	−95dBm, S/N >80dB
Antenna Booster Power	DC 12~15V / 100mA
Dimension (W×H×D)	212.3mm × 38.3mm × 144mm

Notes: Actual product specifications may vary depending on model and region.

RU-850LTH

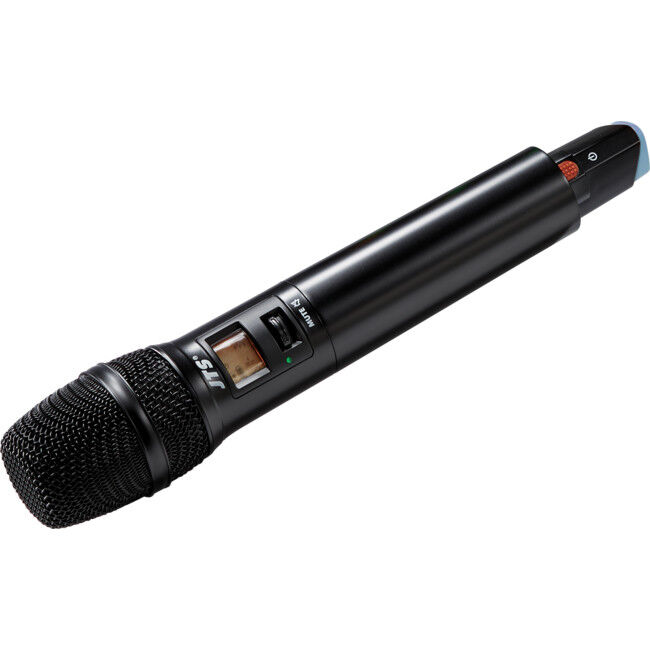

RU-850LTH Handheld Transmitter

This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.

Specifications

Frequency Preparation	PLL Synthesised Control
Carrier Frequency Range	UHF 520-556MHz
Frequency Setting	REMOSET U(Receive)
RF Outputs	Low / High
Stability	< ±10KHz @ Fc ***
Frequency Deviation	±48KHz ***
Display	LCD + LED **
Controls Power	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock **
Spurious emissions	< −50 dBC ****
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery ***
Battery	UM3, AA × 2 **
