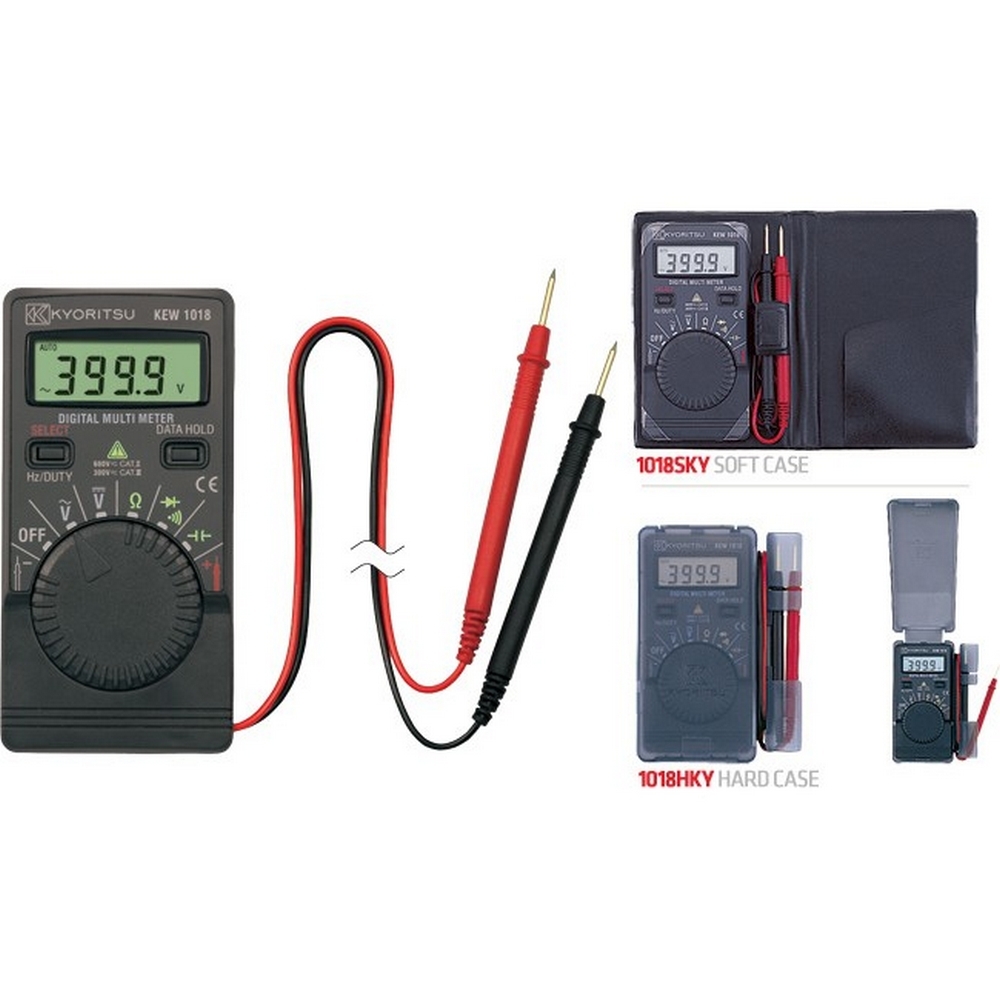

CAT3 RATED KYORITSU HARD CASE DIGITAL MULTIMETER

This is a Digital Multi Meter providing high portabilityby means of stowing the instrument body together with probe in the notebook-size SOFT or HARD cover.

Designed to international safety standards.

  • IEC 61010-1 Measurement CATIII - 300V
  • Pollution degree 2
  • IEC 61010-031 (probe assemblies)

FEATURES:

  • REL function to check the difference of measured values
  • Auto power off function to save battery consumption
  • Data hold function
  • Diode and Continuity check function
  • Auto-ranging function
  • Frequency measurement function
  • DUTY measurement function (Express Pulse width / Pulse period as a percentage)

SPECIFICATIONS:

DC V 400mV/4/40/400/600V (Input Impedance 10MΩ)
5dgt (400mV/4/40/400V)
5dgt (600V)
AC V 4/40/400/600V (Input Impedance 10MΩ)
5dgt (4/40V)
5dgt (400/600V)
Frequency 10/100Hz/1/10/100/200kHz
Ω 400Ω/4/40/400kΩ/4/40MΩ
5dgt (400Ω/4/40/400kΩ/4MΩ)
5dgt (40MΩ)
Diode Test 4V Release Voltage:Approx. 0.4mA Test Current
Capacitance Test 4nF/40nF/400nF/4µF/40µF/200µF
Continuity buzzer 400Ω (Buzzer sounds below 120Ω)
Withstand Voltage 3700V AC for 1 minute
Applicable standards IEC 61010-1 CAT.III 300V
IEC 61010-2-031
IEC 61326-1
Power Source LR44 (1.5V) × 2
Dimensions 107(L) × 54(W) × 10(D)mm
Weight 70g approx.
Accessories LR44× 2
Instruction Manual
1018 (Soft Case)
1018H (Hard Case)

(1018HKY)

12 Months

SKU 1018HKY
Model # 1018H
Barcode # 4560187060045
Brand KYORITSU
Unit Of Measure Each
Assembled Width 0.188m
