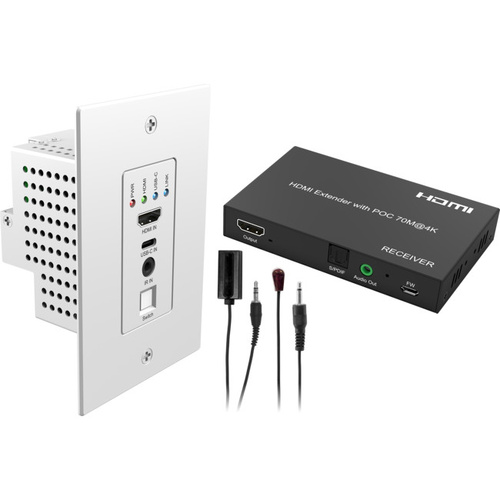

HDMI2.0 and USB Type-C 4K 60Hz up to 70M wall plate extender with IR, RS232, POC, S/PDIF, Audio extraction, PD 65W charging.

Features

  • HDMI2.0 + Type-C Extender in North American standard Wall plate to Box Kit
  • Support HDMI or USB-C input, with the Switch button on the wall plate
  • Transmit up to 70m(229ft) under 4K60Hz YUV4:4:4 or 1080p over a single Cat5e/6 cable
  • Type-C input(USB3.0) supports 4K60hz, PD power charging(65W max)
  • HDCP2.2/ 1.4 Compliant
  • Support EDID management
  • Support HDR10, POC and RS232 pass-through
  • Support one-way wide-band IR pass-through
  • Support S/PDIF and PCM2.0 analog audio extraction(at RX)
  • Support Dolby True HD, PCM, and DTS-HD master audio 7.1CH
  • Support RS232/ Micro USB port for firmware upgrade
  • Support auto-detect and switch to either one of the sources when there is a signal

Note: The USB Type-C only does the video transfer and PD charging, no data transfer.

Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables if you are running a cable 15 metres or more.



Sepcifications

Operating Temperature Range

-5 to +40°C(+23 to +104°F)

Operating Humidity Range

5 to 90%RH (No Condensation)



Connectors on Transmitter

HDMI Input x 1, USB-C Input x 1
Power DC24V Phoenix terminal x 1, RS232 Phoenix terminal x 1 IR Receptacle x 1(for IR RX )



Connectors on Receiver

HDMI Output x 1, RS232 Phoenix terminal x 1, S/PDIF x 1, PCM2.0 x 1,
IR Receptacle x 1(for IR TX), FW x 1, Power DC12V x 1

Resolution outputs

4k@60hzYUV4:4:4/ 4k@30HZ/1080p/1080i/720p/576p/576i/480p/480i

Audio format supported

DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM etc.

Output Video Signal

HDMI

Dimension (L×W×H)

TX: L106mm×W46mm × H60mm; RX: L110mm × W68mm × H13mm

Power supply

DC 24V/5A Power supply

Power consumption

100W(MAX)

Transmission Distance

up to 70m under 4K@60Hz YUV4:4:4, 70m under 1080P@60Hz

Net Weight

TX:130 g; RX:190g

What is in the box?

  • 1 x HDMI Wallplate Transmitter
  • 1 x HDMI Receiver
  • 1 x IR TX Emitter
  • 1 x IR RX Receiver
  • 1 x 24V/5A DC power supply with Phoenix connection
  • 1 x User Manual
  • 1 x Decoration panel
  • 1 x pair x mounting ear for receiver
  • 1 x pair x phoenix connector
  • 1 x set of screws

(HDC6WP2)

SKU HDC6WP2
Model # HDC6WP2
Barcode # 9328202036254
Brand PRO2
