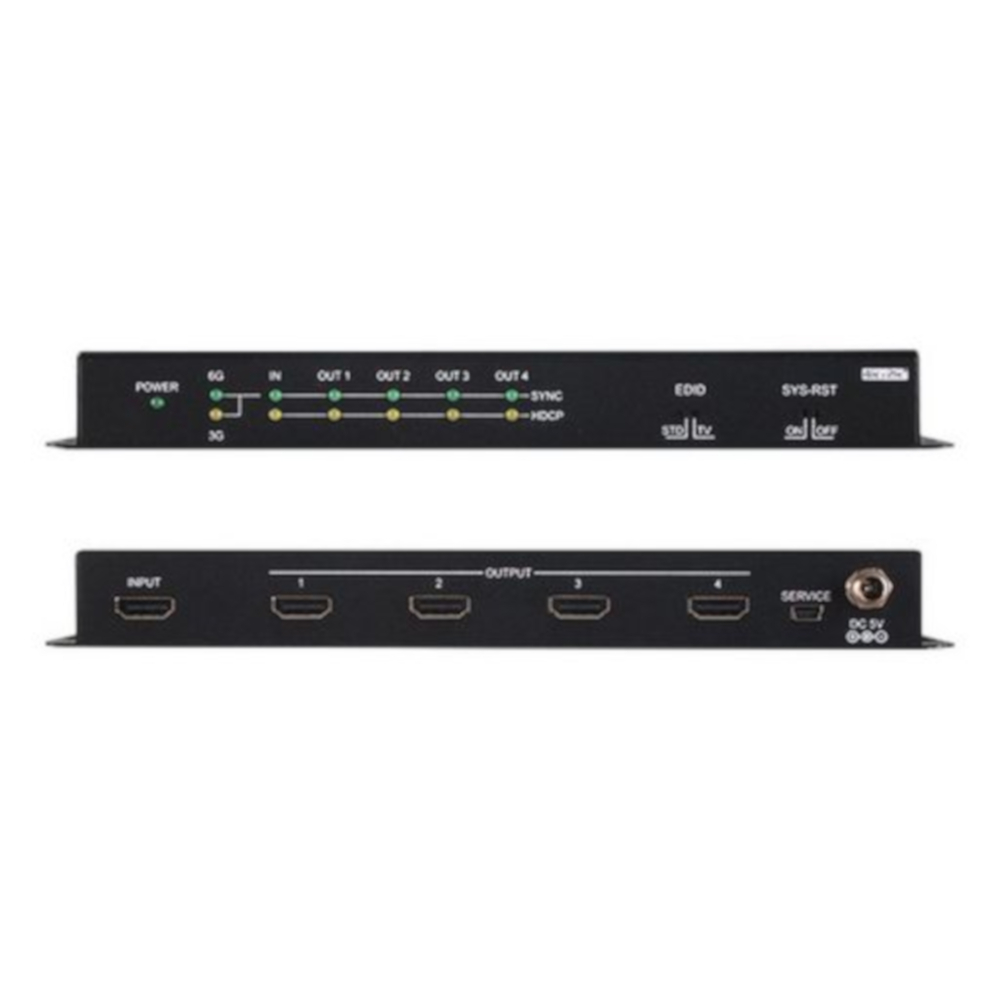

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K 60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the HDMI outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply colour space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs. HDMI with HDR, 3D & 4K 60Hz support, DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant 2x HDMI outputs in CPLUS-V2T or 4x HDMI outputs in CPLUS-V4T, 1x HDMI input Supports up to 4K UHD (18Gbps, 4K 50/60Hz 4:4:4, 8-bit) video signals Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats Automatic 4K to 1080p down-scaling and colour space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID Independent HDCP management engine for each output ensures stable HDCP performance Simple to use EDID management options Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays Controllable via front-panel switches

Specifications
