SC11HD-V2 HDMI 4K Down-Scaler (4K 50/60Hz support) with Audio Embedder / De-Embedder

Our Blustream SC11HD-V2 is a HDMI 4K scaler, designed forinstallations with multiple displays that support different maximum video resolutions.

The SC11HD-V2 is ideal for multi-room installations withmultiple output resolution requirements.

The SC11HD-V2 supports down-scaling of 4K (inc HDR) videoto 1080p and supports HDCP2.2 with advanced EDID management.

It also features either de-embedding or embedding audio within the HDMI signal path.

Key Features

• HDMI 4K video scaler
• Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
• HDMI output will downscale 4K@24/25/30Hz to 1080p@24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p@50/60Hz
• Can be configured to work as either a HDMI audio de-embedder or audio embedder
• HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (2ch PCM only)
• Embed analogue L/R 2ch audio input onto HDMI output
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced EDID management
• HDCP2.2 support
• CEC and ARC pass through

Specifications

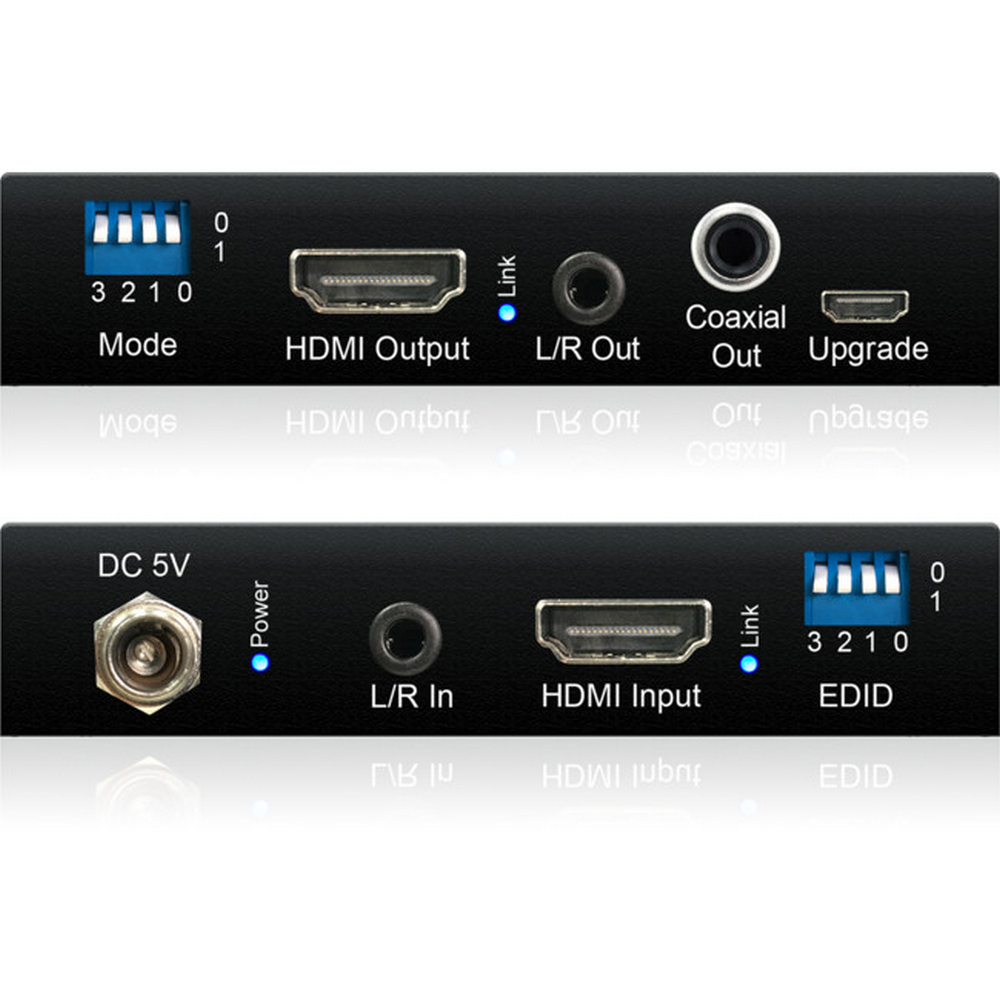

• Audio Input Connectors: 1x Analogue Left/Right audio (3.5mm stereo jack)
• Audio Output Connectors: 1x RCA (SPDIF) & 1x Analogue Left/Right audio (3.5mm stereo jack)
• Video Input Connectors: 1x HDMI Type A
• Video Output Connectors: 1x HDMI Type A
• EDID: 4-PIN DIP switch
• Mode: 4-PIN DIP switch
• Product upgrade: 1x Female Micro USB
• Dimensions including connections (W x H x D): 83mm x 15mm x 83mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°Cto 60°C)
• Power Supply: 5V/1A DC

Box Contents

1 x SC11HD-V2
1 x 5V/1A DC power supply
1 x Mounting kit
1 x User manual
