FEATURES

SPECIFICATIONS


Operating Temperature Range

-5 to +35

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Support Video format

4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
3D video

Support Video Color Format

xv-YCC/deep color 36bit

Support Audio Format

PCM / DTS-HD Master Audio / Dolbytrue-HD etc.

Data transfer speed rate

18Gbps (Maximum)

Power consumption

2watts(Maximum)

Dimension (L×W×H)

104.4x64x28.3mm

Net Weight

175g

Note: Specifications are subject to change without notice. Mass and dimensions are approximate.

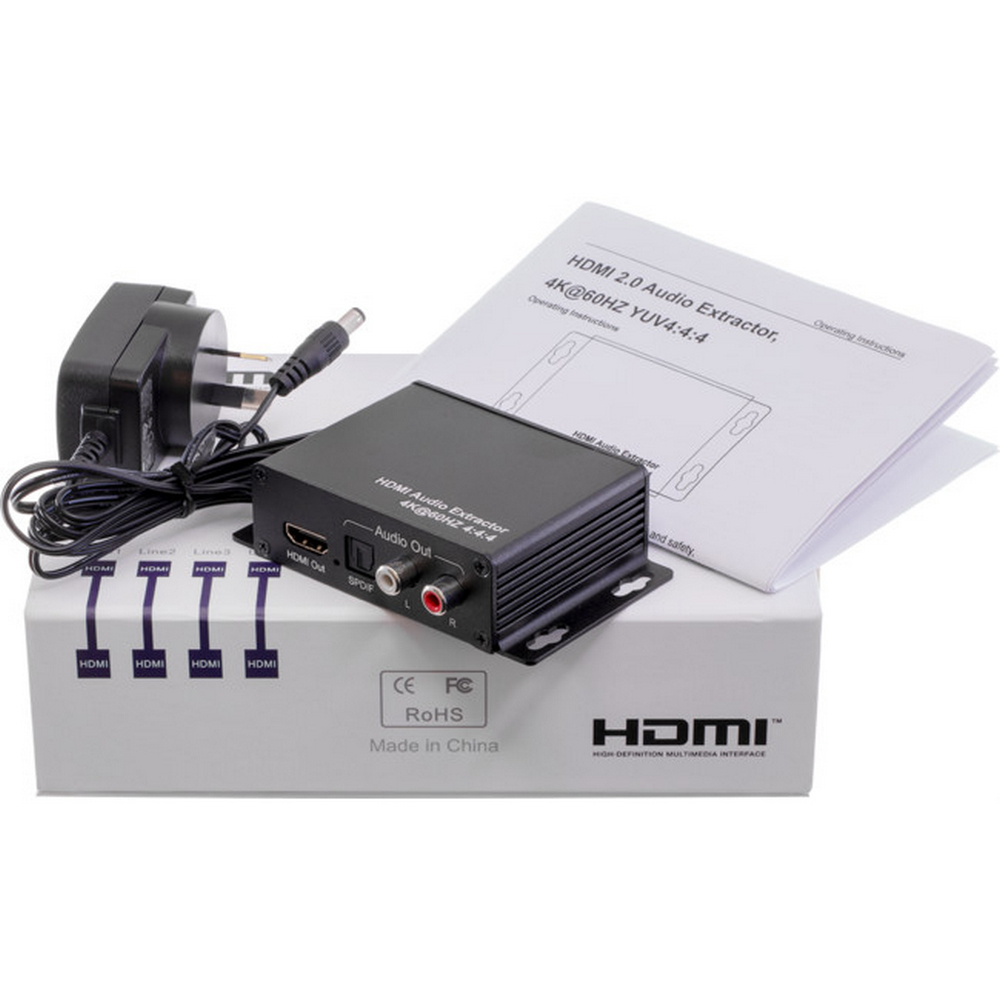

PACKING CONTENTS

  • Three Audio EDID Settings: Auto/2.0 CH/5.1CH
  • Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
  • Support PCM and Dolby DTS
  • Supports resolution up to 4K@60Hz YUV4:4:4
  • Supports deep color up to 36bit
  • HDCP2.2/1.4 Compliant
  • Support CEC
  • Support firmware updating through USB port

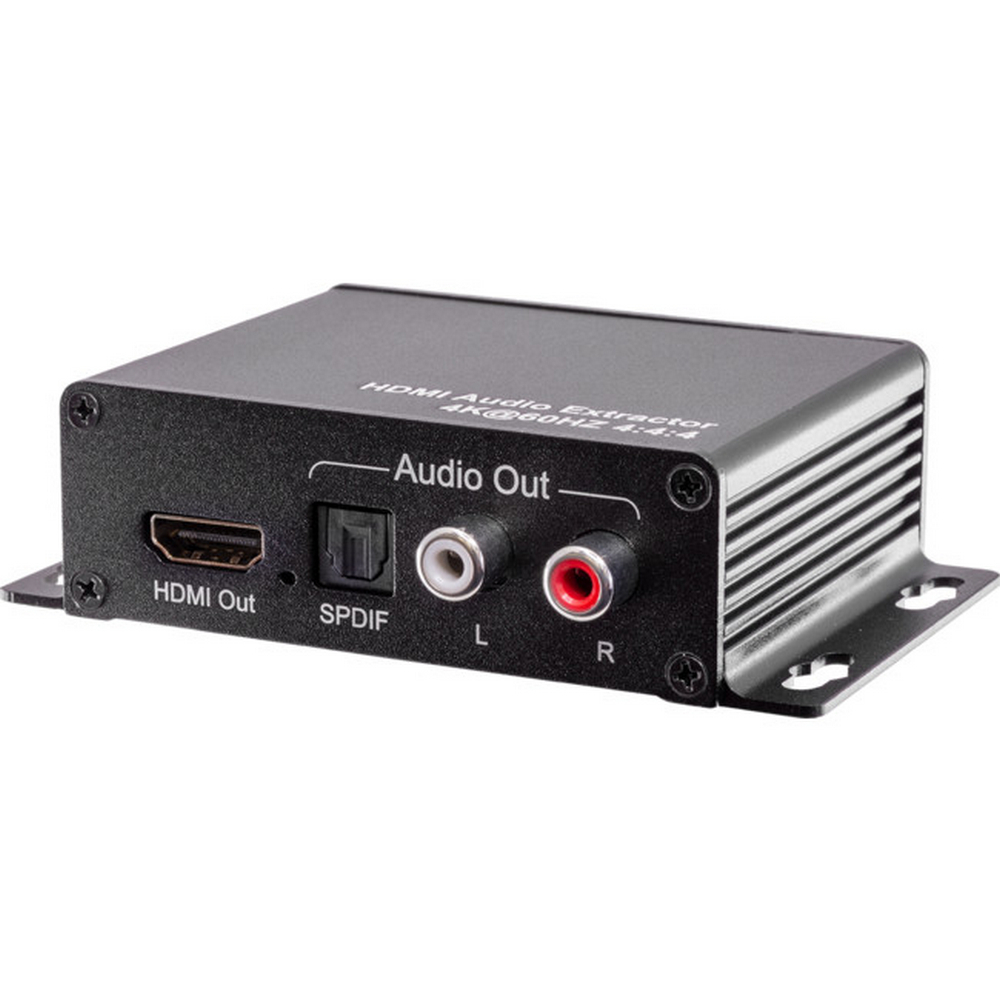

    1. Main Unit. Mini 4K HDMI Audio Extractor
    2. DC 5V Power Supply
    3. Operating Instructions

(HA02)

12 Months

SKU HA02
Model # SX-HC03
Barcode # 9328202031112
Brand PRO2
Unit Of Measure Each
Assembled Width 0.394m
