Features

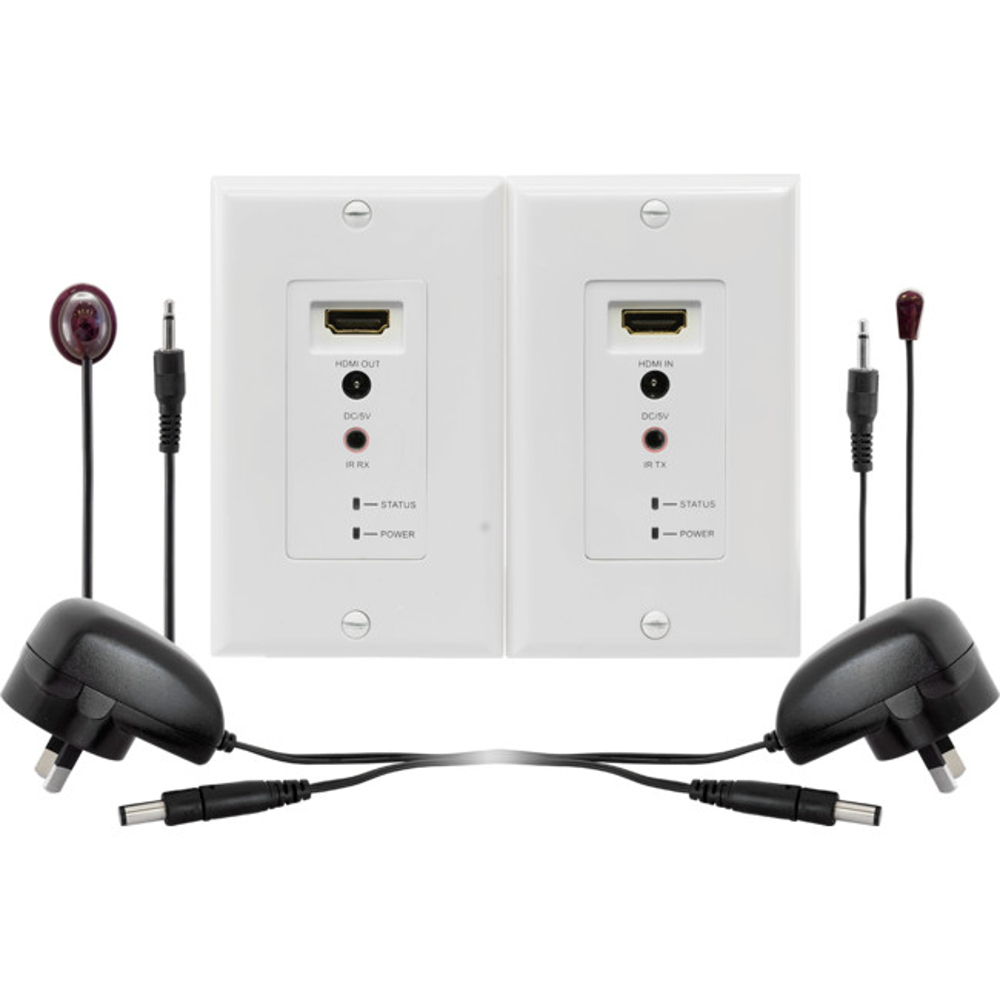

  • Each set includes one transmitter and one receiver
  • Modular design
  • Connect with single Cat5E/6 cable to reach a longer distance than HDMI cable
  • Transmission distance could be up to 60m with 1080P video format
  • Auto-adjustment of feedback, equalization and amplify
  • Up to 2.25Gbits signal rates in support of 1080P display
  • With Infrared control signal passing through
  • Compatible with 3D format

Specifications

Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90% RH (No Condensation)
Input Video Singal 0.5-1.0 Volts P-P
Input DDC Signal 5 Volts p-p(TTL)
Support Video Format DTV/HDTV: 480i/576i/480P/576P/720P/1080i/1080p/3D video format
Video Output HDMI
Support Audio Format DTS-HD Master Audio, Dolby true-HD etc.
Transmission Distance
  • 1080P 8-bit 60m (Maximum)
  • over CAT5E/CAT6/24AWG/Solid (recommend to use 23AWG Cat6cable)
Power consumption 3watts (Maximum)
Dimension (LxWxH) 115x70x35mm
IR wavelength & Frequency Wavelength: 940nm, frequency 38kHz
Net Weight 260g (Pair)
Power supply 2 x DC/5V 1A (included)

(HDC6WP)

12 Months

SKU HDC6WP
Model # SX-EW60-3DIR
Barcode # 9328202017956
Brand PRO2
Unit Of Measure Each
Assembled Width 0.468m
