Features

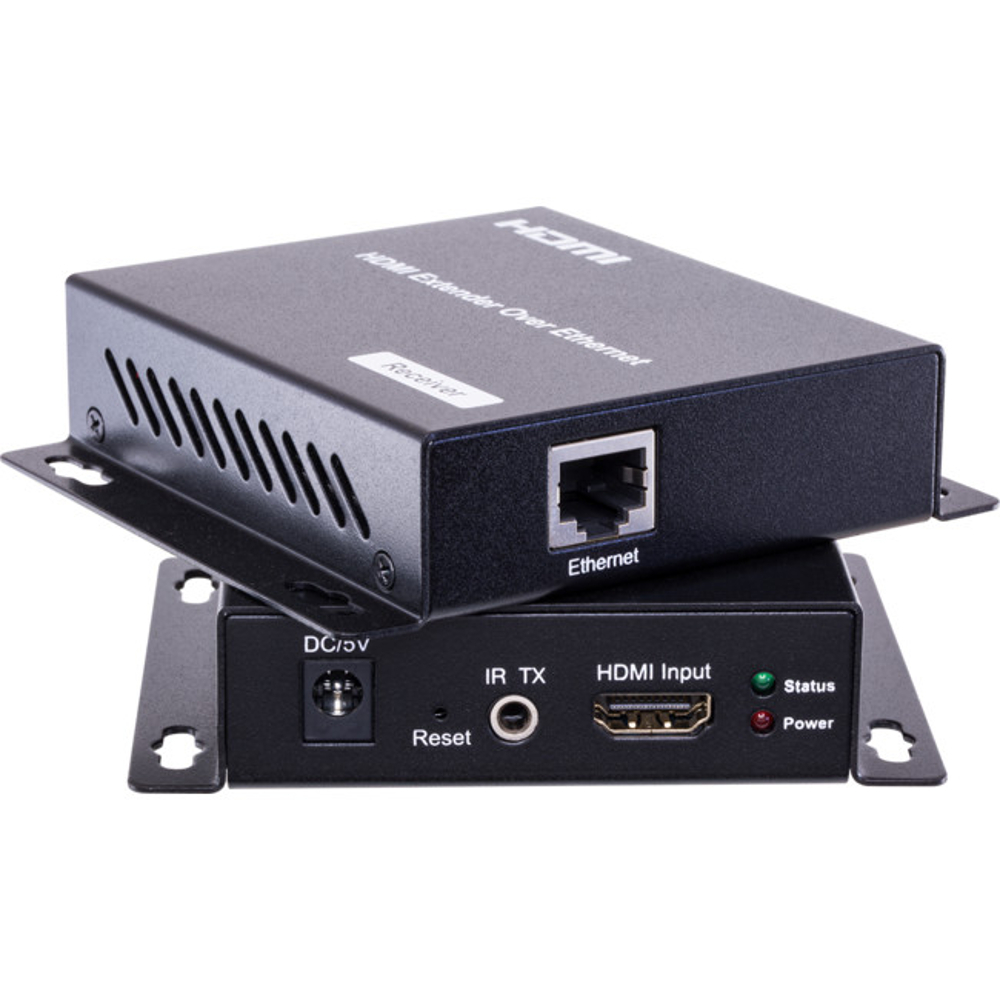

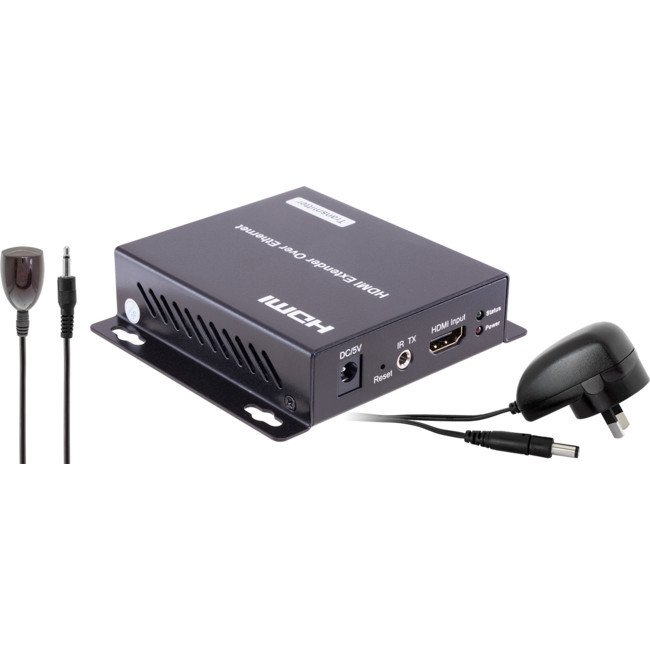

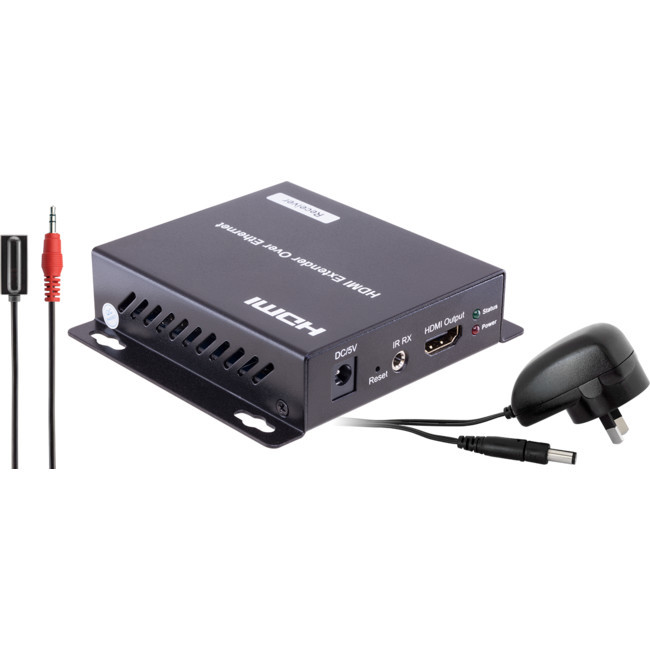

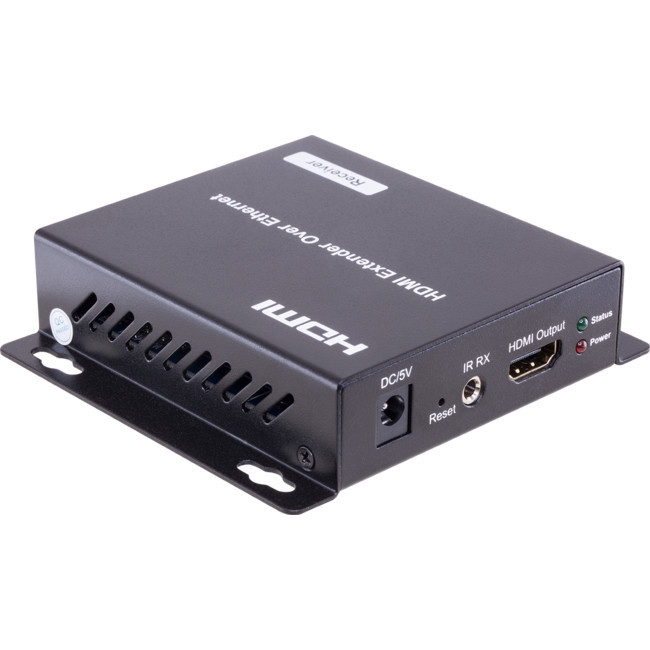

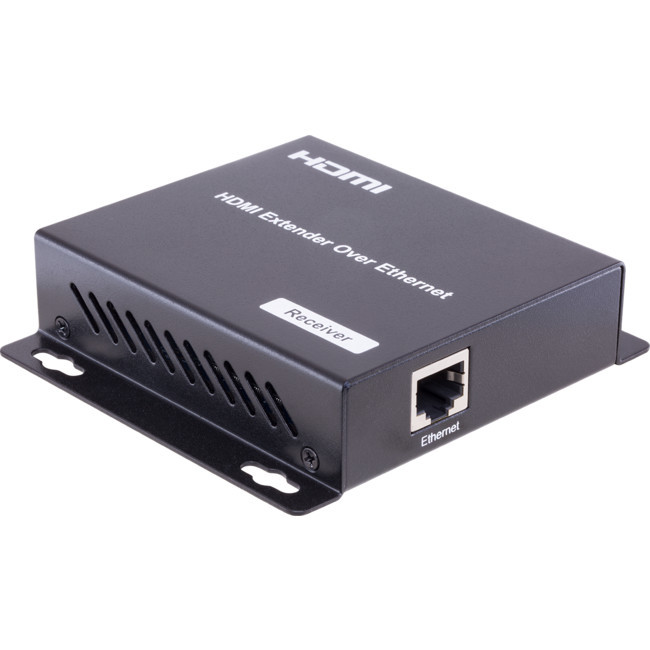

HDMIIPECOV2 is a budget option for extending HDMI source over network. It supports one to one and one to many operation.

  • Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable
  • Supports point to point, point to many
  • HDCP compliant
  • With wideband IR (38-56k Hz) control
  • Supports TCP/IP protocol
  • With mounting ears
  • Default TX IP: 192.168.168.55
  • Default RX IP: 192.168.168.56



Specifications

Operating Temperature Range -5 to 35°C
Operating Humidity Range 5 to 90%RH (No condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Supported Video Format DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Transmission Distance 120m: 1080p 8-bit over CAT5e/CAT6 24AWG solid cable
Power Consumption TX: 3 Watts, RX: 3 Watts
Dimension 103.5(L) x 93.5(W) x 24.6(H)mm
IR Frequency 38K-56KHz
Net Weight TX:220g, RX:220g

(HDMIIPECOV2)

12 Months

SKU HDMIIPECOV2
Model # SX-EX22
Barcode # 9328202001993
Brand PRO2
Unit Of Measure 1
Assembled Length 0.103m
Assembled Height 0.024m
