Features

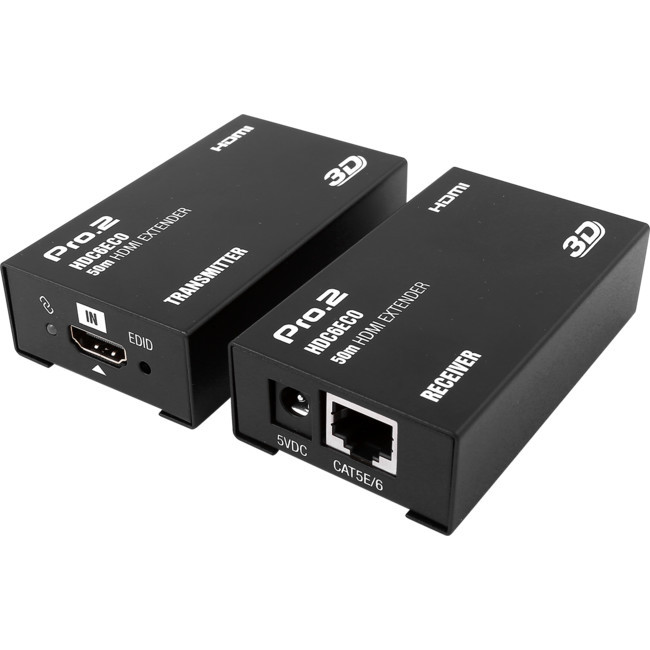

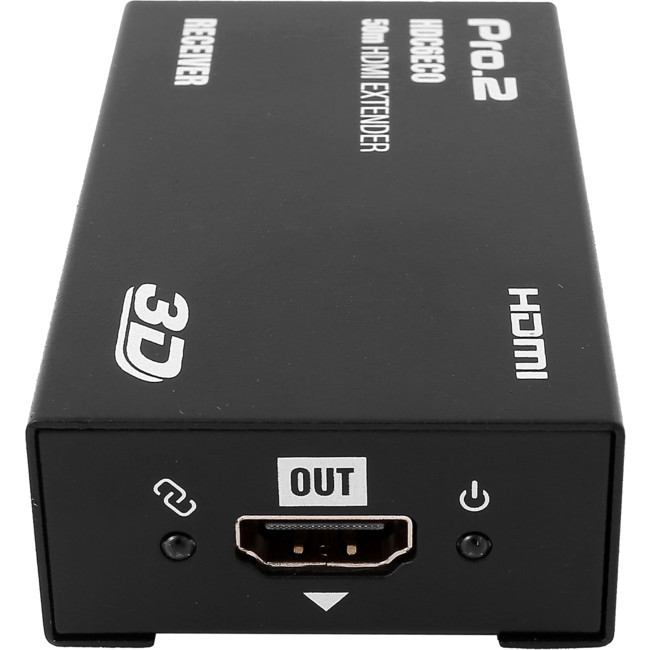

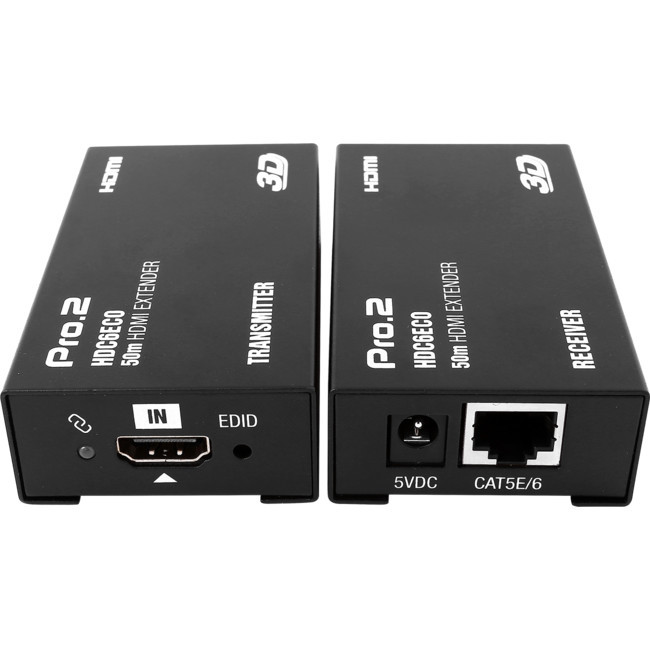

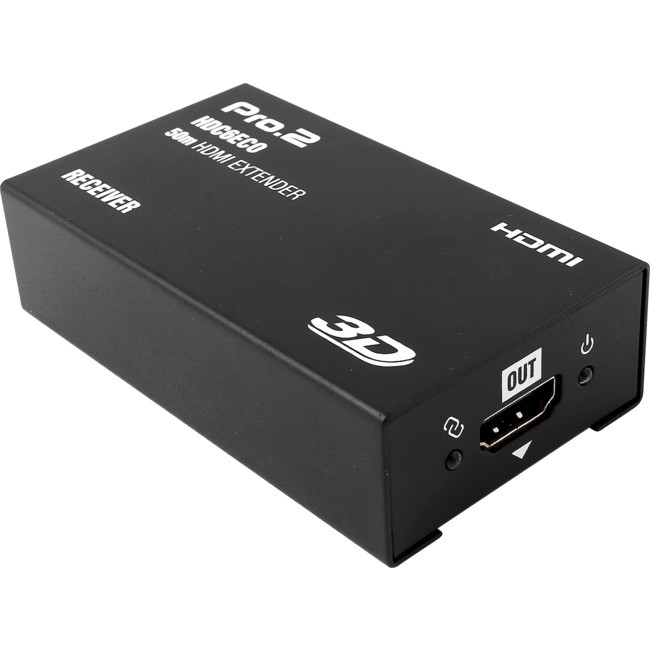

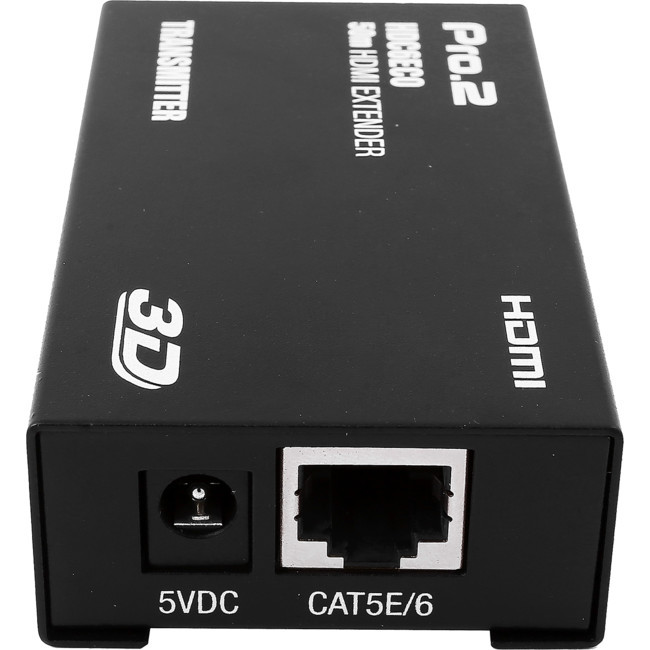

  • Each set includes one transmitter and one receiver
  • Easy installation, no need to do extra setting
  • Transmit HDMI signal over 50m via single Cat5e/6 without signal loss
  • The CAT5e/6 follows standard of IEEE-568B
  • Support high definition resolution up to Full HD 1080p
  • Support Dolby True-HD, DTS-HD Master audio
  • EDID reading and saving from display
  • Bandwidth can be up to 6.75 Gbps
  • Deep colour up to 36 bit
  • 3D compatible
  • 2x DC 5V 1A power supply (included)
  • 4K/2K incompatible

Specifications

Operating Temperature Range −5 to +35°C
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video Format DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P
3D video
Video Output HDMI ,HDCP
Support Audio Format DTS-HD Master Audio Dolby True-HD etc.
Transmission Distance 1080P 8-bit 50m (Maximum) over single CAT5E/6 /24AWG/Solid
Power consumption 5 watts (Maximum)
Dimension (L×W×H) 83x48x25mm
Net Weight 250g (Pair)

(HDC6ECO)

SKU HDC6ECO
Model # SX-EX11
Barcode # 9328202018540
Brand PRO2
Unit Of Measure each
Assembled Width 0.568m
