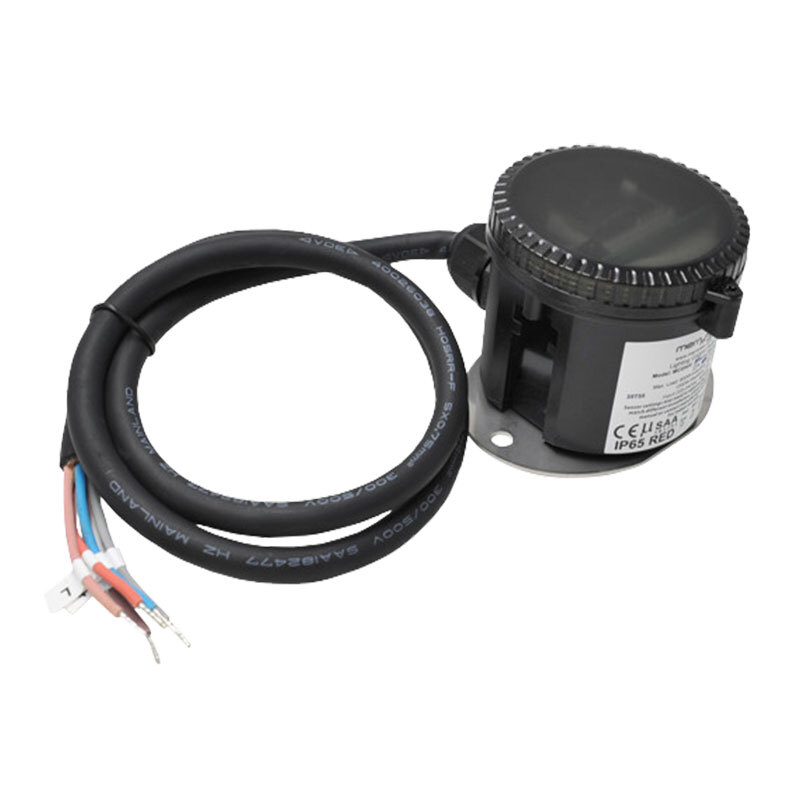

High Bay Intelligent Motion Activated Switch

The ENSA-MS8 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection, dimming interface and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications. Add three step energy saving to any light with sensor switches:

• Daylight sensor: Activates motion sensor when lux levels fall below limit
• Motion sensor: Detects movement, turns light on only when necessary
• On-timer: Light-on duration is set only as long as is required

Features

• Automatically activate and deactivate lighting for energy efficiency
• Suitable for high bay LED lights
• Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min)
• 360° (ceiling) / 150° (wall) (15m height) microwave detection
• Purpose built for high factory ceilings, IP65 rated for outdoor use

Specifications

• Daylight Sensor: Yes
• Motion Sensor Type: Microwave
• Input Voltage: 220 ~ 240VAC 50Hz
• Power Consumption (Sensing Mode): <1W
• Max. Rated Load (Resistive/Inductive): 1200W / 800W
• Daylight Sensing: 5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (Ambient light diffusion)
• Motion Detection Area: 360° (Ceiling) / 150° (Wall) 15m
• Motion Detection Adjustment: 100% / 75% / 50% / 25%
• Recommended Installation Height: 15m
• Motion Detection Speed: 0.3 ~ 1m/s
• On-timer Delay: 5s ~ 30min
• Stand-by Period: 5s / 5min / 10min / 30min / 60min / Infinite
• Stand-by Dimming: 50% / 30% / 20% / 10%
• Ingress Protection: IP65
• Operating Environment: -35 ~ 55°C
• Mounting Type: Ceiling/Wall
• Dimensions: Ø73 x 62mm
• Load Capacity: 120VAC: 4A; 220-277VAC: 3A
• Rec. Installation Height: 15m Max.
• Warranty (Years): 3
