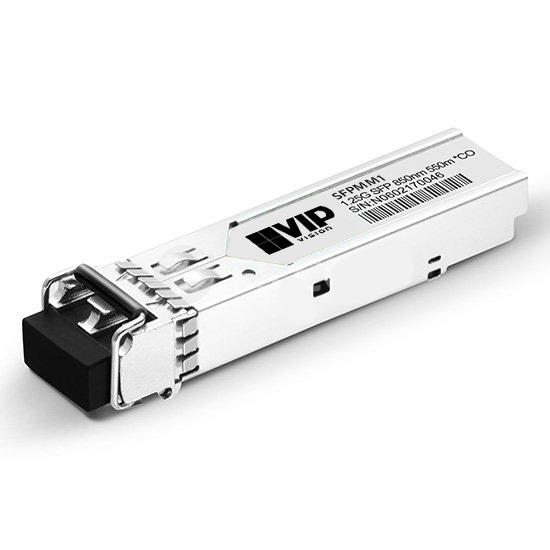

Mini GBIC / SFP Multi-mode Fibre Adapter (MMF)

The SFPMM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.

Features

  • Mini GBIC / SFP optical fibre adapter
  • Transfer data over optical fibre at up to 1.25Gbps
  • SFP (Small Form-factor Pluggable)
  • Compatible with OM1, OM2, OM3 & OM4 multimode fibre
  • Up to 550m transmission distance over OM2 MMF (300m over OM1 MMF)
  • 850nm VCSEL laser transmitter
  • Hot-pluggable, allowing for installation and removal while the system is running
  • Built-in digital diagnostic functions, including optical power monitoring

Specifications

Interface

  • Cable Type: Multi-mode Fibre
  • Form Type: SFP (Small Form-factor Pluggable)
  • Interface: LC duplex
  • DOM Support: Yes
  • Max Bit Rate: 1.25Gb/s

Transmitter / Receiver

  • TX Power: -9.5 ~ - 3dBm
  • Protocols: SFF-8472 MSA Compliant, IEEE 802.3z
  • Wavelength: 850nm
  • Receiver Sensitivity: < -17dBm

Environment

  • Power Supply: <3.5V / 300mA
  • Operating Environment: -40° ~ 85°C / RH95% (max)
  • Max Cable Distance: 550m over OM2 MMF (50/125µm), 300m over OM1 MMF (62.5/125µm)

(SFPMM1)

SKU SFPMM1
Model # SFPMM1
Brand VIP Vision
