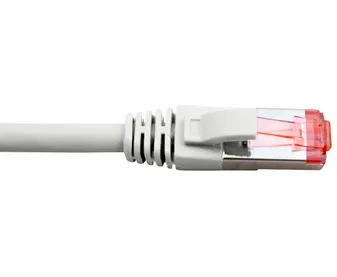

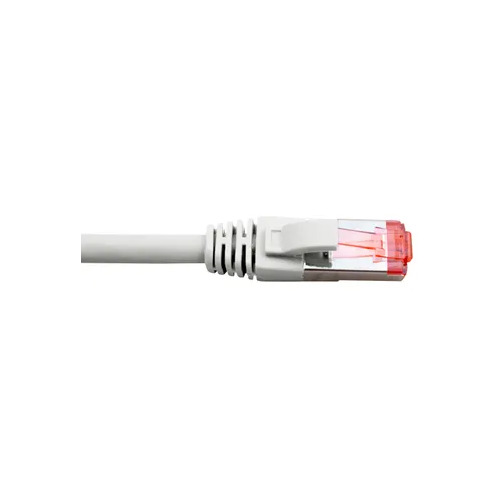

CAT6a White Patch Lead 3m
- Category 6a (CAT6 Augmented) is defined at frequencies of up to 500Mhz, twice that of CAT6.
- At these high speeds cross talk, in particular alien cross talk, present a significant issue to reliable operation.
- Shielding is particularly critical in environments with increased levels of noise such as hospitals, telco operations infrastructure, radio and television broadcast applications, X-ray theatres and in the vicinity of mains power transmission lines, switch yards and substations.
- Hypertec Shielded CAT6a Patch Lead cables feature double shielding where individual twisted pairs are foil shielded, before a final braided wire shield is wrapped around the complete cable bundle.
- All these shields are connected to the metal frame, which is an integral component of the Hypertec RJ connector.
- Keystone jacks
- Keystone couplers
- Unloaded keystone patch panels
- Solid conductor cable
- Patch leads
Features and Benefits
- Individually tested to ensure Cat6a component level compliance
- Fully shielded to minimise noise and ansure Cat6a performance is met
- Backward compatible with Cat5, Cat5E and Cat6
- Toolless termination of jacks reduce installation time
- Ground wire kit is included with patch panel for quick and easy earthing
- Patch leads are overall and individually shielded S/FTP for maximum Cat6a performance
- Factory tested to CAT6A Patch Lead performance standard to ensure quality and reliability
- Shielding: Overall braid plus each pair individually foil shielded
- Compliance: RCM/A-Tick (S008), TIA-568-C.2 Cat6A, RoHS
- Backward-compatible with CAT5, CAT5e and CAT6
- Jacket: White LSZH
Conformant Standards
- A-Tick certified
- ETL conformant to TIA/EIA 568-C
- ISO/IEC 11801 & EN 50288
- ROHS Compliant
Shielded Patch Lead
- Pack quantity: 1
- Wiring Scheme: T568A
- Shielding: Individually shielded pairs S/FTP
- Jacket material: LSZH
- Conductor size: 26AWG (7 strands)
- Conductor Material: Bare Copper
- Fully moulded strain relief boots
- Lead Diameter: 6.0mm nominal OD
(HCAT6AWH3)
12
SKU | HCAT6AWH3 |
Model # | HCAT6AWH3 |
Barcode # | 9318674080015 |
Brand | HYPERTEC |
Assembled Length | 3.000m |
Assembled Height | 0.010m |
Assembled Width | 0.010m |
