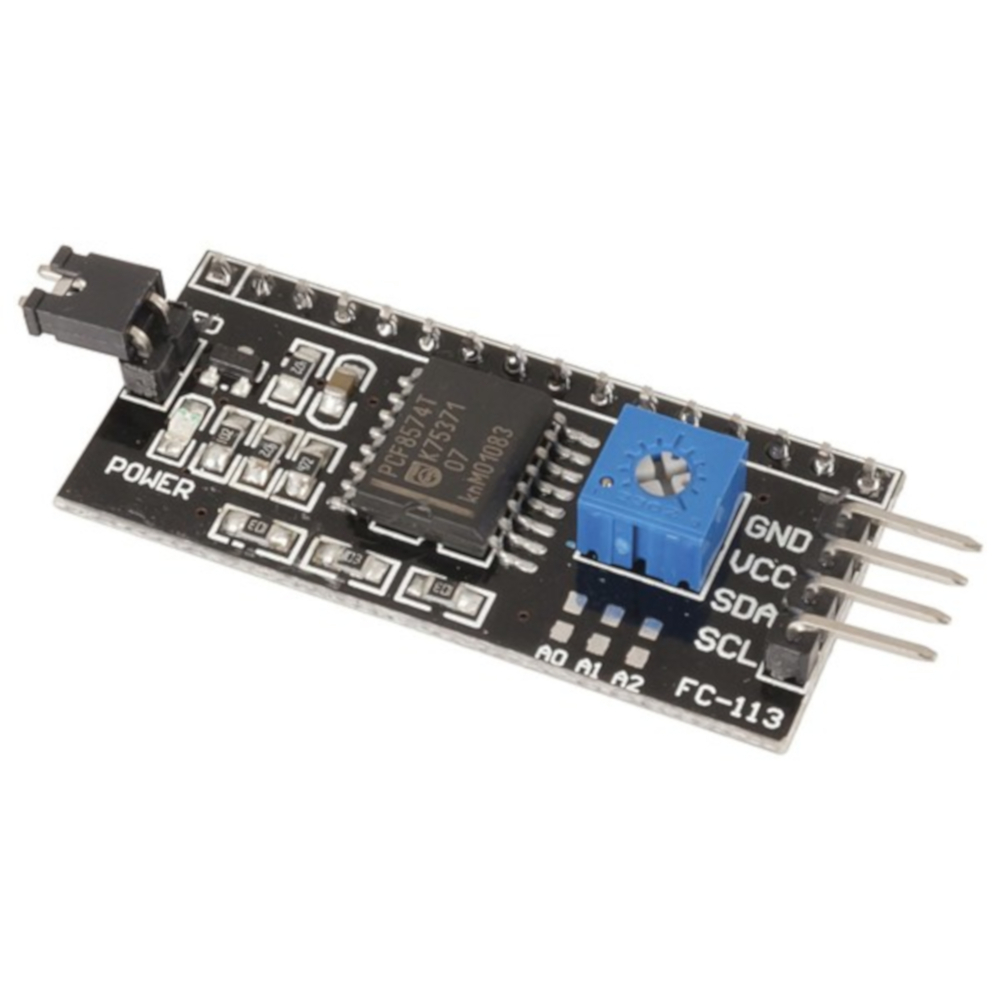

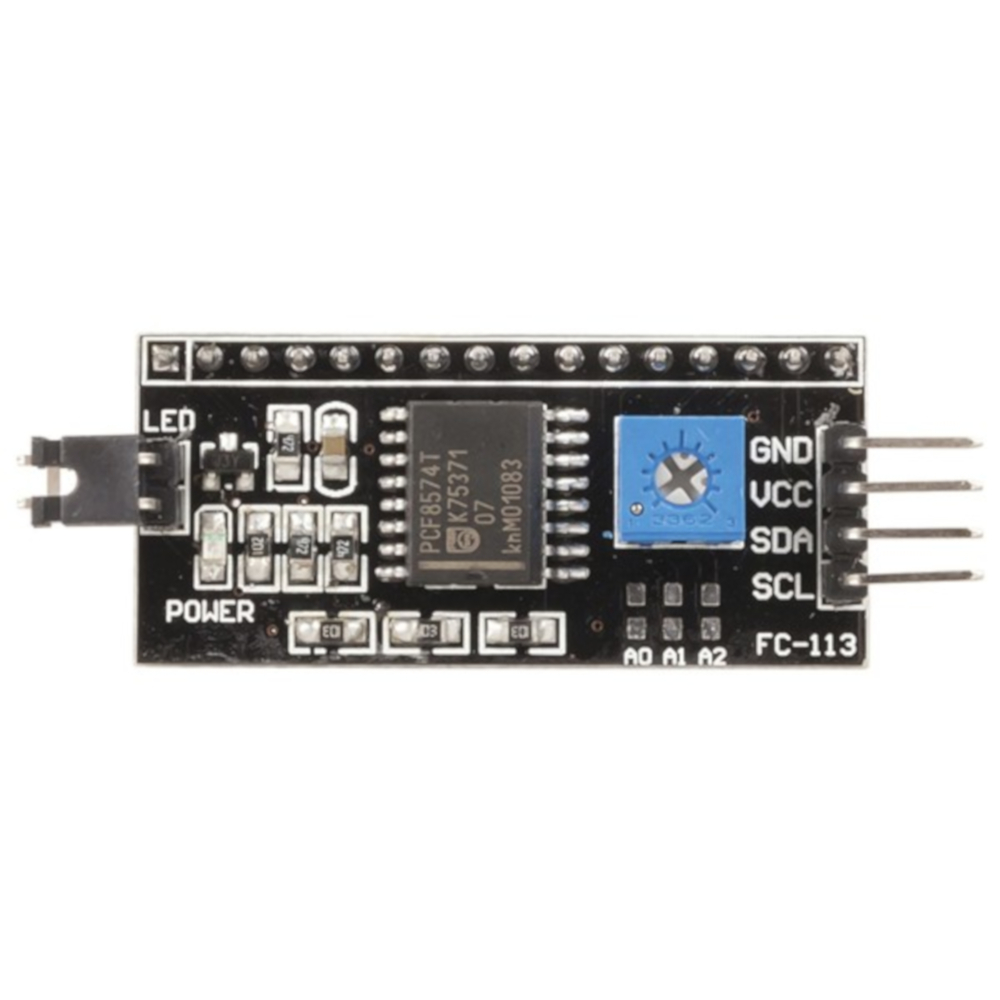

The HD44780 compatible LCDs are great for displaying text and simple graphics, but quickly use up your available microcontroller pins. Using the PCF8574 port expander IC, you can control these LCDs using just 2 pins via I2C. The breakout board offers pin multiplexing, contrast control pot, LED backlight jumper control, and up to 8 unique addresses via solderable jumpers.

Features:

 - Designed to solder directly to 16pin SIL headers
 - Mounts behind LCD panel, taking up minimal space
 - Arduino libraries offer direct LCD control

Specifications

Length : 50.0mm

Width : 25.0mm

Height : 10.0mm

(XC3706)

12 months

SKU XC3706
Model # XC3706
Barcode # 9319236737088
Brand BOURNE
Unit Of Measure 1
Assembled Length 0.050m
Assembled Height 0.010m
Assembled Width 0.025m
