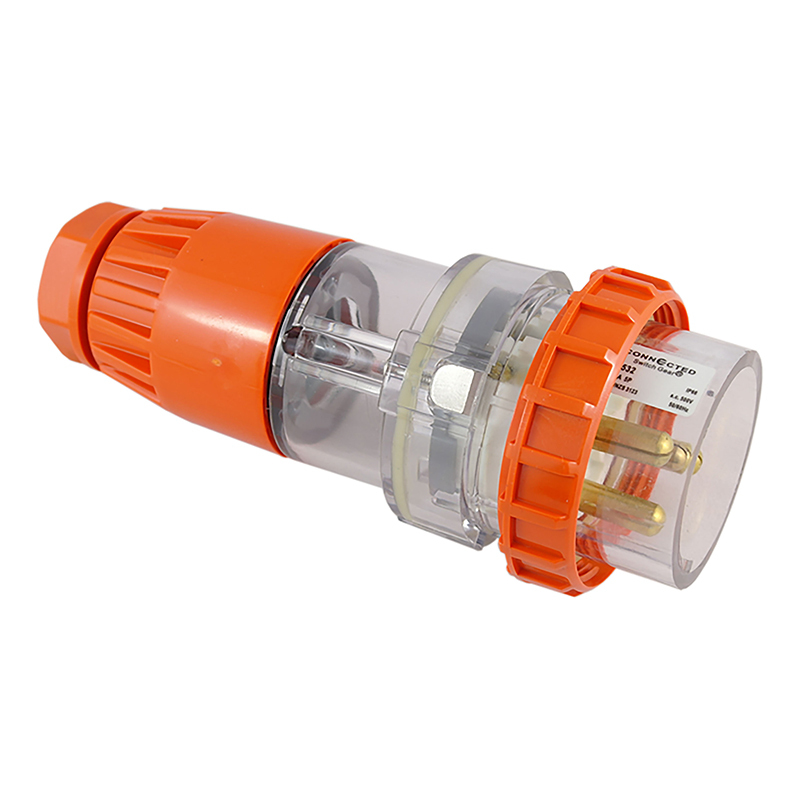

Impact Series Industrial 5-Pin Straight Plug (32A 500V) CS-P532

The Impact Series from Connected Switchgear features industrial strength plugs made from impact and chemical resistant material. The Impact Series plug is fitted with a captive ring to secure sockets to achieve an IP66 weather protection rating.


  • 5 pin three phase straight plug
  • Transparent impact and chemical resistant housing
  • With fitted captive ring for IP66 rated ingress protection
  •  Internal cable clamp to prevent cable twisting
  • Round pin configuration, suitable for a flexible hose
  • Minimum cable entry diameter: 10mm  Maximum cable entry diameter: 27mm
  • Minimum terminal capacity: 2.5mm, Maximum terminal capacity: 16mm
  • Rating (Amps): 32A
  • Rated Voltage: 500VAC
  •  Rated Frequency: 50Hz/60Hz
  •  Operating temp; -40°C - 80°C
  • Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
  • SAA approved.

(CS-P532)

SKU CS-P532
Model # CS-P532
Brand Connected Switchgear
