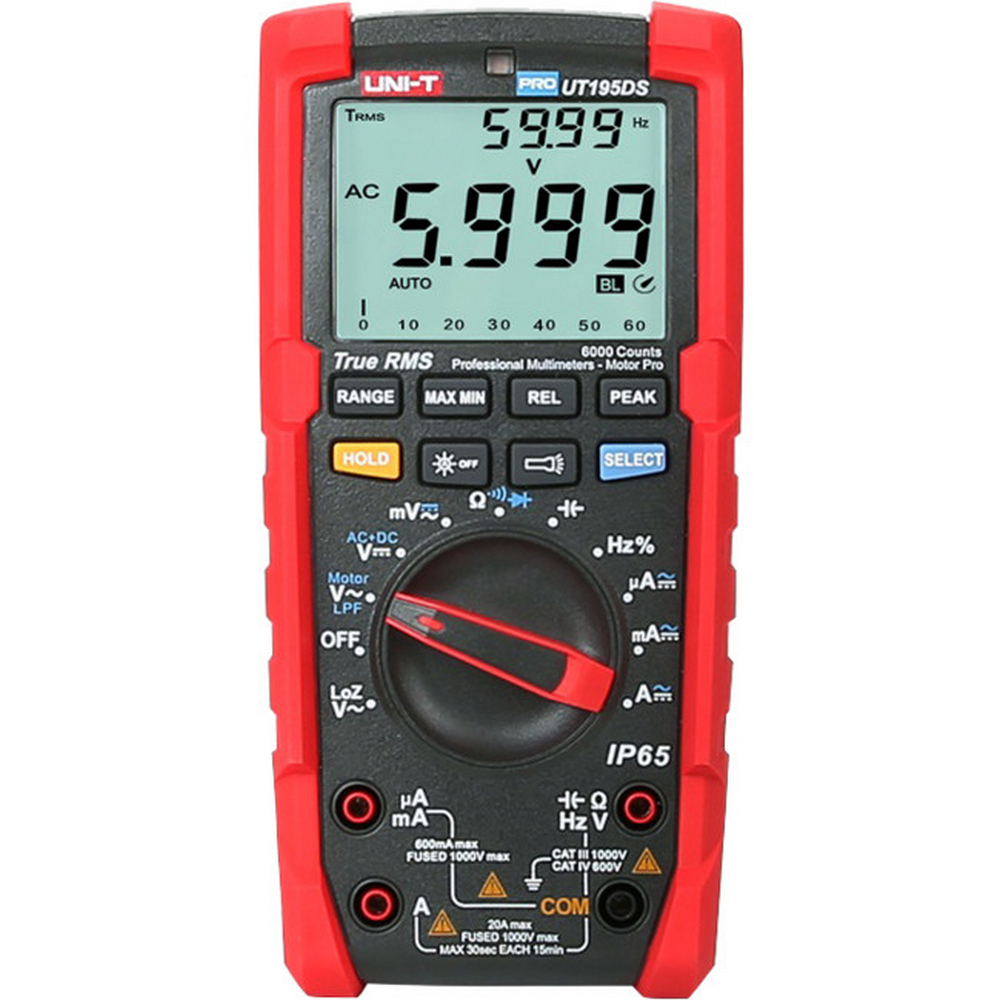

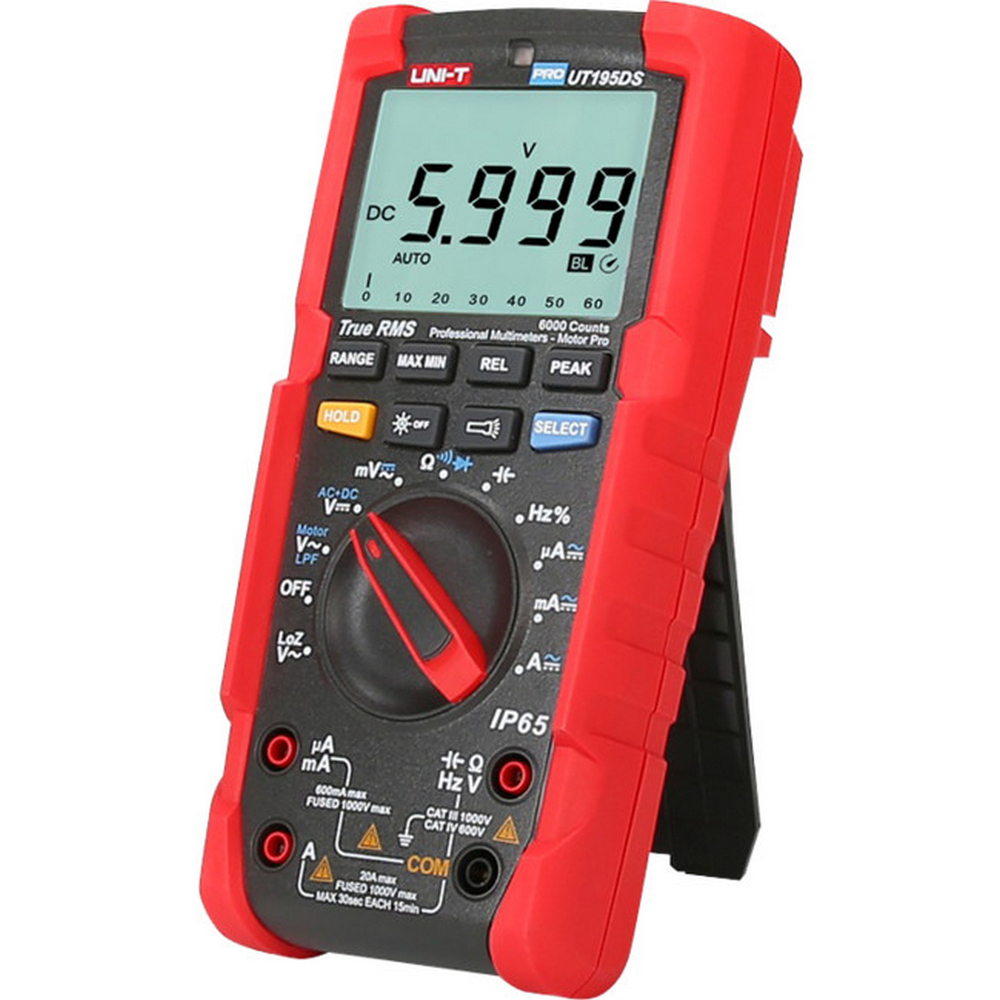

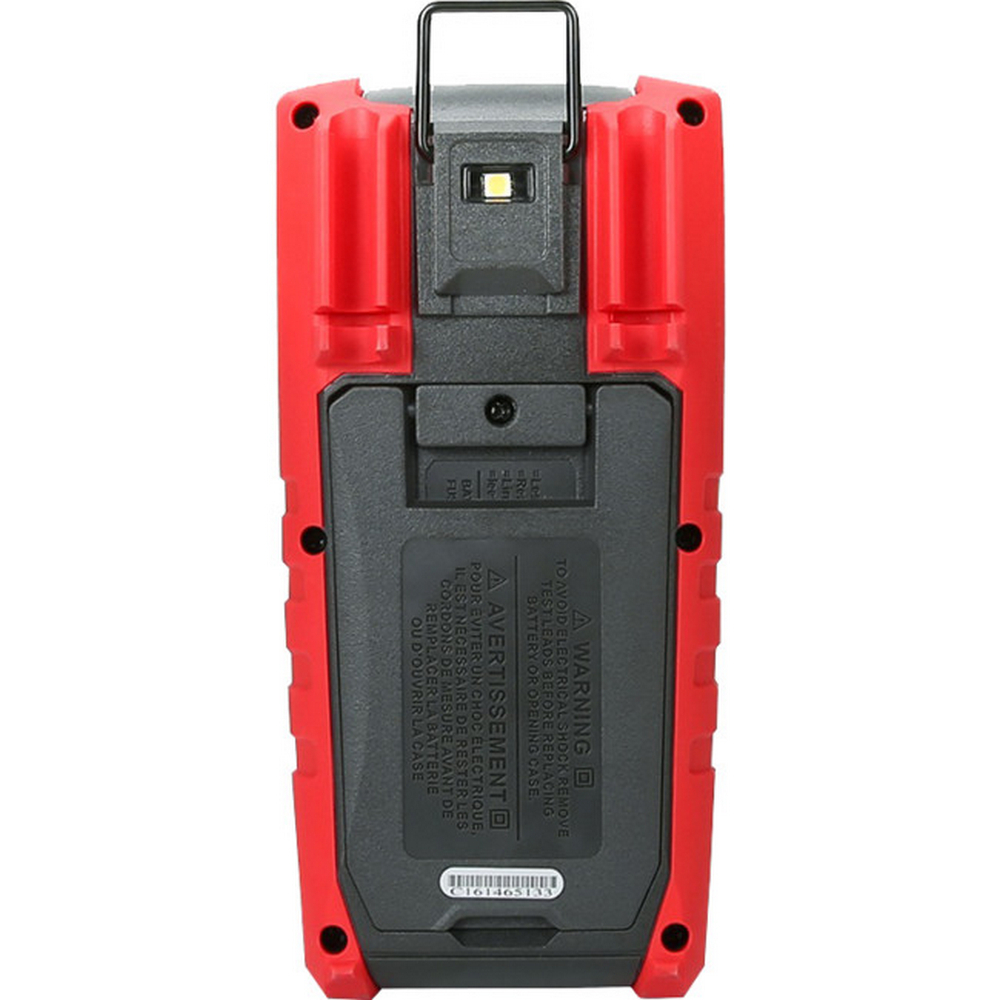

UT195DS Professional Multimeter

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. It can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution and repair etc. It is exquisitely designed and easy to operate.

Features

  • IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
  • Large 6000-count LCD screen
  • sampling rate
  • True RMS
  • ACV 750V 5kHz bandwidth
  • (AC+DC) or (AV+FREQ) and more, dual mode
  • Flashlight
  • Auto LCD backlight controlled by light sensor (can beturned off)
  • LoZ voltage test, for ghost voltage measurement
  • Motor phase sequence measurement with 2 probes
  • 20A current measurement (max 30 seconds)
  • 31 analog bar
  • Low pass filter, 1kHz 3dB attenuation

Specifications

Specifications Range Best Accuracy
Model   UT195DS
DC voltage 600mV ~ 1000V ±(0.5%+3)
AC+DC 6.000V ~ 600V ±(1.5%+4)
AC voltage  600mV ~ 750V ±(0.7%+3)
LoZ ACV 600.0V ±(2.0%+3)
DC current (A) 600.0µA ~ 20A ±(0.8%+3)
AC current (A) 600.0µA ~ 20A ±(1.0%+3)
Resistance (O) 600.0O ~ 60.00MO ±(0.8%+2)
Capacitance  6.000nF ~ 60.00mF ±(3%+5)
Frequency 60.00Hz ~ 40.00MHz ±(0.1%+4)
Duty ratio 0.1% ~ 99.9% ±(2.0%+5)
Peaks hold 250µs
Features
Display count   6000
Display interface (HTN)   Dual display
Measurement of digital conversion rate  times/s 5
Measurement of analogue bar conversionrate  times/s 20
Analogue bar  31 section v
True RMS   v
AC voltage frequency response   45 ~5kHz
AC current frequency response   45 ~5kHz
Low pass filter test   v (1kHz 3dB attenuation)
Diode/Continuity test   3V
Auto/Manual range v
Auto power off v
Continuity buzzer v
Low battery indication v
Data hold v
MAX/MIN v
Function selection v
Flashlight v
Auto backlight v
Working temperature 0°C ~40°C
2m drop proof v
Protection rating IP65
General Characteristics
Power supply 9V 6F22 carbon-zinc or 6LR61 alkaline battery
LCD size 66mm×51mm
Device color red and grey
Device weight 450g
Device size 206.5mm×95.5mm×61mm

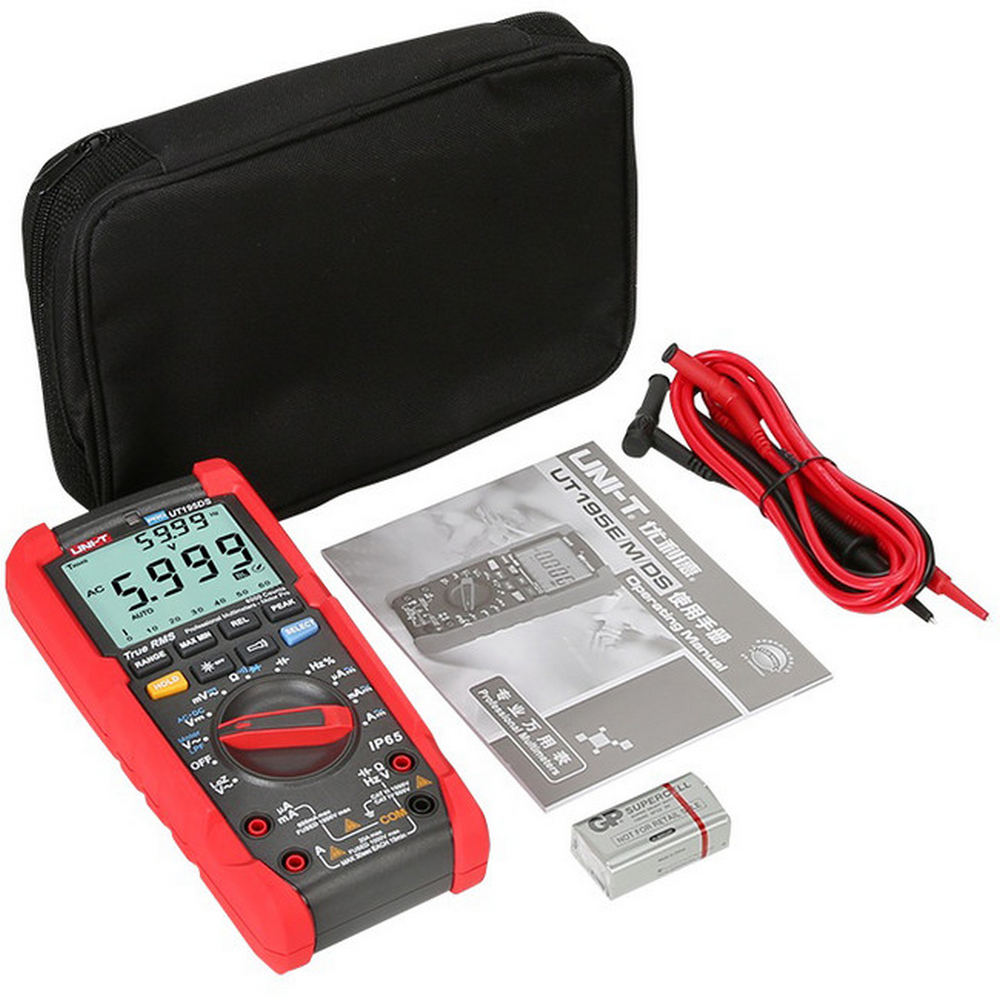

Standard accessories Test probes,battery, carrying bag
Standard individual packing Gift box, user manual, blister
Standard quantity per carton 10pcs
Standard carton size 605mm×335mm×405mm
Standard carton gross weight 11.8kg

(UT195DS)

12 Months

SKU UT195DS
Model # UT195DS
Barcode # 6935750519547
Brand UNI-T
Unit Of Measure Each
Assembled Width 1.000m
