Overview

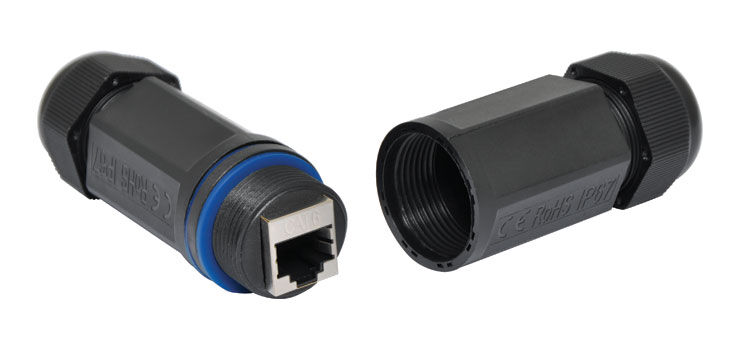

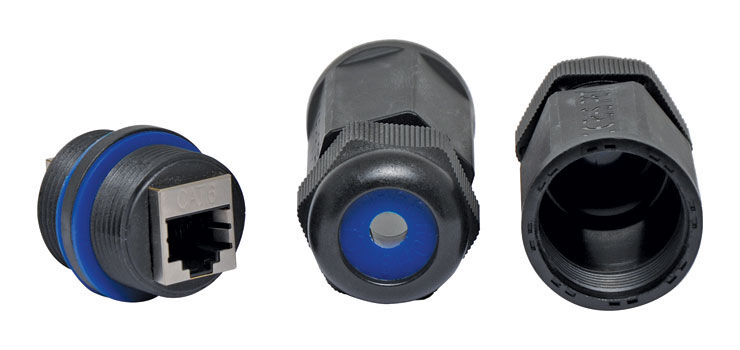

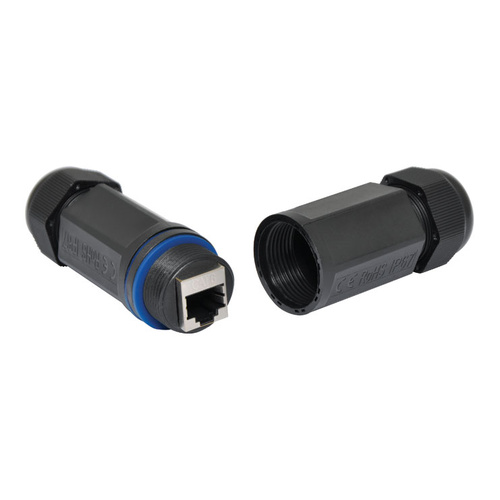

A waterproof joiner for data cables with RJ45 back to back internal connection. The blue sealing o-rings have a split allowing cables which have already been terminated, or pre-made patch leads to be threaded through the connector housing.

Specifications

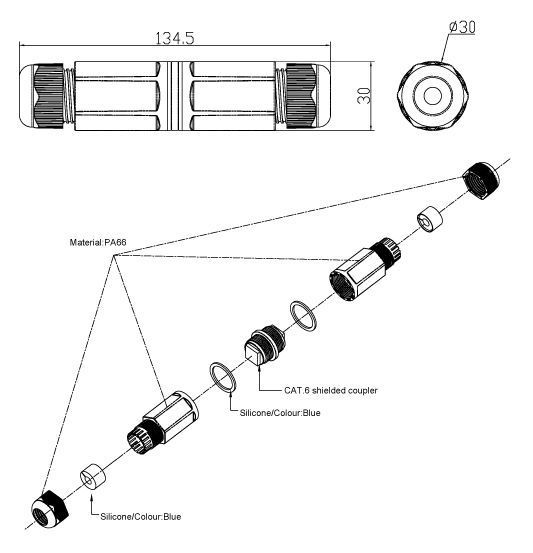

Coupler Material

• Shield: BRASS
• Plastic Housing:ABS
• RJ45 contact material& finished:
• Phospor Bronze Nickel plated
• Contact area: Gold plated

Performance

• Insertion force: 900gms for 8 contacts.
• Retention strength: 7.7kgs between jack and plug.
• Operation temperature: -20°C to 68°C

Durability

• Jack: 750 cycles plug-jack mating and unmating test,
• Insertion cycle at 20 cycles/minute max.
• Contact resistance test per 100 cycles.

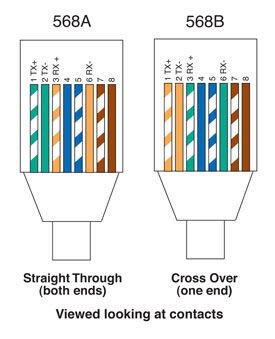

• The cat.6 performance is in compliance with the ANSI/TIA/EIA 568C standard. RoHS2.0 (2011/65/EU) Compliant

  *Specifications are subject to change without notice.
