Overview

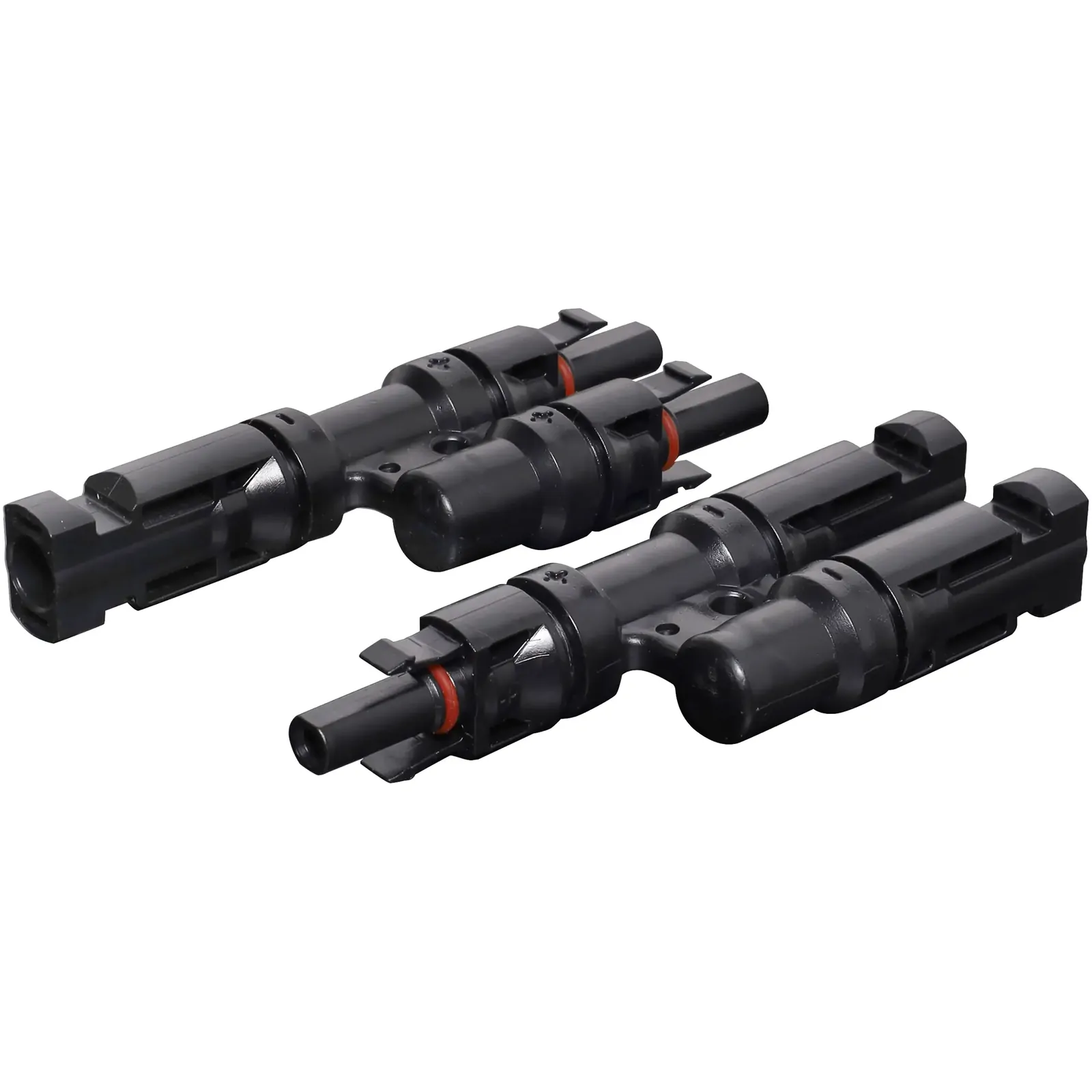

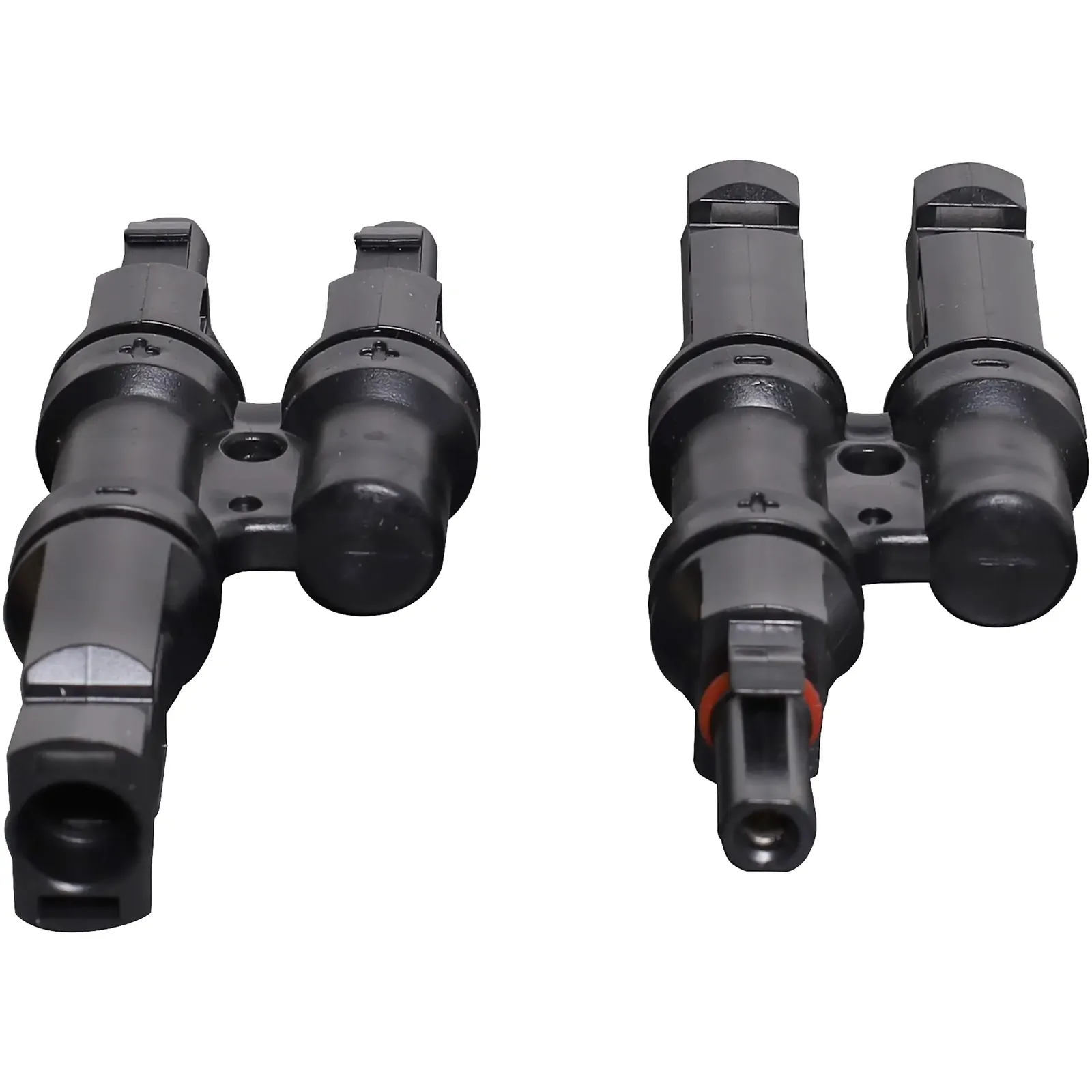

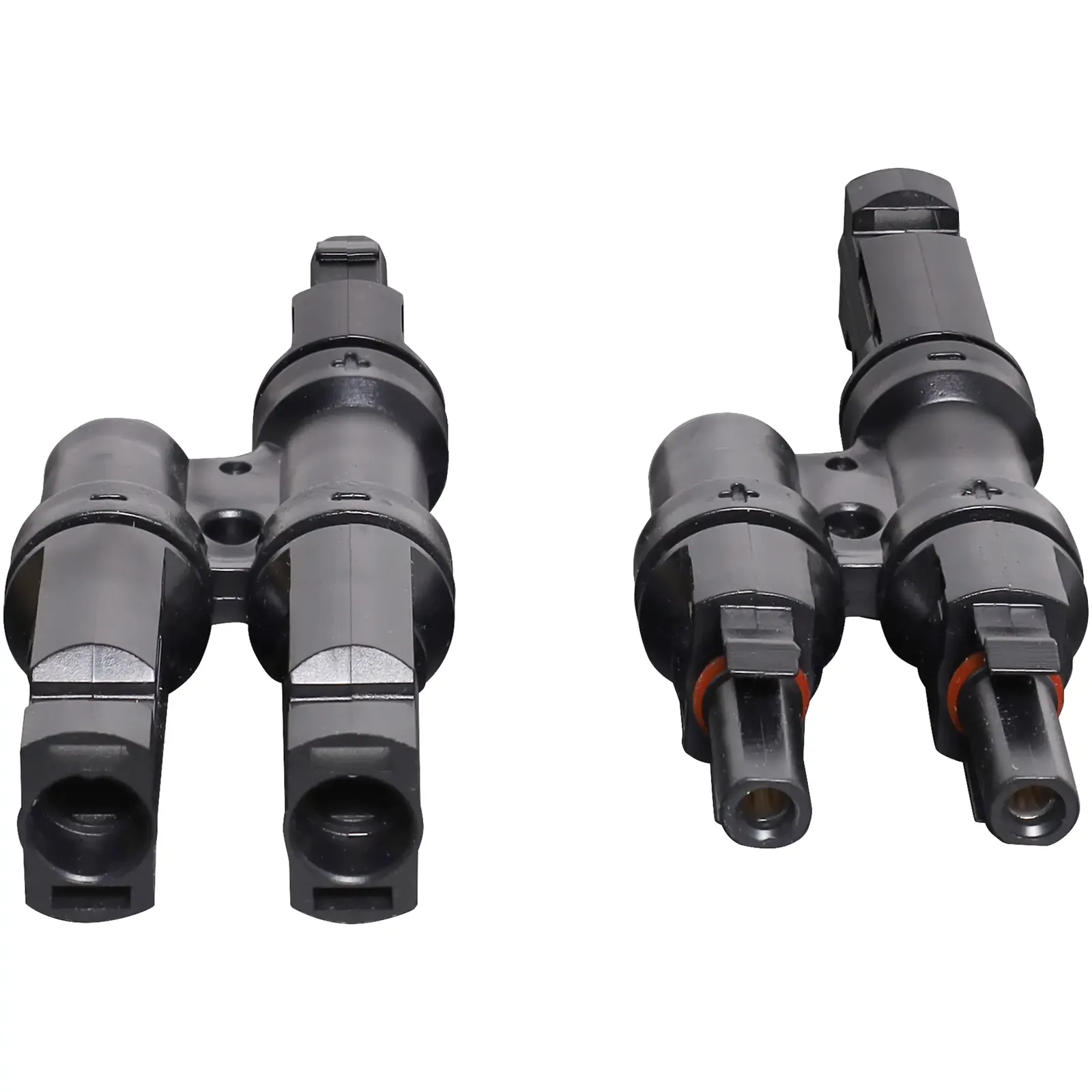

MC4 style dual line plug adaptor designed for use when daisy chaining solar (PV) panels together. Fully sealed connectors suitable for use in exposed installations.

Specifications:

  • Contact Material: Copper, Silver Plated
  • Insulation Material: PPO
  • Rated Current: 30A (2-4mm2)
  • Rated Voltage: DC 1000V TUV
  • Test Voltage: 6000V (50Hz, 1min)
  • Contact Resistance: 0.5m?
  • Protection Requirement: IP68
  • Safety Class: II
  • Flame Class: UL94 - V0
  • Insertion Force: = Withdrawal Force: >= 50N
  • Temperature Range: -40 ~ +90°C
  • Over Voltage Category/Pollution Degree: CATIII/2



(P8611A)

SKU P8611A
Model # P8611A
