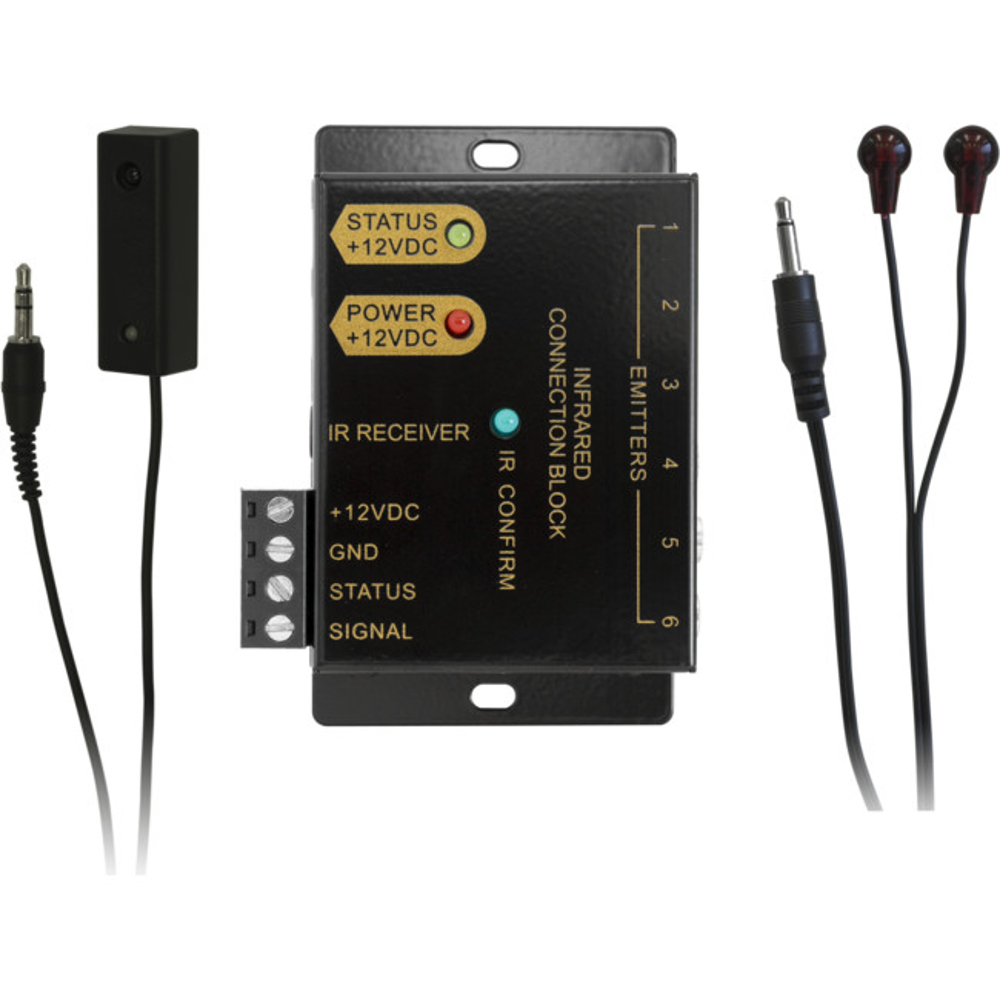

Kit includes of:

• Infrared connecting block
  Connects IR receivers, power supply and emitters together to interface the IR system to the audio/ video components.
  • Six emitter output connections
  • Convenient IR confirmation LED
  • Status power receptacle with LED indicator
  • 3 conductor 1/8" receptacle for interfacingwith many brands of free standing IR receivers
  • Compact size for mounting near audio equipment
  • 82 (W) x 60 (H) x 27 (D) mm
  • 110 g
• Mini stick infrared receiver
  Receives IR signals from a handheld IR remote control and relays this signal to the audio/video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.
  • CFL friendly - allows installation in areas with compact fluorescent lighting.
  • Blue IR confirmation LED
  • Wide band IR
  • 3 m cable with 3.5 mm stereo mini plug
• Infrared emitter
  • Round shape, with elegant & compact size
  • Transparent housing
  • 10ft cable length
  • 3.5mm standard mono plug
  • With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface
• 12 V 200 mA power supply

Specifications:

IR Receiver

• Foxtel Compatible
  • Receive Frequency Range: 34 KHz ~ 60 KHz
  • Transmit Frequencies: 38 KHz ~ 56 KHz
• Range:
  • 12 metres (40 ft) @ 38 KHz
  • 7.6 metres (25 ft) @ 56KHz
• Power: 12V DC 30mA max.
• 45 (L) x 14 (W) x 13 (H) mm
• Cord Length: 3 metres (10 ft)
• Connector Type: 3.5mm TRS mini plug
• Weight: 28 g
