Overview

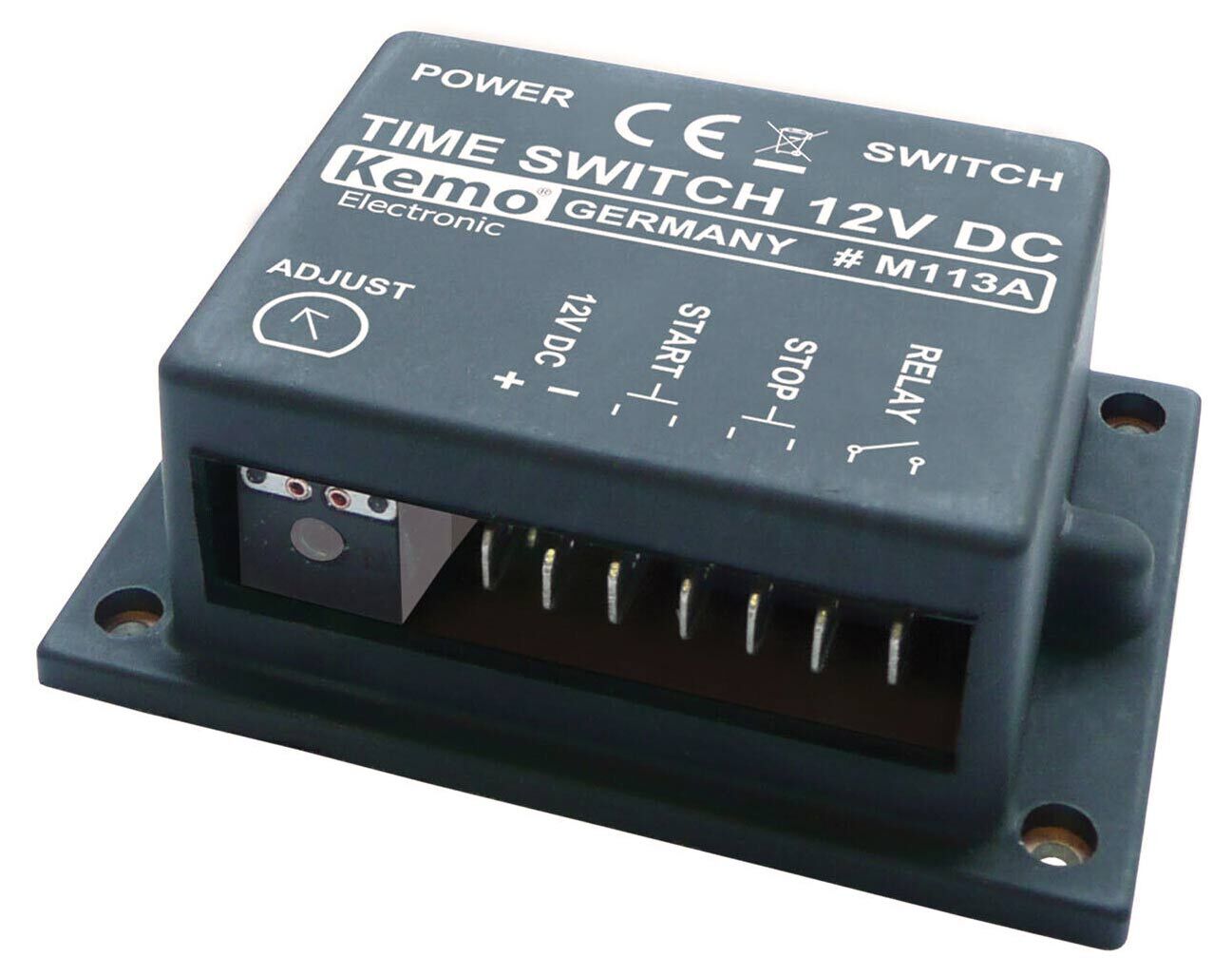

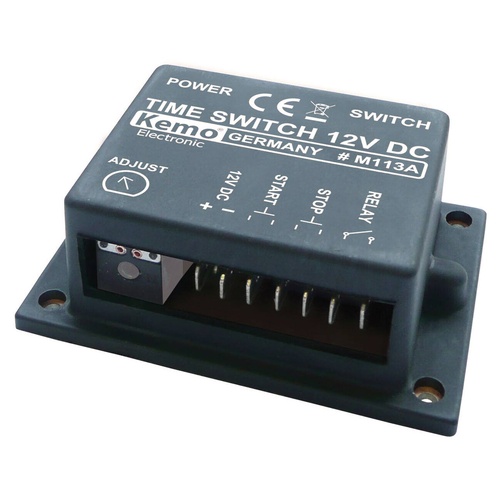

Avoid the hassle with this pre-assembled timing controller, conveniently packaged in a compact and reliable form. It's easy to connect and versatile enough to adapt to your requirements. The start and stop functions are managed by simple switching contacts, and the relay output can control devices up to 25VDC at 3A. You can effortlessly adjust timing intervals from 2 seconds to 23 minutes using a screwdriver.

Specifications

• Operating voltage: 12 - 15 V/DC
• Current consumption: approx. 20 mA / 80 mA (relay off / on)
• Adjustable time: approx. 2 sec. to 23 min., (± 30 %)
• Connection: via flat-pin plug at the module
• LED: 2 (1 x LED operating voltage, 1 x LED relay “ON”)
• Relay point: 1 x ON, max. 3A, max 25V
• Dimensions: approx. 87 x 60 x 33 mm (with flanges)

  *Specifications are subject to change without notice.
