Overview

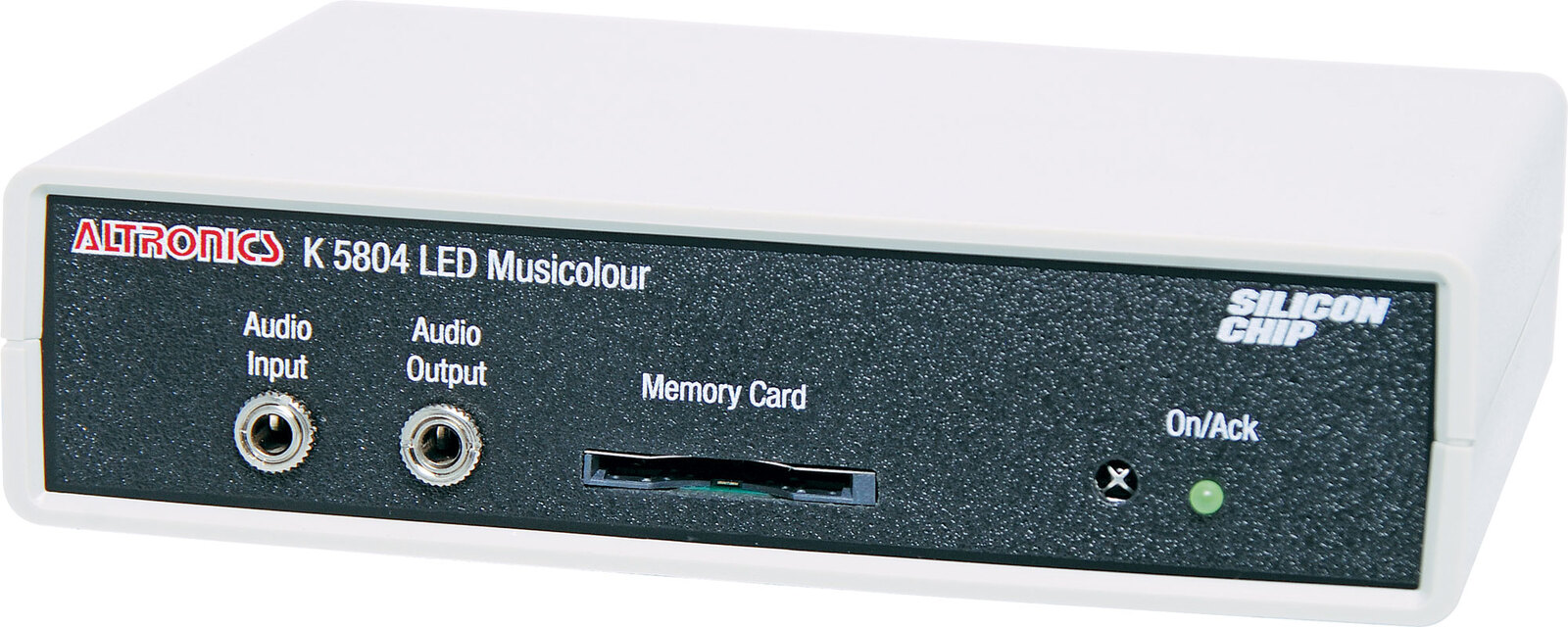

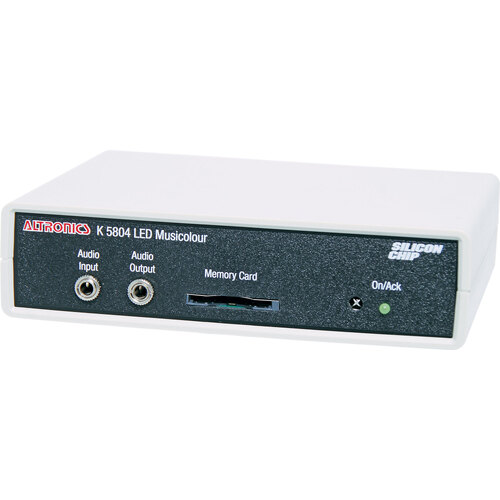

• (Silicon Chip Magazine Oct/Nov ‘12) Accepts audio input signals and drives coloured LEDs "in tune" with the music.
• 16 output channels respond to different audio frequency bands and the light brightness is in proportion to the amplitude of the frequency components.

Important Note For Kit Buyers:

• This product is supplied in component form and requires soldering, drilling, and assembly.
• We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Specifications

• LED voltage: 12-24V DC
• LED current: up to 10A total (ie, 120-240W maximum)
• Number of LED strings: up to 16 per unit
• LED control method: PWM, 200Hz, 255 brightness steps
• LED connectors: 2-pin or 4-pin male headers, 2.54mm pitch
• Audio input: 0.5-2.2V RMS nominal, 180kΩ 100pF input impedance
• Audio output: 1.1V RMS, THD+N 0.004%, signal-to-noise ratio 100dB
• Audio file support: 8-48kHz 16-bit mono or stereo WAV files
• Maximum directory depth: eight levels
• Maximum files per directory: 100
• Control method: universal infrared remote (optional)
• Dimensions: 140 x 110 x 35mm
• Supply voltage: 12-24V DC
• Current drain: ~110mA at 12V

  *Specifications are subject to change without notice.

warranty

• We offer 12 months warranty on this product from its date of purchase.
