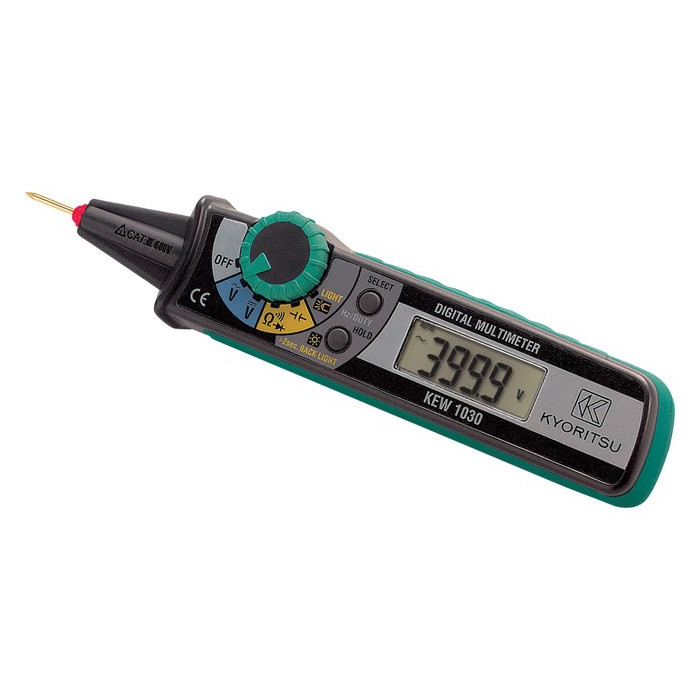

KYORITSU 1030 AC DC Continuity & Resistance Smart Pen Digital Multimeter

1030 Kyoritsu Smart Pen Digital Multimeter

High performance and Smart Pen Type digital multimeter from the world class manufacturer, Kyoritsu.

Long life LED light is of good use in dark places
Protection cover prevents unforeseen accidents
Wrapping mechanism for storage of test lead in rear side compartment
Designed with conformity to international safety standards IEC 61010-1: 2001 CAT.III 600V

FEATURES:

Compact in Size, Light in Weight and Simple in Use.
Double moulding provides comfortable and good feelingin hand.
Penlight illuminates brightly the point to be measured, even in dark place.
Backlight LCD is highly visible, even in darkness.
Unique wrapping mechanism for test lead in the rear side compartment.
Unique protection mechanism for the test prod for safety.
All ranges including Ohm range are protected against overload voltage of 600V.

SPECIFICATIONS:

AC V	4/40/400/600V (4 Rangeauto) ;5dgt (4/40V) (50/60Hz) ;5dgt (400/600V) (50/60Hz)
DC V	400m/4/40/400/600V (5 Range auto) ;5dgt(400mV~400V) ;5dgt(600V)
Ω	400/4k/40k/400k/4M/40MΩ (6 Range auto) ;5dgt (400Ω~4MΩ) ;5dgt (40MΩ)
Diode check	Test voltage approx. 0.3~1.5V
Continuity check	Buzzer sounds when resistance is 120Ω or less.
Capacitance	50n/500n/5µ/50µ/100µF (5Range auto) ;10dgt (50nF) ;5dgt (500n~50µF) ;5dgt (100µF)
Frequency	5/50/500/5k/50k/200kHz ;5dgt (Measurable input: 1.5Vrms or more)
Duty	0.1~99.9% ;5dgt (Pulse width / Pulse cycle)
Data hold	The measured value can be hold by pressing Data hold button
Battery voltage warning	When the battery voltage drops to 2.4V
Auto power-off	Built-in
Applicable standards	IEC 61010-1: 2001 CAT.III 600V IEC 61010-031 IEC 61326-1
Power source	Button type battery LR44 (SR44)1.5V × 2
Dimensions	190(L) × 39(W) × 31(D)mm
Weight	Approx. 100g (including batteries)
Accessories	Carrying case, LR44 (1.5V) ×2, Instruction manual

(1030KY)

SKU	1030KY
Model #	KEW1030
Barcode #	4560187060632
Brand	KYORITSU
Artist / Author	arunr
Shipping Weight	1.5290kg
Shipping Width	0.039m
Shipping Height	0.031m
Shipping Length	0.190m
Unit Of Measure	each
Assembled Width	0.200m

12 month warranty
