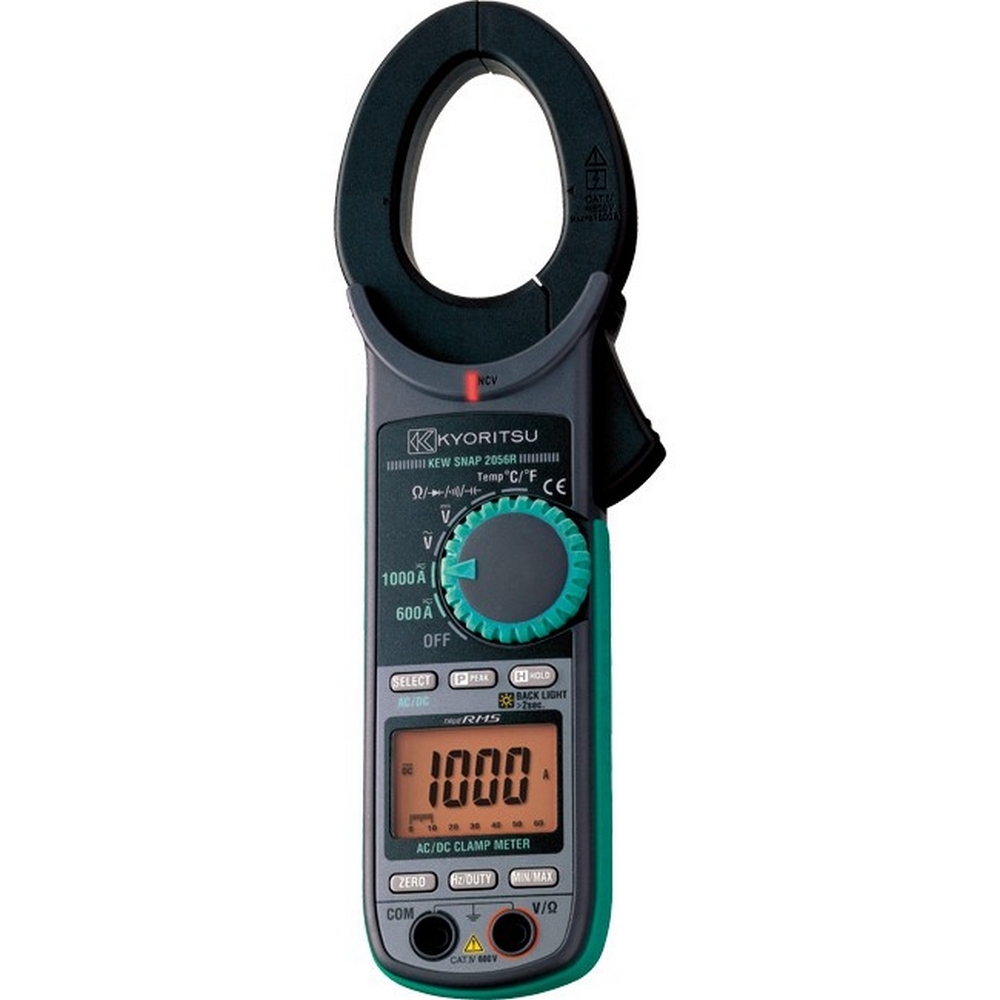

KYORITSU 2056R 1000A CATIV 1000V AC DC Digital Clamp Meter with Temperature

2056R - AC/DC Digital Clamp Meter

Equipped to measure both AC and DC currents at 1000Amps.

True RMS enables accurate readings of voltages.

Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.
CAT.IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
Thus, very useful for power distribution companies,power utilities and maintenance fields.
True RMS enables an accurate measurement (2056R).
Red LED, as "Non Contact Voltage" function, gives warning to the user on the presence of AC Voltage.
Double molding gives comfortable feeling in palm.
6039 counts with Bar Graph display.
MIN/MAX function enables to keep easily min & max value during measurement.

AC A	0~600.0/1000A
	(50/60Hz)
	(40~500Hz)
DC A	0~600.0/1000A
DC A	lusmn;5dgt
AC V	6/60/600V
	Auto Ranging
	(50/60Hz)
	(40~400Hz)
DC V	600m/6/60/600V
	Auto Ranging
	lusmn;3dgt
Ω	600/6k/60k/600k/6M/60MΩ (Auto Ranging)
Ω	(600~6M) / ±5%rdg±8dgt (60M)
Continuity buzzer	Buzzer Sounds at 100Ω
Frequency/DUTY	10/100/1k/10kHz (Auto Ranging) / 0.1~99.9%
Temperature	-50ºC ~ +300ºC (With the use of Temperature probe 8216)
Conductor Size	Ø40mm
Withstand Voltage	6880V AC for 5 seconds
Safety Standard	IEC 61010-1 CAT.IV 600V,
	IEC 61010-031,
	IEC 61010-2-032,
	IEC 61326
Power Source	R03 (1.5V) (AAA) × 2
Dimensions	254(L) × 82(W) × 36(D)mm
Weight	310g
Accessories	7066 (Test Lead)
	9094 (Carrying Case)
	Instruction Manual
Option	8216 (Temperature Probe)
