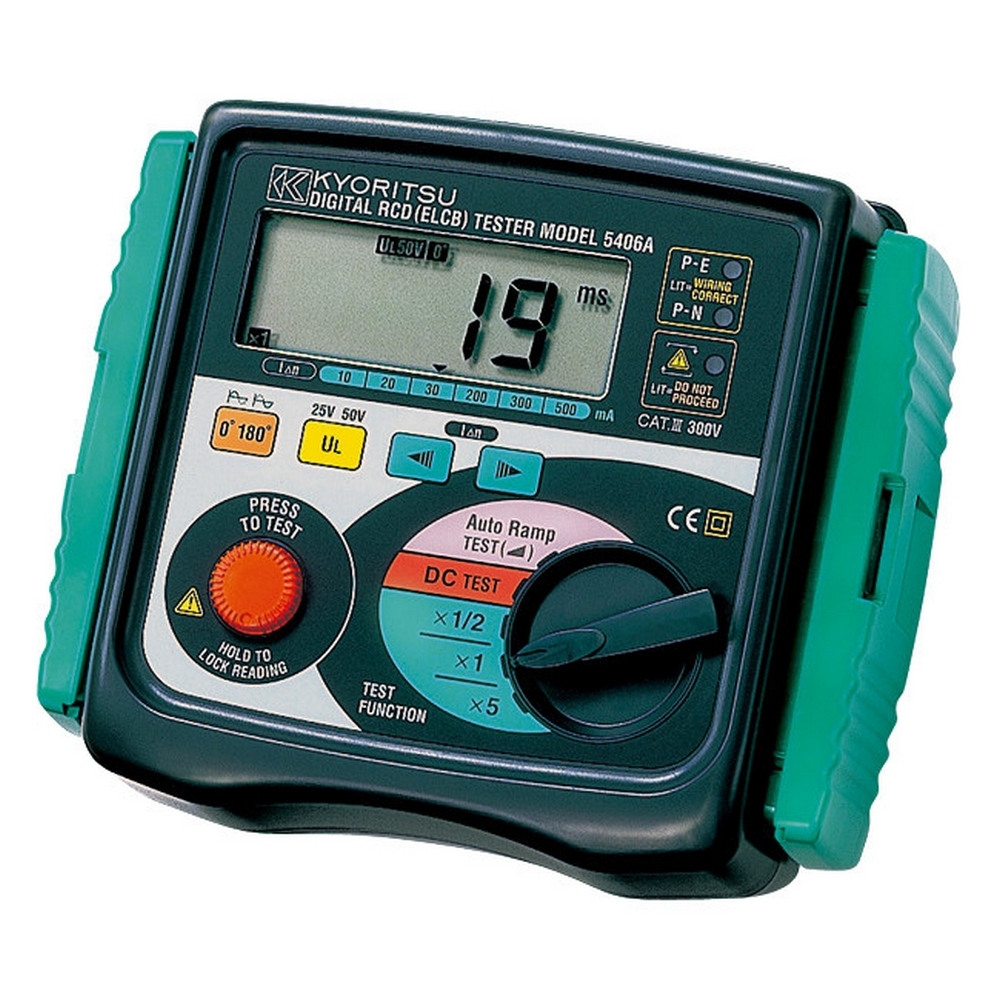

KYORITSU 5406A Large Display Digital RCD ELCB Tester

RCD TESTER

Custom microprocessor controlled for highest accuracy and reliability.
3 LEDs for checking correct wiring status
0 and 180 degree phase angle switch permits quick tests and consistent readings.
Digital read-out of tripping time.
Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
Large custom digital display readout.
Visual indication of reversed phase and neutral wiringat socket.
Designed to IP54 Rating
Complies with IEC 61557

Rated Tripping Current	\|10/20/30/200/300/500mA
Fault Condition Settings	\|x 1/2, x 1, x 5, x DC, \|AUTO RAMP
Trip Current Duration	\|1000ms, 200ms (x5)
Lowest Resolution	\|1ms
Trip Time Accuracy	\|±0.6%rdg±4dgt
Operating Voltage	\|230V+10%-15% \|(195V - 253V) 50Hz
Safety Standard	\|IEC 61557-1,-6 \|IEC 61010-1 CAT III 300V \|IEC 61010-2-031 Pollution Degree 2
Withstand Voltage	\|3700V AC for 1 minute
IP Rating	\|IEC 60529-IP54
Dimensions	\|186(L) x 167(W) x 89(D)mm
Weight	\|800g approx.
Accessories	\|Molded plug test leads \|Pouch for test leads \|Shoulder Strap \|Instruction Manual
Optional	\|7121B (Simplified measurement probe)
