OVERVIEW

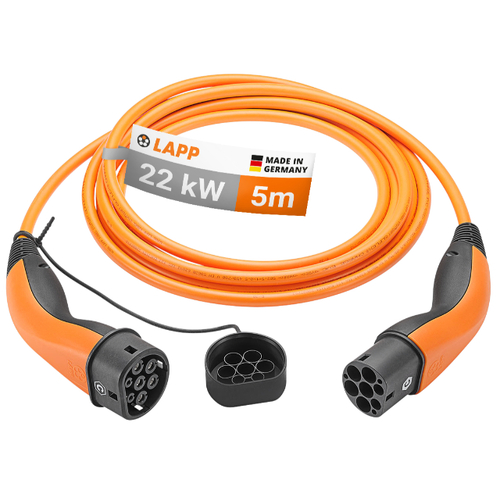

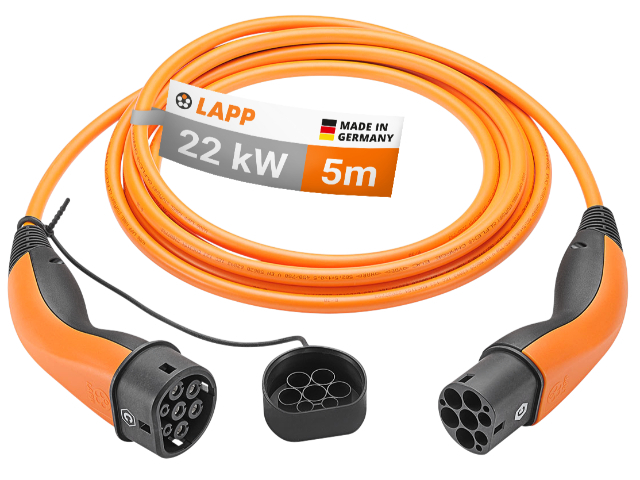

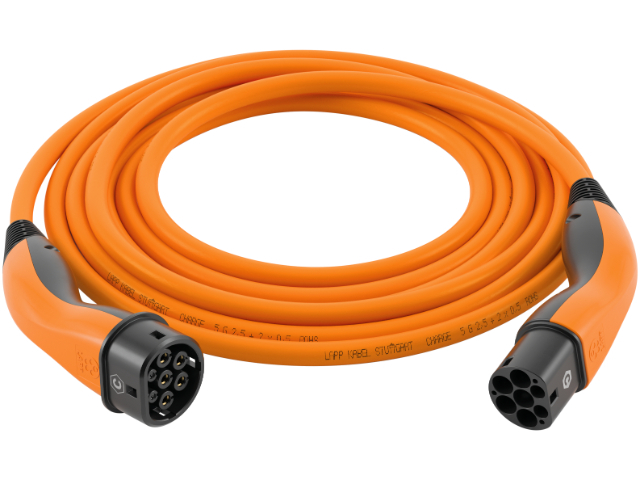

LAPP Type 2 standard charging cables connect your EV to the charging station, charging pole or wallbox - for easy charging at home or on the road. Simply connect the coupling of the cable to the car and the plug to the power source.The charging process is automatically started and finished by the on-board electronics.LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

FEATURES

• The Type 2 charging cable from LAPP allows easy and fast charging with up to 22 kW at a public or private charging station or wallbox.

• Thanks to the 3-phase connection (32 A), the cable charges particularly quickly at a nominal voltage of 440 V (AC).

• Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability

• The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges.

• Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C

• The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.

• Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)

SPECIFICATIONS

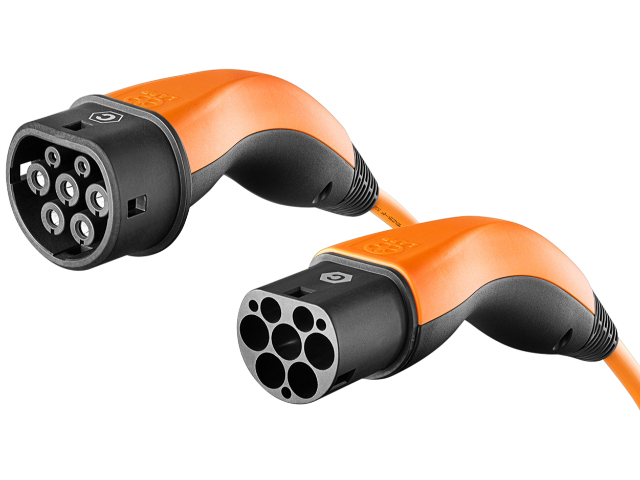

• Connection, type: type 2 male plug

• Connection 2, type: type 2 female plug

• Loading capacity up to: 22 kW

• Charging mode: Mode 3

• max current capacity: 32

• Rated voltage: 440 V (AC)

• Cable length: 5 m

• protection class: IP55
