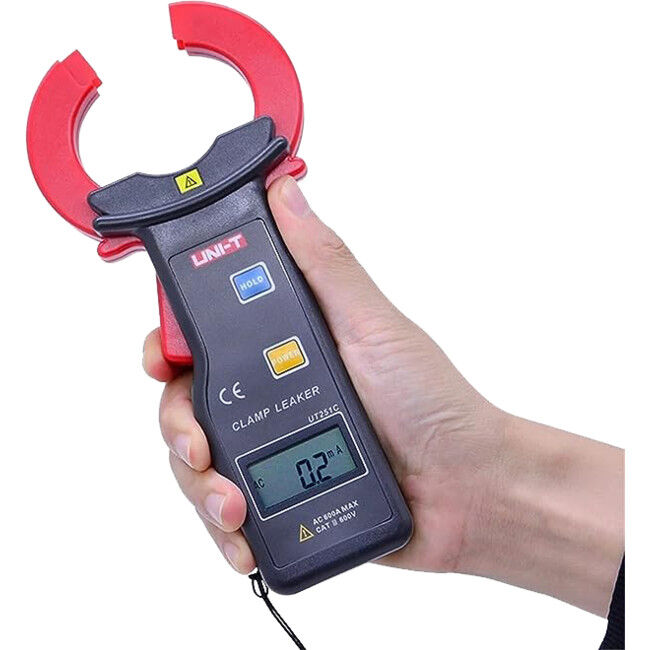

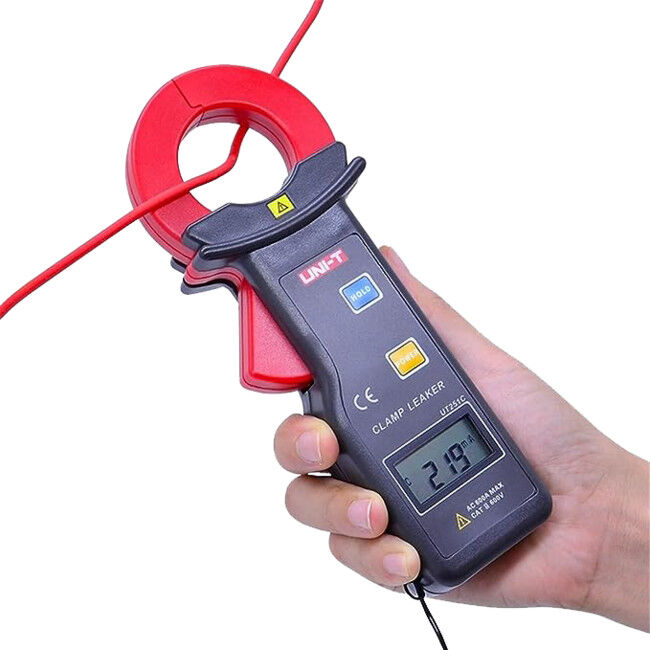

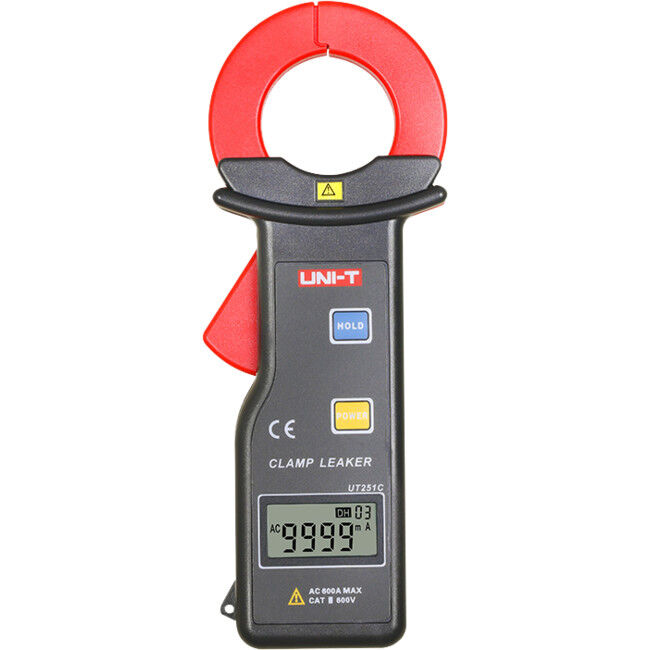

LEAKAGE CURRENT CLAMP METER

UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high-resolution meters are great for applications such as checking leakage current for motors, home appliances, and other electrical equipment up to 600A.

Features

4-digit LCD digital display, 10000 display count
Auto range, 2/s sampling rate
Peaks hold
Store 99 sets of data
RS-232 interface
Data hold
Auto power off
Overload indication, low battery indication

Package contents

UT251C clamp meter
Data uploading software disc
RS232 USB cable
9V Battery
User manual
Pouch

Specifications

Specifications	Range	UT251A	UT251C
Leakage current (A)	0.001mA~60A	±(1.5%+5)	±(1.5%+5)
	60A~199.9A		±(2%+5)
	200A~300A		±(3%+5)
	300A~600A		±(4%+5)
	Voltage (Freq.) 0V~600V (50Hz/60Hz)	Yes	Yes
	Resolution	1uA	1mA
Features
Display	4 digits LCD	Yes	Yes
Clamp size		25mm x 30mm	35mm x 40mm
Auto range		Yes	Yes
RS-232		Yes	Yes
Data storage		99	99
Peak/Data hold		Yes	Yes
Overload protection	OL	Yes	Yes
Auto power off	5 minutes	Yes	Yes
Low battery indication		≤7.2V	≤7.2V
Over-range display	OL	Yes	Yes
Test mode	Clamp CT, integral mode	Yes	Yes
General Characteristics
Power	9V battery (6F22)
Display	32mm x 15mm
Product color	Red and grey
Product net weight	120g
Product size	175mm x 70mm x 38mm
Standard accessories	Battery, RS-232 interface cable, PC software CD
Standard individual packing	Gift box, carrying bag, English manual, tool box
Standard quantity per carton	6pcs
Standard carton measurement	385mm x 290mm x 115mm
Standard carton gross weight	3.3kg
