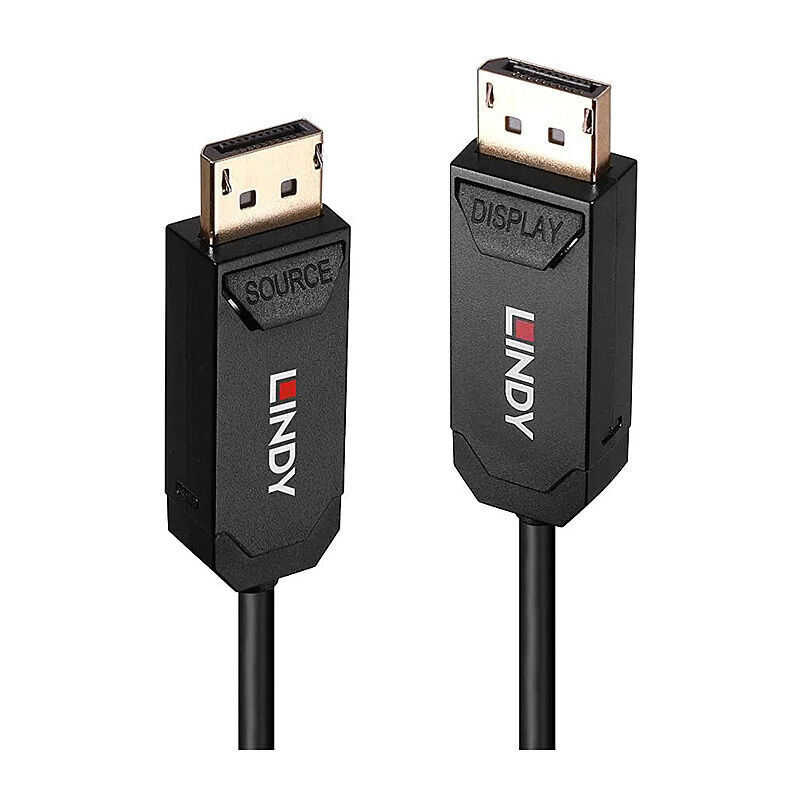

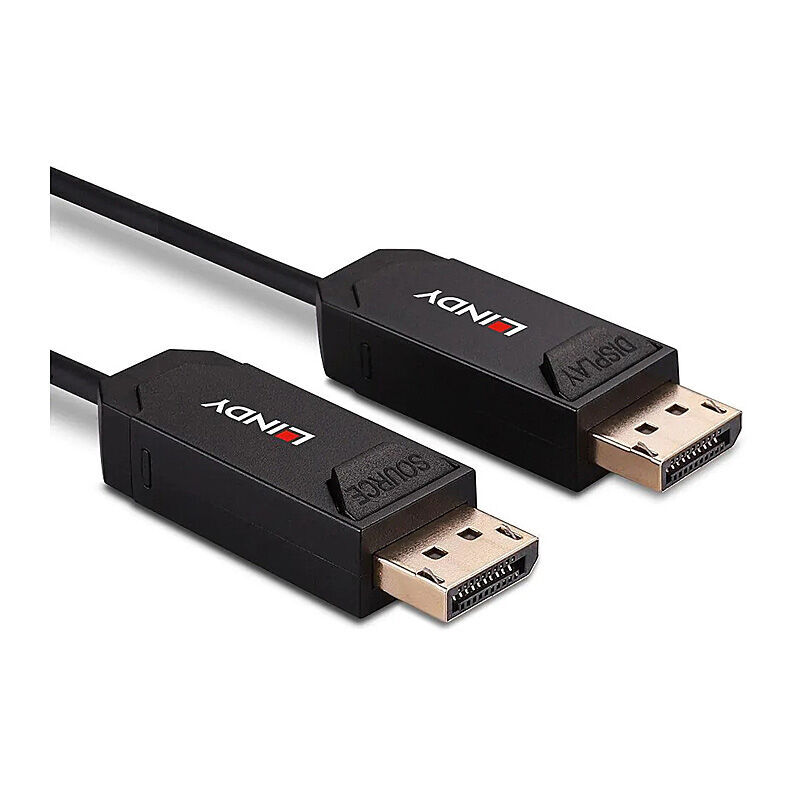

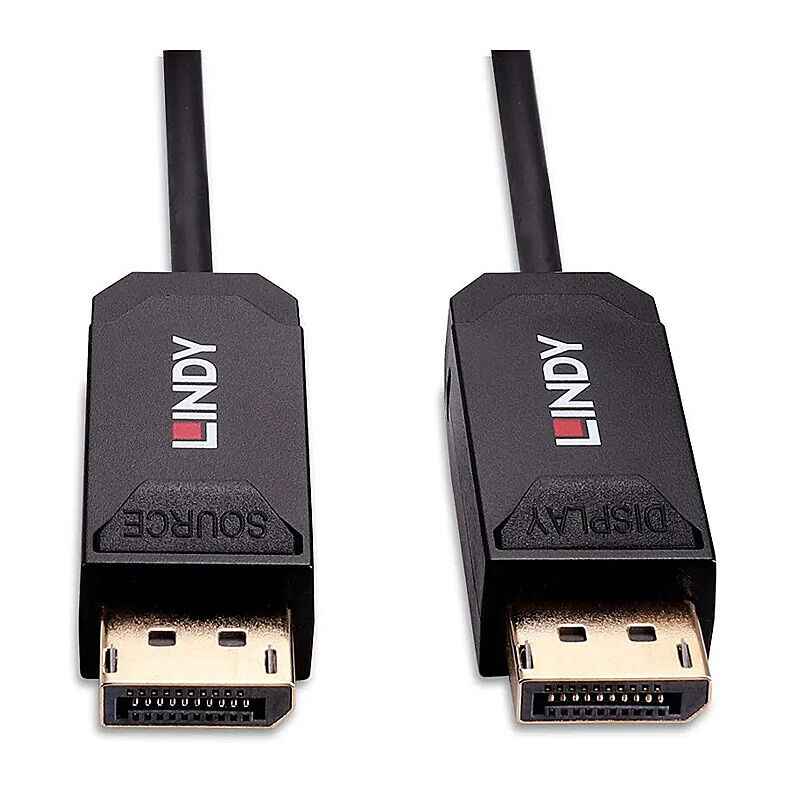

Lindy 10m Fibre Optic Hybrid DisplayPort 2.0 UHBR10 Cable

Features

  • Combines copper and fibre optic cable for a hybrid, long distance DisplayPort connectivity solution
  • Supports resolutions up to 4K@144Hz, 8K@60Hz
  • DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)
  • Flexible and robust cable structure for any kind of installations
  • 2-Year Warranty

Specifications

Connectors

  • Connector A: DisplayPort (Male)
  • Connector B: DisplayPort (Male)
  • Housing Material: PVC
  • Connector Plating: Gold Plated
  • Pin Construction: Gold Plated
  • Pin Plating: Gold Plated
  • Dimensions (approx.) WxDxH: DP Connector: 19.8x47.8x12mm (0.78x1.88x0.47in)

Cable Construction

  • Length: 10m (32.81ft)
  • Standard: DisplayPort 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.0mm (0.16in)
  • Jacket Material: PVC
  • Conductor Material: Fiber and Copper
  • Conductor Gauge: 24AWG
  • Shielding: -

Specifications

  • Supported Bandwidth: 40Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@144Hz 4:4:4 10bit
  • Nominal Attenuation: ≤10dB/km@850nm, ≤8dB/km@1300nm
  • Minimum Bend Radius: 50mm (1.97in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Carton Box
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

*P.O. Box Deliveries are not available*

(38520)

SKU 38520
Model # 38520
Brand Lindy
