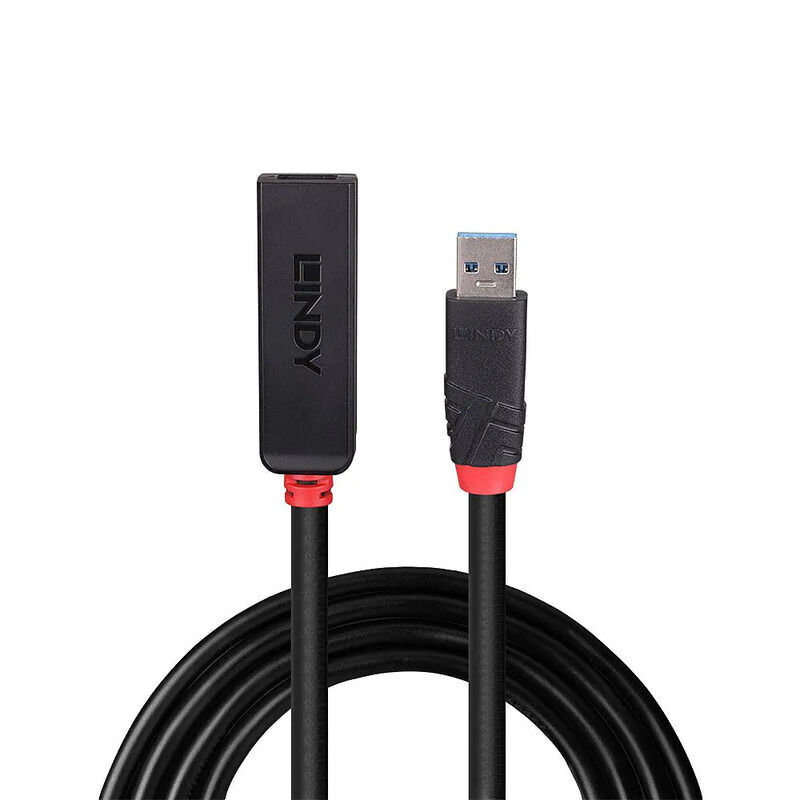

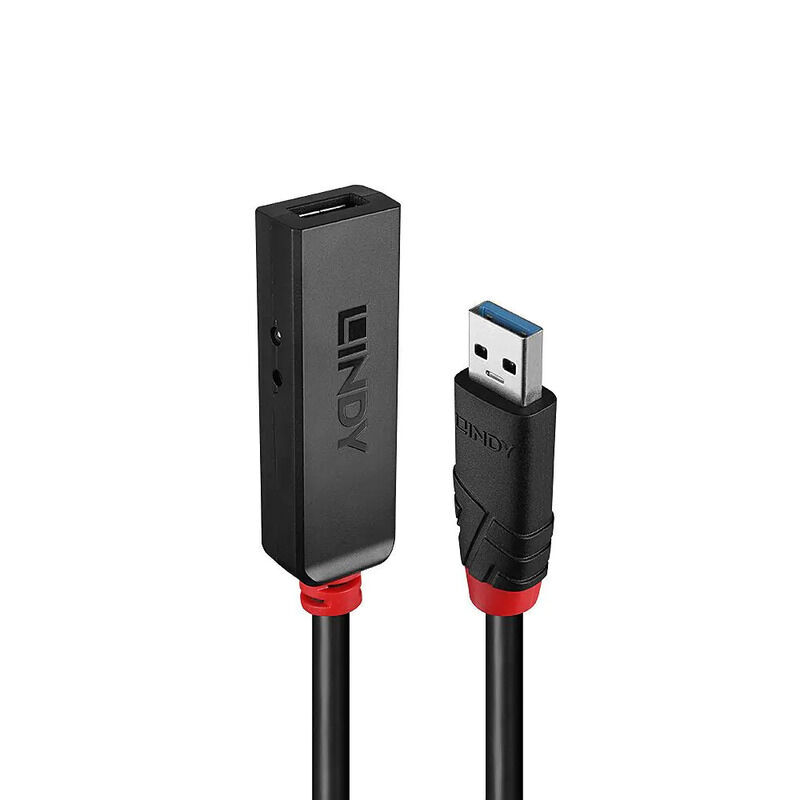

LINDY 10m USB 3.0 Active Extension Slim

Features

  • 10 metre USB 3.0 Active Extension Repeater Cable
  • Supports transfer rates up to 5Gbps
  • For even greater distances simply connect up to 5 cables in series

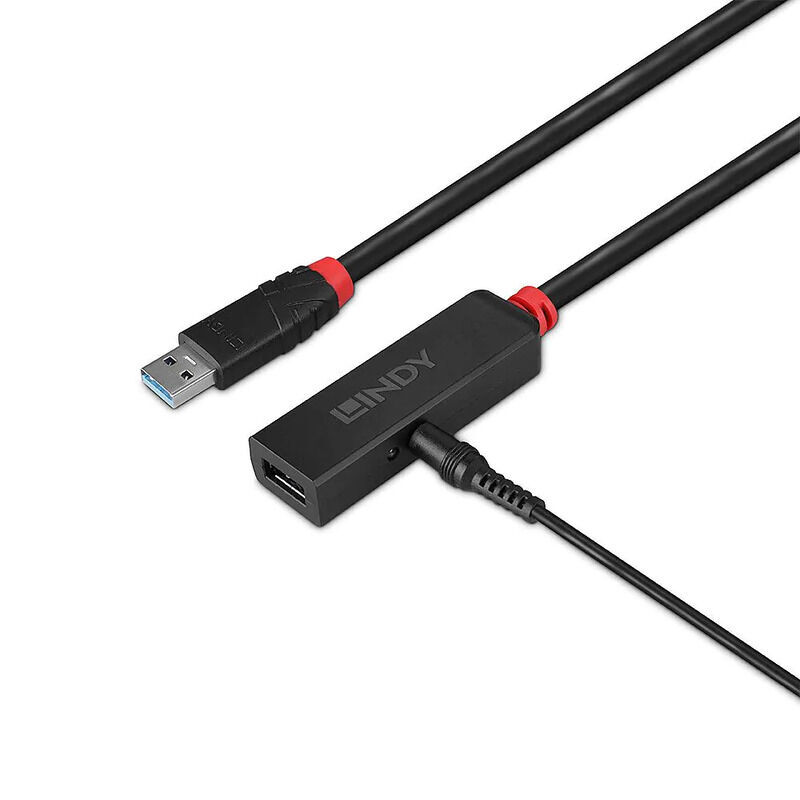

  • USB Power Adapter cable included
  • 2 year warranty

Specifications

Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: 2.5/0.7mm DC
  • Connector Housing Material: PVC
  • Connector Plating: Nickel plated
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • USB A Male: 41.1x16.5x9.5mm (1.61x0.64x0.37in)
    • USB A Female: 67.5x22x13.5mm (2.65x0.86x0.53in)

Cable Construction

  • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6.5mm (0.26in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24AWG+24AWG+20AWG
  • Shielding: 75% Tinned Copper

Specifications

  • Supported Bandwidth: 5 Gbps
  • Nominal Attenuation: <23.0Db@2.5GHz (USB 3.0), <5.8Db@200MHz (USB 2.0)
  • Minimum Bend Radius: 80mm (3.14in)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 324x335mm (12.76x13.19in)
  • Net Weight: 0.82kg (1.8lb)
  • Gross Weight: 0.86kg (1.9lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65

(43403)

SKU 43403
Model # 43403
Barcode # 4002888434034
Brand Lindy
