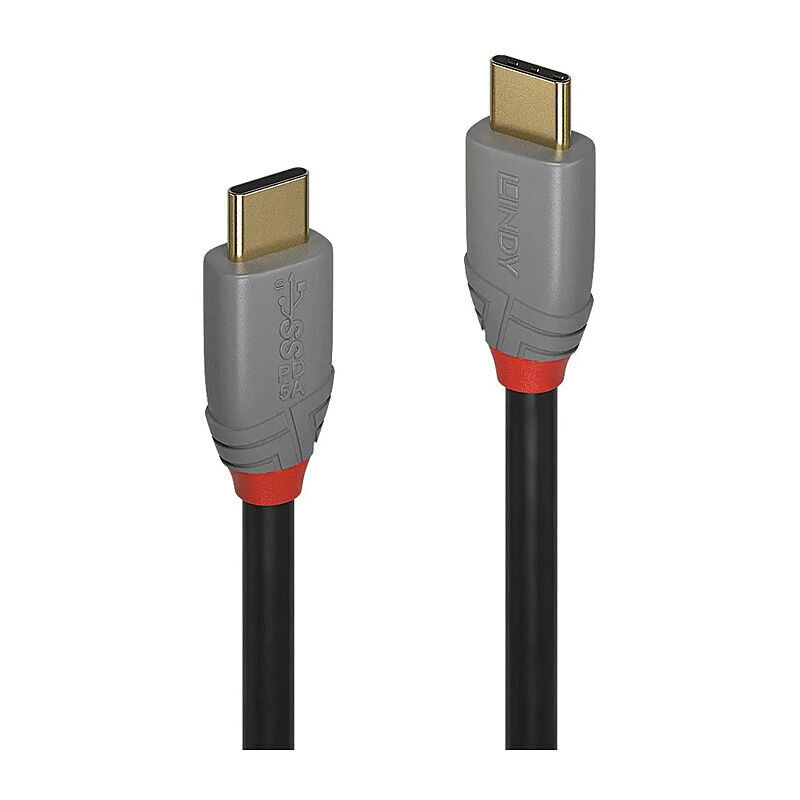

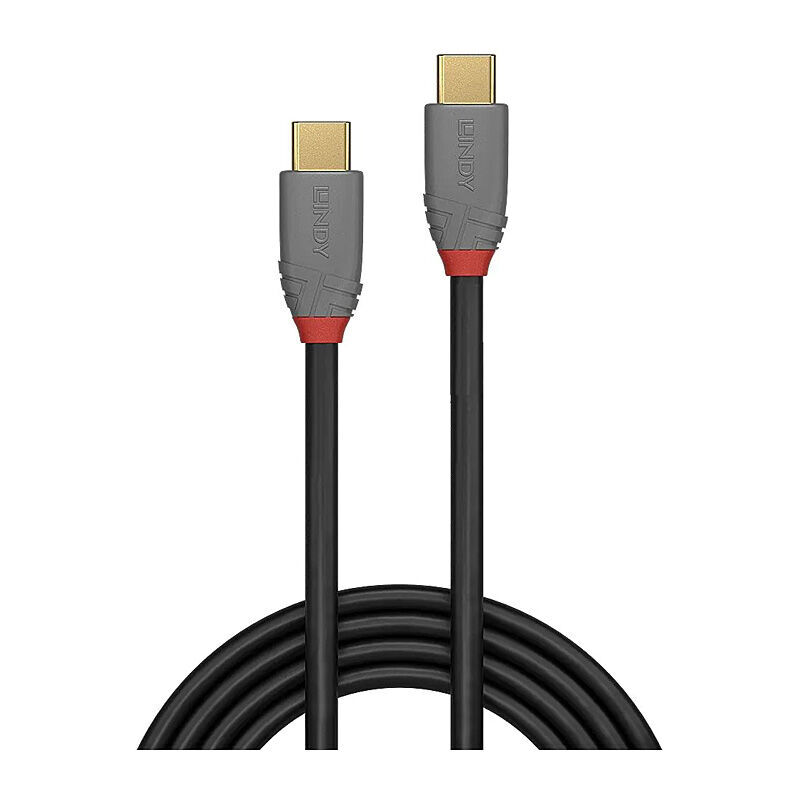

Lindy 2m USB 3.2 Type C to C Cable / 20Gbps/ 5A/ PD/ Anthra Line

Features

  • Professional choice USB 3.2 Gen 2x2 Type C to C, 5A (100W), cable for commercial and high performance AV and IT installations
  • SuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps
  • Robust PVC housing, 24K gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper conductors
  • 2 year warranty

Specifications

Connectors

  • Connector A: USB 3.2 Type C Male
  • Connector B: USB 3.2 Type C Male
  • Housing Material: PVC
  • Connector Plating: 24K Gold plated
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold plated
  • Dimensions (approx.) WxDxH: 12.7x30.8x7.3mm (0.5x1.21x0.29in)

Cable Construction

  • Standard: USB 3.2
  • Colour: Black
  • Type: Round Jacket
  • Diameter: 4.8mm (0.19in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/30/32AWG
  • Shielding: Tinned Copper Braid 85%

Specifications

  • Supported Bandwidth: 20Gbps
  • Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
  • Minimum Bend Radius: 48mm (1.89in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: RoHS, REACH & UL

*P.O. Box Deliveries are not available*

(36903)

SKU 36903
Model # 36903
Barcode # 4002888369039
Brand Lindy
