Features

• Extracts stereo or multi-channel audio from an HDMI source
• 4K@60Hz video pass-through, with additional support for HDR
• Supports both stereo and multi-channel audio up to 7.1
• CEC and High Bit Rate Audio Pass-through
• 2 year warranty

Specifications

• Video Interface: HDMI
• Interface Standard: 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution:
• 3840x2160@60Hz 4:4:4 8bit
• 3840x2160@60Hz 4:2:2 12bit
• HDCP Support: 2.2 / 1.4
• Audio Interface:
• SPDIF
• Analogue L/R
• Chipset: IT66321
• Supported Audio:
• HDMI (Pass-Through): Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, Dolby DigitalPlus, DTS-HD Master Audio, Dolby TrueHD
• Optical: Dolby Digital 2/5.1CH, DTS Audio 2/5.1CH, DTS Audio 2CH, Dolby Digital 2CH
• 3.5mm: Analogue Stereo 2CH
• Maximum Supported Audio Sample Rate: 24-bit/192kHz
• Input Impedance: 1K
• Output Impedance: 10K?
• Output Voltage: 5V 1A
• Frequency Response: <3db; 20h~20kh
• Signal to Noise Ratio: 85db
• Special Features: CEC Pass-through

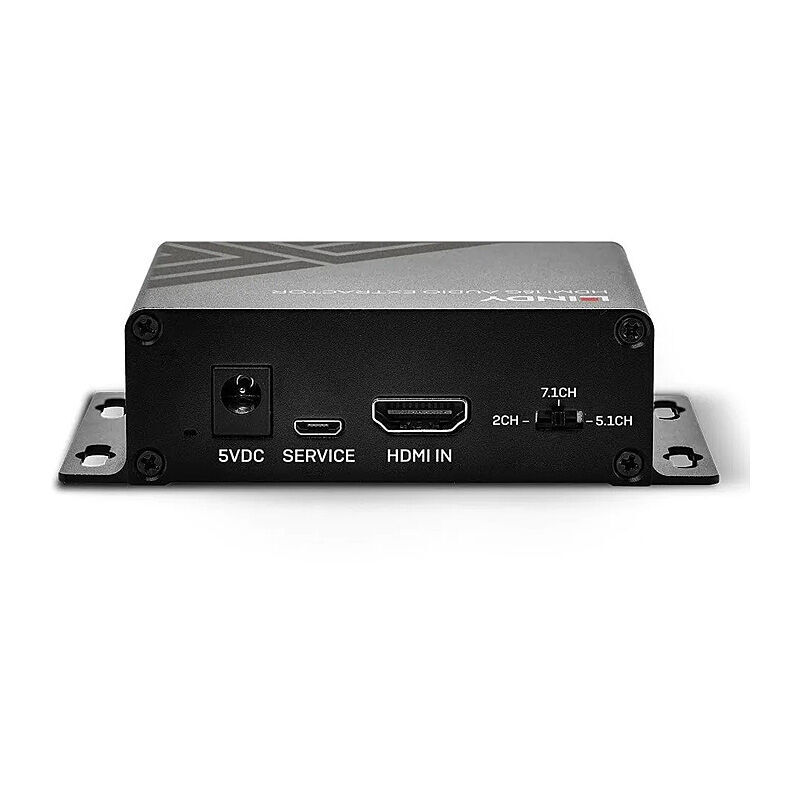

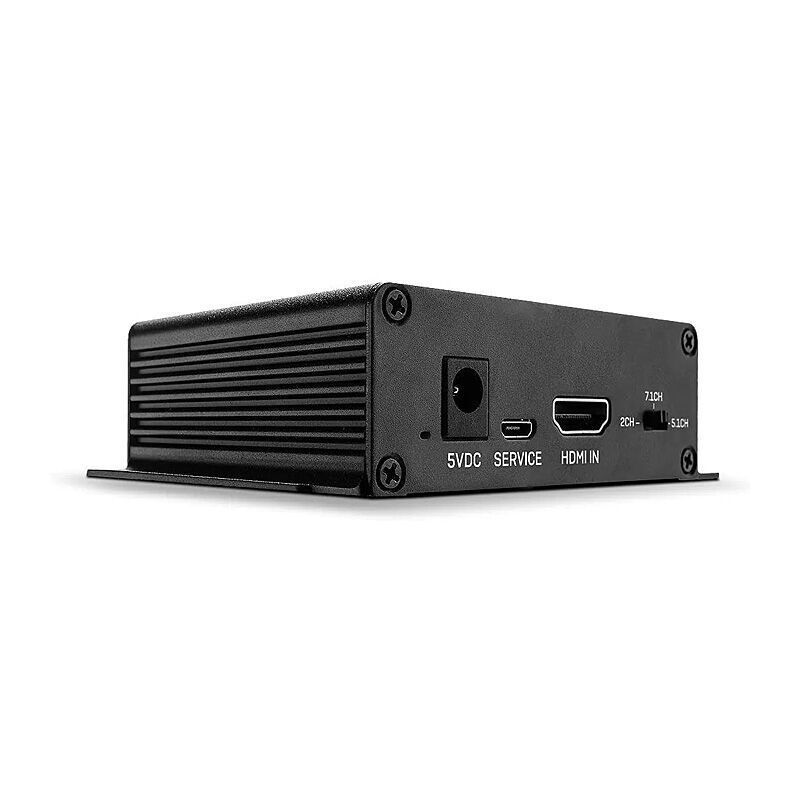

Connectors

• Input: HDMI Type A (Male)
• Output:
• HDMI Type A (Female)
• SPDIF (Female)
• Analogue L/R (Female)
• USB Micro-B (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 104.4x64x28.3mm (4.11x2.52x1.11in)
• Housing Material: Metal
• Net Weight: 0.118kg (0.26lb)
• Operating Temperature: -5°C - 35°C (23°F - 95°F)
• Storage Temperature: -5°C - 35°C (23°F - 95°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 257x56x150mm (10.12x2.2x5.91in)
• Gross Weight: 0.357kg (0.79lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65
