Features

• Distribute HDMI signals 1-1 or 1-many as part of a networked installation
• Supports resolutions up to 1920x1080@60Hz
• Supports IR and HDMI loop-out port on the transmitter
• Add additional Receivers (38399) to the network for larger scale distribution
• 2 year warranty

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 1.3
• Supported Bandwidth: 6.75 Gbps
• Maximum Distance: 150m (492.12ft)
• Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
• HDCP Support: 1.4
• EDID: Pass Through
• Supported Audio: 2 Channel PCM
• IR Support: 20-60 kHz
• Transmission Protocol: IP (H.265 video compression)
• Transmission Medium: 1 x Cat.5e/6
• Chipset: SSC337DE - SSD203D
• Special Features: HDMI Loop Out port

Connectors

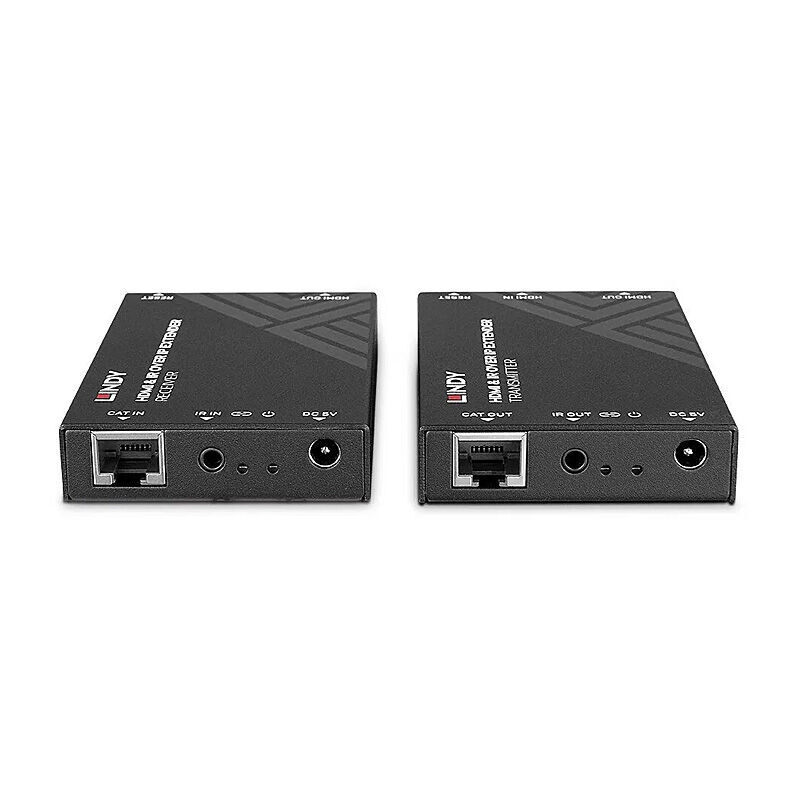

• Transmitter Input: HDMI (Female)
• Transmitter Output: HDMI (Female), RJ45 (Female), IR (Female)
• Receiver Input: RJ45 (Female), IR (Female)
• Receiver Ouput: HDMI (Female)
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxHxD: 88x61.2x16.5mm (3.46x2.41x0.65in) per unit
• Housing Material: Metal
• Nett Weight: 0.53kg (1.17lb)
• Operating Temperature: -10°C - 50°C (14°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
• Gross Weight: 0.73kg (1.61lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
